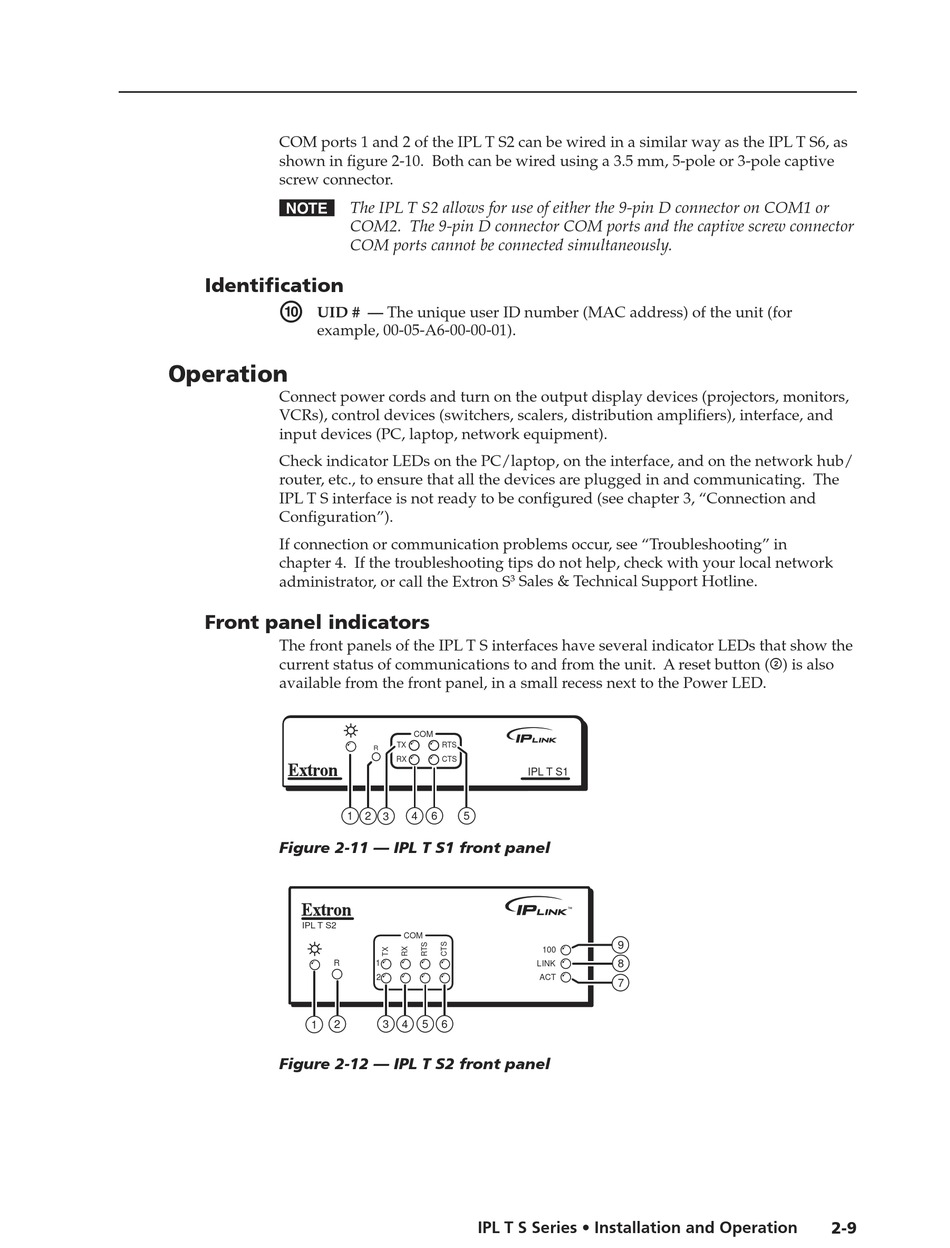

COM ports 1 and 2 of the IPL T S2 can be wired in a similar way as the IPL T S6, as
shown in figure 2-10. Both can be wired using a 3.5 mm, 5-pole or 3-pole captive
screw connector.
N

Identification

j
UID # — The unique user ID number (MAC address) of the unit (for
example, 00-05-A6-00-00-01).

Operation

Connect power cords and turn on the output display devices (projectors, monitors,
VCRs), control devices (switchers, scalers, distribution amplifiers), interface, and
input devices (PC, laptop, network equipment).
Check indicator LEDs on the PC/laptop, on the interface, and on the network hub/
router, etc., to ensure that all the devices are plugged in and communicating. The
IPL T S interface is not ready to be configured (see chapter 3, "Connection and
Configuration").
If connection or communication problems occur, see "Troubleshooting" in
chapter 4. If the troubleshooting tips do not help, check with your local network
administrator, or call the Extron S

Front panel indicators

The front panels of the IPL T S interfaces have several indicator LEDs that show the
current status of communications to and from the unit. A reset button (b) is also
available from the front panel, in a small recess next to the Power LED.
Figure 2-11 — IPL T S1 front panel
IPL T S2
R
2
1
Figure 2-12 — IPL T S2 front panel
The IPL T S2 allows for use of either the 9-pin D connector on COM1 or
COM2. The 9-pin D connector COM ports and the captive screw connector
COM ports cannot be connected simultaneously.
Sales & Technical Support Hotline.
3
COM
TX RTS
R
RX CTS
1 2 3 4 6 5
COM
1
2
3 4 5 6
IPL T S Series • Installation and Operation
IPL T S1
9
100
8
LINK
ACT
7
2-9
