TI01043K/09/EN/05.15
71300884
Compact process display unit with very low voltage drop for universal use to
display 4 to 20 mA/HART® signals
Application
• Display of 4 to 20 mA measured values or optionally up to
four of a sensor' s HART
®
process variables in all industries
• Use as primary or secondary HART

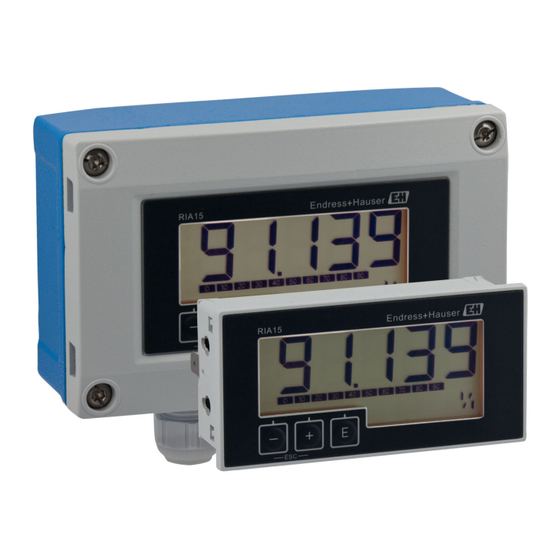

• Panel-mount housing or field housing as local display
• Scalable display value
Products
Technical Information
RIA15
Loop-powered 4 to 20 mA process display unit with
optional HART® communication
®
master
Solutions
Your benefits
• No external power supply required
• Voltage drop ≤1 V (HART
• 5-digit measured value display with 17 mm (0.67 in) digit
height with dimension and bar graph; background lighting
can be activated
• Minimal installation depth
• Easy 3-key operation for configuring the device
• International approvals
ATEX, IECEx, FM, CSA
• SIL interference freeness acc. to EN 61508
• GL marine approval
Services
®
≤1.9 V)
Advertisement
Table of Contents
Related Manuals for Endress+Hauser RIA15
Summary of Contents for Endress+Hauser RIA15
- Page 1 Products Solutions Services TI01043K/09/EN/05.15 71300884 Technical Information RIA15 Loop-powered 4 to 20 mA process display unit with optional HART® communication Compact process display unit with very low voltage drop for universal use to display 4 to 20 mA/HART® signals Application Your benefits •...
-
Page 2: Function And System Design
The device can also be operated with backlighting where necessary. In such cases pay attention to the higher voltage drop. When used in conjunction with the Micropilot FMR20 radar level sensor, the RIA15 unit can also be used to make the basic settings for the Micropilot FMR20. The RIA15 must be ordered with the relevant option for FMR20 basic setting in this case. -
Page 3: Power Supply
RIA15 Measuring range 4 to 20 mA (scalable, reverse polarity protection) Max. input current 200 mA Power supply Terminal assignment NOTICE SELV/Class 2 device ‣ The device may only be powered by a power unit with an energy-limited circuit in accordance with IEC 61010-1: ' S ELV or Class 2 circuit' . - Page 4 RIA15 Connection without backlighting Connection with backlighting Connection with PLC and transmitter A0019720 A0019721 1 PLC 1 PLC Connection without transmitter power supply directly in the 4 to 20 mA circuit A0017708 A0017709 2 4 to 20 mA power source...
- Page 5 RIA15 Circuit diagram / Description 4-wire sensor with process display unit and LPS, with backlighting A0019571 HART® resistance Current meter Sensor Power supply Current output with process display unit and actuator (e.g. actuator valve), without backlighting A0019573 Actuator Power supply...
- Page 6 RIA15 Circuit diagram / Description Multidrop 2-wire sensors with process display unit and LPS, with backlighting A0019722 Sensors Power supply HART® resistance 2-wire sensor with process display unit and active barrier RN221N as LPS RN221N A0019576 Sensor HART® primary master HART®...
- Page 7 RIA15 Connection with optional HART® communication resistance module Circuit diagram / Description 2-wire sensor with process display unit and transmitter power supply, without backlighting A0020839 HART® communication resistance module Sensor Power supply 2-wire sensor with process display unit and transmitter power...
-
Page 8: Performance Characteristics
An additional current-limited current source is required to implement switchable backlighting, e.g. active barrier RN221N. This current source is used to supply the LED backlighting of up to 7 RIA15 process display units without causing an additional voltage drop in the measurement loop. The backlighting can be switched on and off using an external switch. -
Page 9: Installation
RIA15 Installation Mounting location Panel housing The device is designed for use in a panel. Required panel cutout 45x92 mm (1.77x3.62 in) Field housing The field housing version is designed for use in the field. The unit is mounted directly on a wall, or on a pipe with a diameter of up to 2 "... -
Page 10: Mechanical Construction
RIA15 Mechanical construction Design, dimensions Panel-mount housing 109.75 (4.32) 96 (3.78) 37 (1.46) 4.5 (0.18) mm (in) 89.5 (3.52) A0017721 2 Dimensions of the panel housing Required panel cutout 45x92 mm (1.77x3.62 in), max. panel thickness 13 mm (0.51 in). -
Page 11: Certificates And Approvals
For this, the RIA15 can either be ordered together with the FMR20 via the FMR20 product structure, or the RIA15 must be ordered separately with option 3 "4 to 20 mA current signal + HART + FMR20 basic setting" in feature 030 "Input". -
Page 12: Ordering Information
• Ability to order directly in the Endress+Hauser Online Shop Accessories Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com. - Page 13 Service-specific accessories Accessories Description Applicator Software for selecting and sizing Endress+Hauser measuring devices: • Calculation of all the necessary data for identifying the optimum measuring device: e.g. pressure loss, accuracy or process connections. • Graphic illustration of the calculation results Administration, documentation and access to all project-related data and parameters over the entire life cycle of a project.
-
Page 14: Supplementary Documentation
• Ideal measuring point design and sizing to suit the processes and needs of a wide range of industries The Configurator is available: On request from your Endress+Hauser sales office on a CD-ROM for local PC installation. Life cycle management for your plant... - Page 16 www.addresses.endress.com...
