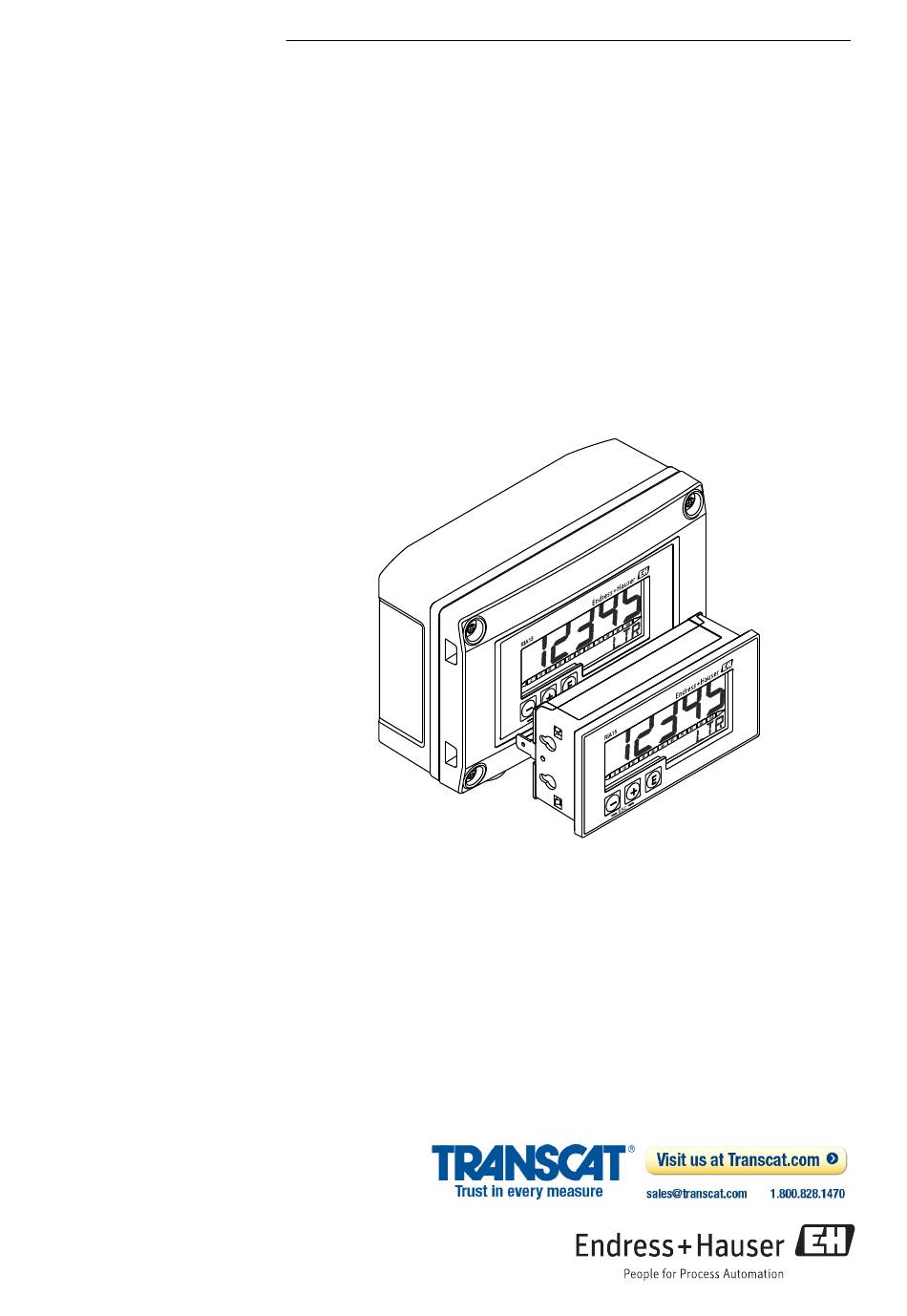

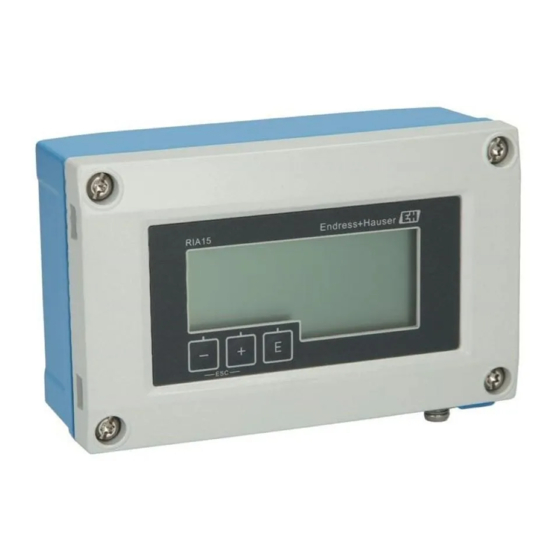

- Page 1 Products Solutions Services BA01073K/09/EN/05.14 71259848 Valid as of version 01.02.xx (Firmware) Operating instructions RIA15 Process display unit Loop-powered 4 to 20 mA process display unit...
-
Page 3: Table Of Contents
RIA15 Table of contents Table of contents Document information ..4 Return ......26 Document function . -
Page 4: Document Information
Document information RIA15 Document information Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal. - Page 5 RIA15 Document information Symbol Meaning Equipotential connection A connection that has to be connected to the plant grounding system: This may be a potential equalization line or a star grounding system depending on national or company codes of practice. A0011201 ESD - Electrostatic discharge Protect the terminals against electrostatic discharge.
-
Page 6: Safety Instructions
Safety instructions RIA15 Symbol Meaning Flow direction A0013441 Hazardous area Indicates a hazardous area. A0011187 Safe area (non-hazardous area) Indicates a non-hazardous area. A0011188 1.2.5 Tool symbols Symbol Meaning Flat blade screwdriver A0011220 Allen key A0011221 Open-ended wrench A0011222 Torx screwdriver... -
Page 7: Designated Use
If a plastic transmitter housing is permanently exposed to certain steam and air mixtures, this can damage the housing. ‣ If you are unsure, please contact your Endress+Hauser Sales Center for clarification. ‣ If used in an approval-related area, observe the information on the nameplate. -
Page 8: Identification
Identification RIA15 It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Identification Nameplate The nameplate is located on the right-hand side of the housing in the case of the field device, and on the rear of the housing in the case of the panel-mounted device. -
Page 9: Scope Of Delivery
RIA15 Installation Scope of delivery The scope of delivery of the device comprises: • Panel-mounted device – Process display unit – Operating Instructions – Ex Safety Instructions (optional) – Fastening fixtures • Field device – Process display unit – Operating Instructions –... -
Page 10: Installation Conditions
Installation RIA15 4.1.2 Transport and storage Please note the following: • Pack the device so that is protected against impact for storage and transport. The original packaging provides optimum protection. • The permitted storage temperature is –40 to +85 °C (–40 to +185 °F); it is possible to store the device at borderline temperatures for a limited period (48 hours maximum). - Page 11 RIA15 Installation Installation in a panel with a panel cutout 92x45 mm (3.62x1.77 in), max. panel thickness 13 mm (0.51 in). Slot the device into the panel cutout from the front. Fit the mounting clips on the side of the housing and tighten the threaded rods.
- Page 12 Installation RIA15 TX20 A0017789 3 Mounting the process display unit on a pipe Mounting plate for pipe/wall mounting Weather protection cover (optional) Release the 4 housing screws Open the housing Secure the mounting plate to the rear of the device with 4 screws supplied. The optional weather protection cover can be secured between the device and the mounting plate.
- Page 13 RIA15 Installation Wall mounting With optionally available mounting kit. A0017803 4 Mounting the process display unit on a wall Use the mounting plate as a stencil for 2 6 mm (0.24 in) bore holes, 82 mm (3.23 in) apart, and secure the plate on the wall with 2 screws (not supplied).
-
Page 14: Post-Installation Check
Wiring RIA15 Close the cover and tighten the housing screws. Post-installation check 4.4.1 Display unit in the panel-mount housing • Is the seal undamaged? • Are the mounting clips securely fastened on the housing of the device? • Are the threaded rods properly tightened? •... -
Page 15: Quick Wiring Guide
RIA15 Wiring A0020848 5 Operation of the spring terminals When using rigid cable with ferrule, just plug the cable into the terminal. No tools required. With flexible wire the spring mechanism of the terminal must be operated as shown in step 2. - Page 16 Wiring RIA15 Connection without backlighting Connection with backlighting Connection with transmitter power supply and transmitter A0017704 A0017705 1 Transmitter power supply 1 Transmitter power supply Connection with transmitter power supply and transmitter using the auxiliary terminal A0017706 A0017707 1 Transmitter power supply...
-
Page 17: Inserting The Cable, Field Housing
RIA15 Wiring Inserting the cable, field housing TX20 A0017830 6 Inserting the cable, field housing Inserting the cable, field housing, connection without transmitter power supply (example) Release the housing screws Open the housing Open the cable gland (M16) and insert the cable. - Page 18 Wiring RIA15 A0018894 7 Functional grounding terminal on panel-mounted device 5.3.2 Field device For EMC reasons the functional grounding should always be connected. When the device is used in explosion hazardous environment (with optional Ex approval) the connection is obligatory and the field housing must additionally be grounded via a grounding screw fitted on the outside of the housing.
-
Page 19: Degree Of Protection
RIA15 Wiring TX20 A0018908 9 Ground terminal on field housing Degree of protection 5.4.1 Field housing The devices meet all the requirements of IP66. It is absolutely essential to comply with the following points to ensure this protection is guaranteed after mounting or servicing the device: •... -
Page 20: Operation
Operation RIA15 Are the mounted cables, incl. functional grounding, connected correctly and strain-relieved? Field housing: Are the cable glands securely closed? Operation A0017989 10 Display and operating elements of the process display unit Symbol: operating menu disabled Symbol: error Symbol: warning Operating keys "-", "+", "E"... -
Page 21: Operating Functions
RIA15 Commissioning Operating functions The operating functions of the process display unit are divided into the following menus. The individual parameters and settings are described in the "Commissioning" section. If the operating menu is disabled by means of a user code, the individual menus and parameters can be displayed but not changed. -
Page 22: Operating Matrix
Commissioning RIA15 Operating matrix Setup menu (SETUP) Parameter Values visible at Description DECIM 0 DEC Number of decimal places for display 1 DEC 2 DEC 3 DEC 4 DEC SC__4 Numerical value 5-digit value (number of decimal places as configured –19 999 to 99 999... - Page 23 RIA15 Commissioning Expert menu (EXPRT); a code must be entered In addition to all the parameters in the Setup menu, the Expert menu also contains the parameters described in this table. If you call up the Expert menu, you will be asked to enter the user code (UCODE, default: 0000).
-
Page 24: Troubleshooting
Troubleshooting RIA15 Expert menu (EXPRT); a code must be entered In addition to all the parameters in the Setup menu, the Expert menu also contains the parameters described in this table. If you call up the Expert menu, you will be asked to enter the user code (UCODE, default: 0000). -
Page 25: Spare Parts
RIA15 Troubleshooting Diagnostic Short text Corrective Status signal Diagnostic behavior Priority number measure conformity S902 Input signal too Warning error large • Check transmitter for incorrect configuration Diagnostics for the electronics F261 Electronics Replace Alarm module electronics F283 Memory content • Restart device Alarm •... -
Page 26: Software History And Overview Of
The measuring device must be returned if repairs or a factory calibration are required, or if the wrong measuring device has been ordered or delivered. According to legal regulations, Endress+Hauser, as an ISO-certified company, is required to follow certain procedures when handling returned products that are in contact with medium. - Page 27 RIA15 Disposal To ensure swift, safe and professional device returns, please read the return procedures and conditions on the Endress+Hauser website at www.services.endress.com/return-material Disposal The device contains electronic components and must therefore be disposed of as electronic waste. Comply with local disposal regulations.
- Page 28 Technical data RIA15 12.3.2 Maximum measured error Input Range Measured error of measuring range Current 4 to 20 mA ±0.1 % Over range up to 22 mA 12.3.3 Resolution Signal resolution > 13 bit 12.3.4 Influence of ambient temperature < 0.02 %/K (0.01 %/°F) of measuring range 12.3.5...
- Page 29 RIA15 Technical data 12.5.3 Climate class IEC 60654-1, Class B2 12.5.4 Altitude Up to 5 000 m (16 400 ft) above MSL in accordance with IEC61010-1 12.5.5 Degree of protection Panel housing IP65 at front, IP20 at rear Field housing IP66, NEMA4x (aluminum housing) 12.5.6...
- Page 30 Technical data RIA15 12.6 Mechanical construction 12.6.1 Design, dimensions Panel-mount housing 109.75 (4.32) 96 (3.78) 37 (1.46) 4.5 (0.18) mm (in) 89.5 (3.52) A0017721 12 Dimensions of the panel housing Required panel cutout 45x92 mm (1.77x3.62 in), max. panel thickness 13 mm (0.51 in).
- Page 31 RIA15 Technical data Field housing 131 (5.16) 55.5 (2.19) mm (in) A0017722 13 Dimensions of the field housing incl. cable glands (M16) 12.6.2 Weight Panel-mount housing 115 g (0.25 lb.) Field housing • Aluminum: 520 g (1.15 lb) • Plastic: 300 g (0.66 lb) 12.6.3...
- Page 32 12.8 Certificates and approvals 12.8.1 CE mark The measuring system meets the legal requirements of the EU Directives. Endress+Hauser confirms that the device has been successfully tested by applying the CE mark. 12.8.2 Ex approval Information about currently available Ex versions (ATEX, FM, CSA, etc.) can be supplied by your E+H Sales Center on request.
- Page 33 Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress +Hauser website: www.endress.com.
