Transport Units; Erasure Unit - AGFA ADC Compact Plus Maintenance Manual

DD+DIS015.02E
3.7

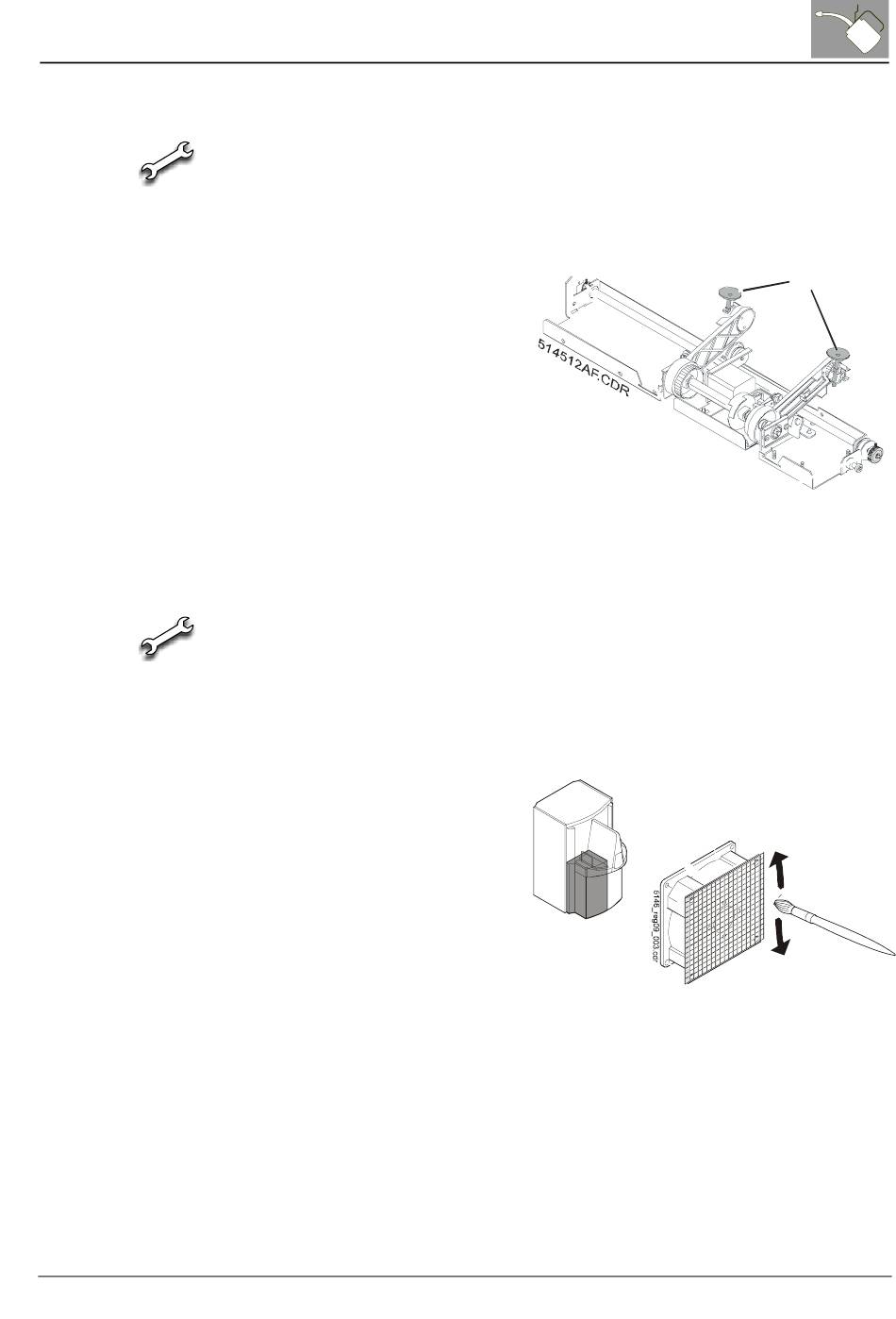

Suction cups (1) Check the suction cups 1
3.8
Fan
Edition 1, Revision 1

Transport Units

·
ADC Cleaner
(if not available, use water)
·
Suction cups
(CM+9.5145.6550.0)
position.
(2) Clean the suction cups with
ADC Cleaner.
(3) Exchange suction cups once
a year.
(4) In case of vacuum problems,
check the suction cups by
bending up the edges (check
for tears) and replace if
necessary.

Erasure Unit

·
Soft cloth
·
Dust brush
·
ADC Cleaner
(if not available, use water)
·
10 x 100 W lamps
(CM+9.0450.6553.0)
(1) Open the doors of the
digitizer.
(2) Clean the grid of the fan with
a soft cloth and a dust brush.
ADC Compact Plus
(Type 5146 / 100/200)
Maintenance
1
Figure 8
Figure 9
Chapter 9 / 9
