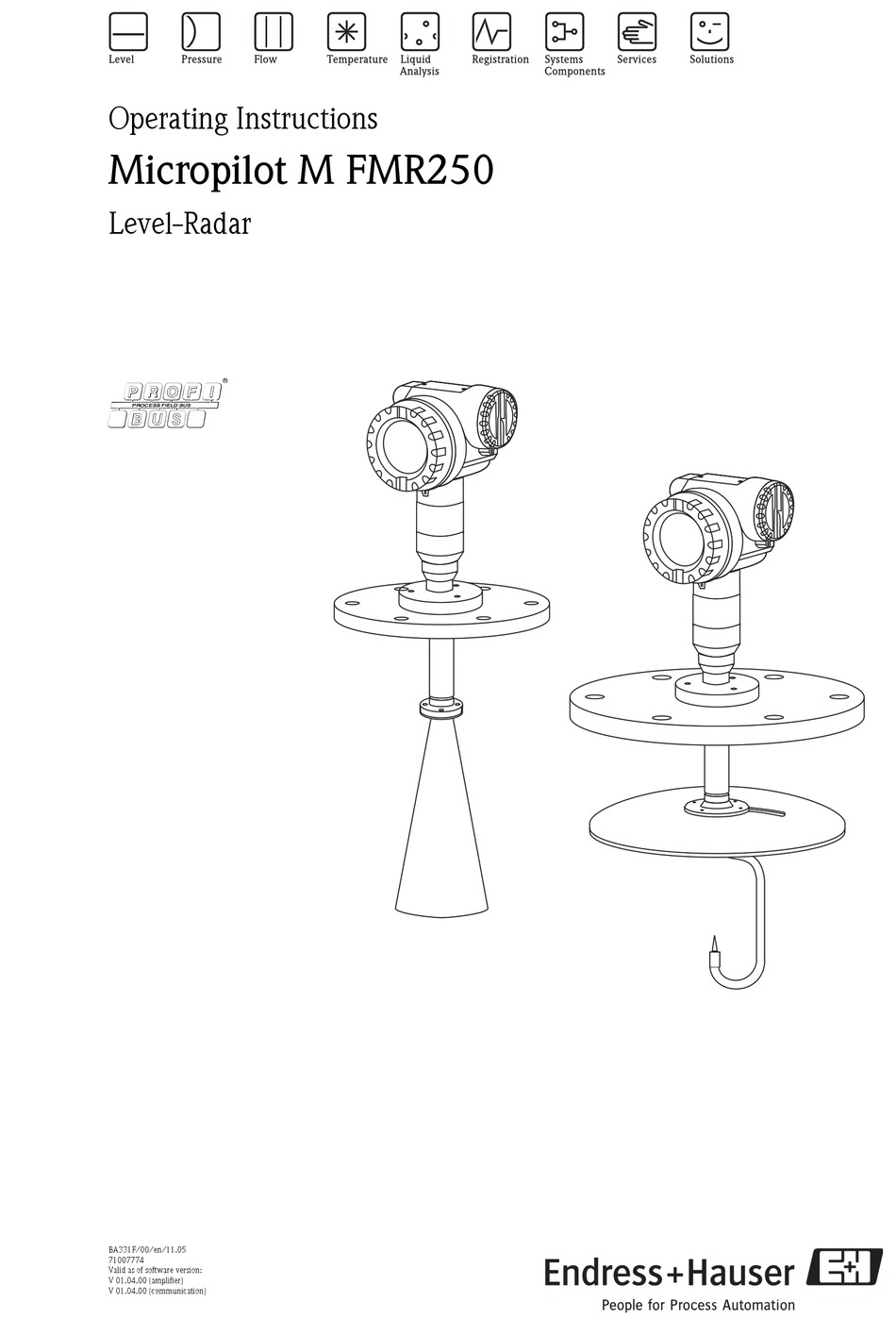

Operating Instructions

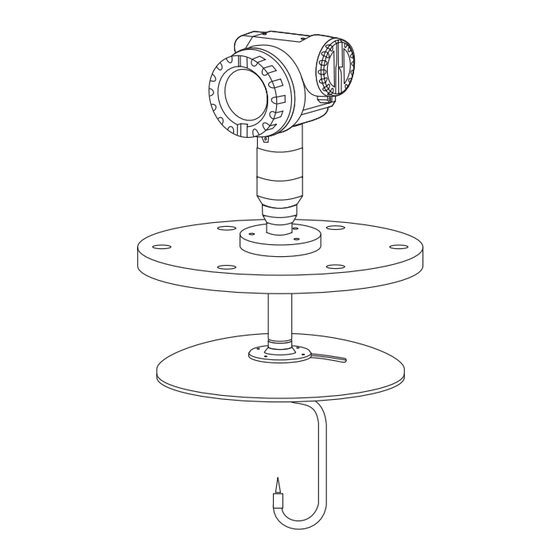

Micropilot M FMR250
Level-Radar
8
BA331F/00/en/11.05
71007774
Valid as of software version:
V 01.04.00 (amplifier)
V 01.04.00 (communication)

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser PROFIBUS Micropilot M FMR250

Summary of Contents for Endress+Hauser PROFIBUS Micropilot M FMR250

  • Page 1 Operating Instructions Micropilot M FMR250 Level-Radar BA331F/00/en/11.05 71007774 Valid as of software version: V 01.04.00 (amplifier) V 01.04.00 (communication)
  • Page 2 Micropilot M FMR250 with PROFIBUS PA Brief overview For quick and simple commissioning: Safety Instructions → Page 6 ff. Explanation of the warning symbols You can find special instructions at the appropriate position in the chapter in question. The positions are indicated with the icons Warning #, Caution " and Note !.
  • Page 3 Micropilot M FMR250 with PROFIBUS PA Brief operating instructions Micropilot M FMR250 - Brief operating instructions KA 235F/00/a2/11.05 52025245 Contrast: measured dist./ value meas value Group selection media tank tank medium process empty full pipe dist./ check range of start type shape shape...
  • Page 4 Micropilot M FMR250 with PROFIBUS PA Endress + Hauser...

  • Page 5: Table Of Contents

    Installation, commissioning and operation ..6 9.10 Contact addresses of Endress+Hauser ... 96 Operational safety ......6 Notes on safety conventions and symbols .

  • Page 6: Safety Instructions

    Safety instructions Micropilot M FMR250 with PROFIBUS PA Safety instructions Designated use The Micropilot M FMR250 is a compact level radar for the continuous, contactless measurement of predominantly solids. The device can also be freely mounted outside closed metal vessels because of its operating frequency of about 26 GHz and a maximum radiated pulsed energy of 1mW (average power output 1 µW).

  • Page 7: Notes On Safety Conventions And Symbols

    Micropilot M FMR250 with PROFIBUS PA Safety instructions Notes on safety conventions and symbols In order to highlight safety-relevant or alternative operating procedures in the manual, the following conventions have been used, each indicated by a corresponding symbol in the margin. Safety conventions Warning! A warning highlights actions or procedures which, if not performed correctly, will lead to personal...

  • Page 8: Identification

    Identification Micropilot M FMR250 with PROFIBUS PA Identification Device designation 2.1.1 Nameplate The following technical data are given on the instrument nameplate: L00-FMR2xxxx-18-00-00-en-002 Fig. 1: Information on the nameplate of the Micropilot M with PROFIBUS PA (example) 2.1.2 Ordering structure Ordering structure Micropilot M FMR250 Approval: A Non-hazardous area...
  • Page 9 Micropilot M FMR250 with PROFIBUS PA Identification Ordering structure Micropilot M FMR250 (continued) Antenna seal; Temperature: FKM Viton GLT; -40...200°C/-40...392 °F Special version Antenna extension: Not selected 250mm/10" 450mm/18" Special version Process connection: Thread DIN2999 R1-1/2, 316L Thread ANSI NPT1-1/2, 316L UNI flange DN200/8"/200A, 316L max PN1/14.5lbs/1K, compatible DN200 PN10/16, 8"...

  • Page 10: Scope Of Delivery

    The device complies with the applicable standards and regulations as listed in the EC declaration of conformity and thus complies with the statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark.

  • Page 11: Installation

    Micropilot M FMR250 with PROFIBUS PA Installation Installation Quick installation guide At mounting adjust the marking at the instrument flange! Installation in vessel (free space): Mark on process connector facing the nearest vessel wall! Turn housing The housing can be turned 350° in order to simplify access to the display and the terminal compartment mark at instrument flange T12 housing...

  • Page 12: Installation Conditions

    Installation Micropilot M FMR250 with PROFIBUS PA Installation conditions 3.3.1 Dimensions Housing dimensions max. 110 ENDRESS+HAUSER F12 housing (Aluminium) L00-F12xxxx-06-00-00-en-001 max. 100 ENDRESS+HAUSER T12 housing (Aluminium) L00-T12xxxx-06-00-00-en-001 max. 94 F23 housing (316L) L00-F23xxxx-06-00-00-en-001 Endress + Hauser...
  • Page 13 Micropilot M FMR250 with PROFIBUS PA Installation Micropilot M FMR250 - process connection, type of antenna F12 / T12 / F23 housing Threaded connection Flange DN80…100 E+H UNI flange DN 200 Alignment unit with 1 ½” BSPT (R 1 ½”) or equivalent E+H UNI flange DN 100/200 or 1 ½...
  • Page 14 Installation Micropilot M FMR250 with PROFIBUS PA E+H UNI flange The number of bolts has sometimes been reduced. The bolt-holes have been enlarged for adaption of dimensions, therefore, the flange needs to be properly aligned to the counterflange before the bolts are tightened.
  • Page 15 – prevent interference reflections – extend the maximum possible measuring range in conical outlets. • Metallic screens (3) mounted at a slope spread the radar signals and can, therefore, reduce L00-FMR250xx-17-00-00-xx-002 interference echoes. Please contact Endress+Hauser for further information. Endress + Hauser...
  • Page 16 T >70°C t >85°C L00-FMR250xx-17-00-00-xx-014 Please contact Endress+Hauser for further information. Beam angle The beam angle is defined as the angle a where the energy density of the radar waves reaches half the value of the maximum energy density (3dB-width). Microwaves are also emitted outside the signal beam and can be reflected off interfering installations.
  • Page 17 Micropilot M FMR250 with PROFIBUS PA Installation Measuring conditions • The measuring range begins, where the beam hits the vessel bottom. Particularly with dish bottoms or conical outlets the level cannot be detected below this point. The maximum measuring range can be increased in such applications by using a top target positioner (see Page 15).
  • Page 18 Installation Micropilot M FMR250 with PROFIBUS PA Measuring range The usable measuring range depends on the size of the antenna, the reflectivity of the medium, the mounting location and eventual interference reflections. The maximum configurable range is 70 m (229 ft) for Micropilot M FMR250. To achieve an optimised Signal strength it is recommended to use an antenna with as large as possible diameter (DN200/8"...

  • Page 19: Installation Instructions

    Micropilot M FMR250 with PROFIBUS PA Installation Installation instructions 3.4.1 Mounting kit For the mounting , you will require the following tool: • The tool for flange mounting or • a key AF60 for threaded boss and • 4 mm/0.1" Allen wrench for turning the housing. 3.4.2 Installation in vessel (free space) Optimum mounting position...
  • Page 20 • The horn antenna should protrude from the nozzle. If this is not possible for mechanical reasons, larger nozzle heights can be accepted. Note! Please contact Endress+Hauser for application with higher nozzle. • Vertical horn antenna. Ø D Ideally, the horn antenna should be installed vertically.
  • Page 21 Micropilot M FMR250 with PROFIBUS PA Installation Standard installation FMR250 with parabolic antenna • Observe installation instructions on Page 15. • Marker is aligned towards vessel wall. • The marker is always exactly in the middle between two bolt-holes in the flange. •...
  • Page 22 Installation Micropilot M FMR250 with PROFIBUS PA Examples for installation with small flange (< parabolic reflector) standard installation nozzle for installation in nozzle you can dismantle the parabolic reflector Antenna size 200mm/8” D [mm] H [mm] < 50 without antenna extension 4 bolts Caution! At hinged flanges, the length of the antenna...
  • Page 23 Micropilot M FMR250 with PROFIBUS PA Installation FMR250 with top target positioner Using top target positioner it is possible to tilt the antenna axis by up to 15° in all directions. The top target positioner is used for the optimum alignment of the radar beam with the bulk solids surface.

  • Page 24: Post-Installation Check

    Installation Micropilot M FMR250 with PROFIBUS PA 3.4.3 Turn housing After mounting, the housing can be turned 350° in order to simplify access to the display and the terminal compartment. Proceed as follows to turn the housing to the required position: •...

  • Page 25: Wiring

    Wiring Wiring Quick wiring guide Wiring in F12/F23 housing " Before connection please note the following: ENDRESS+HAUSER PROFIBUS devices are marked on the nameplate (1). The MICROPILOT M IP65 voltage is determined by the PROFIBUS standard and the Order Code:...
  • Page 26 Wiring Micropilot M FMR250 with PROFIBUS PA Wiring in T12 housing " Before connection please note the following: ENDRESS+HAUSER MICROPILOT M PROFIBUS devices are marked on the nameplate (1). The IP65 voltage is determined by the PROFIBUS standard and the...
  • Page 27 Micropilot M FMR250 with PROFIBUS PA Wiring 4.1.1 Cable specification PROFIBUS Twisted, screened pairs must be used. The following specification must be met for explosion hazardous application (EN 50 020, FISCO model): • Loop-resistance (DC): 15…150 Ω/km, • Specific inductance: 0.4…1 mH/km, •...

  • Page 28: Connecting The Measuring Unit

    Wiring Micropilot M FMR250 with PROFIBUS PA Connecting the measuring unit 4.2.1 Cable entry • Cable gland: M20x1.5 • Cable entry: G ½ or ½ NPT 4.2.2 Supply voltage The following values are the voltages across the terminals directly at the instrument: Type Terminal voltage minimum...

  • Page 29: Recommended Connection

    Micropilot M FMR250 with PROFIBUS PA Wiring Recommended connection For maximum EMC protection please observe the following points: • The external ground terminal on the transmitter must be connected to ground. • The continuity of the cable screening between tapping points must be ensured. •...

  • Page 30: Operation

    Operation Micropilot M FMR250 with PROFIBUS PA Operation Quick operation guide ENDRESS + HAUSER – >3 s media type basic setup Return to liquids tank shape medium property safety settings Group Selection solids dome ceiling unknown linearisation horizontal cyl DC: < 1.9 extended calibr.
  • Page 31 Micropilot M FMR250 with PROFIBUS PA Operation 5.1.1 General structure of the operating menu The operating menu is made up of two levels: • Function groups (00, 01, 03, …, 0C, 0D): The individual operating options of the instrument are split up roughly into different function groups. The function groups that are available include, e.g.: "basic setup", "safety settings", "output", "display", etc.

  • Page 32: Display And Operating Elements

    Operation Micropilot M FMR250 with PROFIBUS PA Display and operating elements (liquid crystal display) Orde Orde Ser.- Ser.- r Cod r Cod No.: No.: sber surin sber surin eich eich g rang g rang U 16... U 16..20 .
  • Page 33 Micropilot M FMR250 with PROFIBUS PA Operation Headline Position indicator ENDRESS + HAUSER Symbol Main value Bargraph Unit – Selection list Function groups -> Functions HOME F000 F001 F002 F003 F004 ... FG00 FG01 FG02 Help text FG03 FG04 +21dB FG05 FG06 Envelope...
  • Page 34 Operation Micropilot M FMR250 with PROFIBUS PA 5.2.2 Display symbols The following table describes the symbols that appear on the liquid crystal display: Sybmol Meaning ALARM_SYMBOL This alarm symbol appears when the instrument is in an alarm state. If the symbol flashes, this indicates a warning.

  • Page 35: Local Operation

    Micropilot M FMR250 with PROFIBUS PA Operation Local operation 5.3.1 Locking of the configuration mode The Micropilot can be protected in two ways against unauthorised changing of instrument data, numerical values or factory settings: "unlock parameter" (0A4): A value <> 2457 (e.g. 2450) must be entered in "unlock parameter" (0A4) in the "diagnostics"...
  • Page 36 There is no need to change these parameters under normal circumstances and consequently, they are protected by a special code known only to the E+H service organization. Please contact Endress+Hauser if you have any questions.
  • Page 37 Micropilot M FMR250 with PROFIBUS PA Operation 5.3.3 Factory settings (Reset) " Caution! A reset sets the instrument back to the factory settings. This can lead to an impairment of the measurement. Generally, you should perform a basic setup again following a reset. A reset is only necessary: •...

  • Page 38: Display And Acknowledging Error Messages

    Operation Micropilot M FMR250 with PROFIBUS PA Display and acknowledging error messages Type of error Errors that occur during commissioning or measuring are displayed immediately on the local display. If two or more system or process errors occur, the error with the highest priority is the one shown on the display.

  • Page 39: Profibus Pa Communication

    Micropilot M FMR250 with PROFIBUS PA Operation PROFIBUS PA communication 5.5.1 Synopsis personal computer e.g. with Commuwin II or ToF Tool and Profiboard resp. Proficard segment coupler PROFIBUS DP ENDRESS + HAUSER PROFIBUS PA operating and display module VU 331 ENDRESS + HAUSER –...
  • Page 40 Operation Micropilot M FMR250 with PROFIBUS PA 5.5.2 Device address Selecting the device address • Every PROFIBUS-PA device must be given an address. If the address is not set correctly, the device will not be recognised by the process control system. •...
  • Page 41 Micropilot M FMR250 with PROFIBUS PA Operation 5.5.3 Device database and type files (GSD) A device database file (GSD) contains a description of the properties of the PROFIBUS-PA device, e.g. the supported transmission rates and the type and format of the digital information output to the PLC.
  • Page 42 Operation Micropilot M FMR250 with PROFIBUS PA 5.5.4 Cyclic data exchange Block model of the Micropilot M L00-FMR230xx-02-00-00-en-001 The block model shows, which data are exchanged continously (i.e. by cyclic data transfer) between the Micropilot M and the PLC. The numbers refer to the function groups and functions: •...
  • Page 43 Micropilot M FMR250 with PROFIBUS PA Operation Configuration of the cyclic data telegram Use the configuration software of your PLC in order to compose the data telegram from these modules in one of the following ways: Main value In order to transmit the main measured value, selct the module "Main Process Value". Main value and second cyclic value In order to transmit the main value and the second cyclic value (temperature or measured distance), select the modules in the following order: "Main Process Value", "2nd Cyclic...
  • Page 44 Operation Micropilot M FMR250 with PROFIBUS PA IEEE-745 Floating Point Number The measured value is transmitted as a IEEE 754 floating point number, whereby (E-127) Measured value = (-1) x (1+F) Byte 1 Byte 2 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2...
  • Page 45 Micropilot M FMR250 with PROFIBUS PA Operation Status codes The status codes comprise one byte and have got the following meaning: Status- Device status Significance Primary value Secondary value Code 0C Hex device error 0F Hex device error 1F Hex out-of-service (target mode) 40 Hex UNCERTAIN...
  • Page 46 Operation Micropilot M FMR250 with PROFIBUS PA 5.5.5 Acyclic data exchange Acyclic data exchange allows device parameters to be changed independently of the communication between the device and a PLC. Acyclic data exchange is used • to transmit device parameters during commissioning and maintenance; •...
  • Page 47 Micropilot M FMR250 with PROFIBUS PA Operation 5.5.6 Slot/index tables The device parameters are listed in the following tables. The parameters are accessed via the slot and index number. The Analog-Input and physical blocks contain standard parameters, block parameters and manufacturer-specific parameters.
  • Page 48 Operation Micropilot M FMR250 with PROFIBUS PA Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class HI HI Limit FLOAT static HI Limit FLOAT static LO Limit FLOAT static LO LO Limit FLOAT static 44-45 HI HI Alarm DS-39* dynamic...
  • Page 49 Micropilot M FMR250 with PROFIBUS PA Operation Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class Device certification OSTRING constant Security locking V9H9 UNSIGNED16 non-vol. Factory reset V9H5 UNSIGNED16 non-vol. Descriptor OSTRING static Device message OSTRING static Device instal.
  • Page 50 Operation Micropilot M FMR250 with PROFIBUS PA E+H specific level transducer block Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class Standard parameters Block data DS-32* constant Static revision UNSIGNED16 non-vol. Device tag OSTRING static Strategy UNSIGNED16 static...
  • Page 51 Micropilot M FMR250 with PROFIBUS PA Operation Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class check distance V4H1 UNSIGNED8 static range of mapping V4H2 FLOAT static start mapping V4H3 UNSIGNED8 static pres. map. dist. V4H4 FLOAT dynamic...
  • Page 52 Operation Micropilot M FMR250 with PROFIBUS PA Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class serial no. VAH4 STRING static distance unit VAH5 UNSIGNED16 static 244- download mode VAH8 UNSIGNED8 static antenna ext. VAH9 FLOAT static input level semi auto...
  • Page 53 5.5.7 ToF Tool operating program The ToF Tool is a graphical operating software for instruments from Endress+Hauser that operate based on the time-of-flight principle. It is used to support commissioning, securing of data, signal analysis and documentation of the instruments. It is compatible with the following operating systems: WinNT4.0, Win2000 and WinXP.
  • Page 54 Operation Micropilot M FMR250 with PROFIBUS PA Menu-guided commissioning L00-FMR250xx-20-00-00-en-011 Signal analysis via envelope curve: L00-FMR250xx-20-00-00-en-008 Connection options • Service-interface with adapter FXA 193 • Proficard for connection to a Laptop • Profiboard for connection to a PC Endress + Hauser...

  • Page 55: Commissioning

    Micropilot M FMR250 with PROFIBUS PA Commissioning Commissioning Function check Make sure that all final checks have been completed before you start up your measuring point: • Checklist “Post installation check” (see Page 24). • Checklist “Post connection check” (see Page 29). Switching on the measuring device When the instrument is switched on for the first time, the following messages appear on the display: ⇒...

  • Page 56: Basic Setup

    Commissioning Micropilot M FMR250 with PROFIBUS PA Basic Setup Füllstandmessung in Flüssigkeiten Mediumtyp Mediumtyp Flansch: Flüssigkeit Schüttgut Referenzpunkt der Messung Tankgeometrie Behälter / Silo Metallsilo Füllstandmessung in Schüttgütern Flansch: Referenzpunkt der Messung (für Bypass/Schwallrohr) E = Abgleich Leer (= Nullpunkt), Einstellung in 005 F = Abgleich Voll (= Spanne), Einstellung in 006 D = Distanz (Abstand Flansch / Füllgut), Anzeige in 0A5 = Füllstand, Anzeige in 0A6...
  • Page 57 Micropilot M FMR250 with PROFIBUS PA Commissioning The basic setup is sufficient for successful commissioning in most applications. Complex measuring operations necessitate additional functions that the user can use to customise the Micropilot as necessary to suit his specific requirements. The functions available to do this are described in detail in the BA291F.

  • Page 58: Basic Setup With The Vu331

    Commissioning Micropilot M FMR250 with PROFIBUS PA Basic Setup with the VU331 Function "measured value" (000) ⇒ ENDRESS + HAUSER – This function displays the current measured value in the selected unit (see "customer unit" (042) function). The number of digits after decimal point can be selected in the "no.of decimals"...
  • Page 59 Micropilot M FMR250 with PROFIBUS PA Commissioning Function "tank shape" (002), liquids only ⇒ ENDRESS + HAUSER – This function is used to select the tank shape. Selection: • dome ceiling • horizontal cyl • bypass • stilling well • flat ceiling •...
  • Page 60 Commissioning Micropilot M FMR250 with PROFIBUS PA Function "medium property" (003), liquids only ⇒ ENDRESS + HAUSER – This function is used to select the dielectric constant. Selection: • unknown • DC: < 1.9 • DC: 1.9 ... 4 • DC: 4 ... 10 •...
  • Page 61 Micropilot M FMR250 with PROFIBUS PA Commissioning Function "process cond." (004) , liquids only ⇒ ENDRESS + HAUSER – This function is used to select the process conditions. Selection: • standard • calm surface • turb. surface • agitator • fast change •...
  • Page 62 Commissioning Micropilot M FMR250 with PROFIBUS PA Function "vessel / silo" (00A), solids only ⇒ ENDRESS + HAUSER – This function is used to select the vessel / silo. Selection: • unknown • metal silo • concrete silo • bin / bunker •...
  • Page 63 Micropilot M FMR250 with PROFIBUS PA Commissioning Function "process cond." (00C), solids only ⇒ ENDRESS + HAUSER – This function is used to select the process conditions. Selection: • standard • fast change • slow change • test:no filter Endress + Hauser...
  • Page 64 Commissioning Micropilot M FMR250 with PROFIBUS PA Function "empty calibr." (005) ⇒ ENDRESS + HAUSER – This function is used to enter the distance from the flange (reference point of the measurement) to the minimum level (=zero). L00-FMR2xxxx-14-00-06-en-008 " Caution! For dish bottoms or conical outlets, the zero point should be no lower than the point at which the radar beam hits the bottom of the vessel.
  • Page 65 Micropilot M FMR250 with PROFIBUS PA Commissioning Function "full calibr." (006) ⇒ ENDRESS + HAUSER – This function is used to enter the distance from the minimum level to the maximum level (=span). L00-FMR2xxxx-14-00-06-en-009 In principle, it is possible to measure up to the tip of the antenna. However, due to considerations regarding corrosion and build-up, the end of the measuring range should not be chosen any closer than 50 mm (2") to the tip of the antenna.
  • Page 66 Commissioning Micropilot M FMR250 with PROFIBUS PA Function "pipe diameter" (007) ⇒ ENDRESS + HAUSER – This function is used to enter the pipe diameter of the stilling well or bypass pipe. L00-FMR2xxxx-14-00-00-en-011 Microwaves propagate more slowly in pipes than in free space. This effect depends on the inside diameter of the pipe and is automatically taken into account by the Micropilot.
  • Page 67 Micropilot M FMR250 with PROFIBUS PA Commissioning Function "check distance" (051) ⇒ ENDRESS + HAUSER – This function triggers the mapping of interference echoes. To do so, the measured distance must be compared with the actual distance to the product surface. The following options are available for selection: Selection: •...
  • Page 68 Commissioning Micropilot M FMR250 with PROFIBUS PA Function "range of mapping" (052) ⇒ ENDRESS + HAUSER – This function displays the suggested range of mapping. The reference point is always the reference point of the measurement (see Page 56 ff.). This value can be edited by the operator. For manual mapping, the default value is 0 m.
  • Page 69 Micropilot M FMR250 with PROFIBUS PA Commissioning display (008) ⇒ ENDRESS + HAUSER – The distance measured from the reference point to the product surface and the level calculated with the aid of the empty adjustment are displayed. Check whether the values correspond to the actual level or the actual distance.
  • Page 70 Commissioning Micropilot M FMR250 with PROFIBUS PA 6.4.2 Envelope curve with VU331 After the basic setup, an evaluation of the measurement with the aid of the envelope curve ("envelope curve" (0E) function group) is recommended. Function "plot settings" (0E1) ⇒ ENDRESS + HAUSER –...
  • Page 71 Micropilot M FMR250 with PROFIBUS PA Commissioning Function "envelope curve display" (0E3) The envelope curve is displayed in this function. You can use it to obtain the following information: quality of evaluated echo full calibr. evaluated echo is marked empty calibr. envelope curve only minimum distance...
  • Page 72 Commissioning Micropilot M FMR250 with PROFIBUS PA Move mode Then press to switch to Move mode. Either is displayed. • shifts the curve to the right. • shifts the curve to the left. L00-FMxxxxxx-07-00-00-yy-008 Vertical Zoom mode Press once more to switch to Vertical Zoom mode. is displayed.

  • Page 73: Basic Setup With The Tof Tool

    Micropilot M FMR250 with PROFIBUS PA Commissioning Basic Setup with the ToF Tool To carry out the basic setup with the ToF Tool operating program, proceed as follows: • Start the ToF Tool operating program and establish a connection • Select the "basic setup" function group in the navigation window The following display appears on the screen: Basic Setup step 1/4: •...
  • Page 74 Commissioning Micropilot M FMR250 with PROFIBUS PA Basic Setup step 2/4: • Enter the application parameters: – vessel / silo (for a description, see Page 62) – medium property (for a description, see Page 62) – process cond. (for a description, see Page 63) L00-FMR250xx-20-00-00-en-011 Basic Setup step 3/4: If "metal silo", "concrete silo", "..."...
  • Page 75 Micropilot M FMR250 with PROFIBUS PA Commissioning If "conveyor belt" is selected in the "vessel / silo" function, the following display appears on the screen: • empty calibr. (for a description, see Page 64) • full calibr.(for a description, see Page 65) L00-FMR250xx-20-00-00-en-013 Basic Setup step 4/4: •...
  • Page 76 Commissioning Micropilot M FMR250 with PROFIBUS PA 6.5.1 Envelope curve with the ToF Tool After the basic setup, an evaluation of the measurement using the envelope curve is recommended. L00-FMR250xx-20-00-00-en-008 Note! If the level of echo is very weak or there is a heavy interference echo, an orientation of the Micropilot can help optimise the measurement (increase of the useful echo/reduction of the interference echo) (see "Orientation of the Micropilot"...

  • Page 77: Maintenance

    They contain the related replacement instructions. All the spare parts kits which you can order from Endress+Hauser for repairs to the Micropilot M are listed with their order numbers on and . Please contact Endress+Hauser Service for further information on service and spare parts.

  • Page 78: Accessories

    Accessories Micropilot M FMR250 with PROFIBUS PA Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the Micropilot M. Weather protection cover A Weather protection cover made of stainless steel is recommended for outdoor mounting (order code: 543199-0001).
  • Page 79 Micropilot M FMR250 with PROFIBUS PA Accessories Remote display FHX40 Wall-mounting Pipe-mounting (without mounting bracket) (mounting bracket and plate supplied optionally, s. product structure) Separate housing FHX 40 (IP 65) Micropilot M Levelflex M Prosonic M O rd O rd r.
  • Page 80 Accessories Micropilot M FMR250 with PROFIBUS PA Proficard For the connection of a Laptop to PROFIBUS Profiboard For the connection of a Personal Computer to PROFIBUS Endress + Hauser...

  • Page 81: Trouble-Shooting

    Micropilot M FMR250 with PROFIBUS PA Trouble-shooting Trouble-shooting Trouble-shooting instructions Micropilot M FMR 250 -Trouble Shooting Check voltage and Not ok compare it with the Instrument does Connect the Instrument works? Ready specifications on the not respond correct voltage nameplate. Check the polarity Not ok Correct the polarity...

  • Page 82: System Error Messages

    Trouble-shooting Micropilot M FMR250 with PROFIBUS PA System error messages Code Description Possible cause Remedy A102 checksum error device has been powered off before data reset; general reset & new could be stored; avoid emc problem; calibr.required emc problem; if alarm prevails after reset, PROM defect exchange electronics W103...
  • Page 83 Micropilot M FMR250 with PROFIBUS PA Trouble-shooting Code Description Possible cause Remedy E641 no usable echo echo lost due to application conditions or check installation; channel 1 built up on antenna optimize orientation of antenna; check calibr. clean antenna (cf. OM) E651 level in safety distance - risk level in safety distance...

  • Page 84: Application Errors In Liquids

    Trouble-shooting Micropilot M FMR250 with PROFIBUS PA Application errors in liquids Error Output Possible cause Remedy A warning or alarm Depending on the configuration See table of error 1. See table of error messages has occurred. messages (see Page 82) (see Page 82) →...
  • Page 85 Micropilot M FMR250 with PROFIBUS PA Trouble-shooting Error Output Possible cause Remedy → If the surface is not Signal is weakened by 1. Carry out tank mapping basic calm (e.g. filling, the rough surface – the setup emptying, agitator 100% interference echoes are 2.

  • Page 86: Application Errors In Solids

    Trouble-shooting Micropilot M FMR250 with PROFIBUS PA Application errors in solids Error Output Possible cause Remedy A warning or alarm Depending on the configuration See table of error 1. See table of error messages has occurred. messages (see Page 82) (see Page 82) →...
  • Page 87 Micropilot M FMR250 with PROFIBUS PA Trouble-shooting Error Output Possible cause Remedy → During filling or Signal is weakened (e.g. 1. Carry out tank mapping basic emptying the by fluidisation of the setup 100% measured value surface, extreme dust 2. Increase the output damping actual jumps sporadically formation) –...

  • Page 88: Orientation Of The Micropilot

    Trouble-shooting Micropilot M FMR250 with PROFIBUS PA Orientation of the Micropilot For orientation a marker is found on the flange or threaded boss of the Micropilot. During installation this must be oriented as follows (see Page 11): • In tanks: to the vessel wall •...
  • Page 89 Micropilot M FMR250 with PROFIBUS PA Trouble-shooting L00-FMRxxxxx-19-00-00-en-004 Fig. 6: Vessel empty, no interference echo L00-FMRxxxxx-19-00-00-en-005 Fig. 7: Vessel empty, interference echo obtained Fix the flange or threaded boss in this position. If necessary, replace the seal. Carry out tank mapping, see Page 67. Top target positioner - optional Using top target positioner it is possible to tilt the antenna axis by up to 15°...

  • Page 90: Spare Parts

    Trouble-shooting Micropilot M FMR250 with PROFIBUS PA Spare parts Note! You can order spare parts directly from your E+H service organization by giving the serial number which is printed on the measuring transducer nameplate (see Page 8s. Seite 8 ff.). The corresponding spare part number also appears on each spare part.
  • Page 91 Micropilot M FMR250 with PROFIBUS PA Trouble-shooting 11 Hood for terminal compartment 52006026 Cover terminal compartment F12 52019062 Hood terminal compartment F12, FHX40 12 Screw set 535720-9020 Set of screws housing F12/T12 20 Cover 52005936 Cover F12/T12 Aluminium, window, gasket 517391-0011 Cover F12/T12 Aluminium, coated, gasket 30 Electronics...
  • Page 92 Trouble-shooting Micropilot M FMR250 with PROFIBUS PA Spare parts Micropilot M FMR250, T12 housing with separate wiring and electronics compartment O rd d e : r. -N I L O o .: s s b e re a s u ic h r in g ra n...
  • Page 93 Micropilot M FMR250 with PROFIBUS PA Trouble-shooting 20 Cover 52005936 Cover F12/T12 Aluminium, window, gasket 517391-0011 Cover F12/T12 Aluminium, coated, gasket 25 Cover for terminal compartment 518710-0020 Cover T3/T12, Aluminium, coated, gasket 30 Electronics 52024952 Electronics FMR250, Ex, HART 71006591 Electronics FMR250, Ex, PROFIBUS PA 31 HF module 52024953...
  • Page 94 Trouble-shooting Micropilot M FMR250 with PROFIBUS PA Spare parts Micropilot M FMR250, F23 housing with combined wiring and electrinics compartment in a L00-FMR250xx-00-00-06-xx-003 Stainless steel housing on request! 20 Cover 52018670 Cover F23, 316L, sight glass, gasket 52018671 DeCoverckel F23, 316L, gasket 50 Antenna assembly with process connection on request! 65 Sealing kit 535720-9010...
  • Page 95 Micropilot M FMR250 with PROFIBUS PA Trouble-shooting Spare parts Micropilot M FMR250, horn/parabolic antenna M IC O rd M IC O rd C od S er P IL C od S er P IL o. : o. : M es M ea sb er M es...

  • Page 96: Return

    Rev. 1, DD 1. 9.10 Contact addresses of Endress+Hauser The addresses of Endress+Hauser are given on the back cover of this operating manual. If you have any questions, please do not hesitate to contact your E+H representative. Endress + Hauser...

  • Page 97: Technical Data

    Micropilot M FMR250 with PROFIBUS PA Technical data Technical data 10.1 Additional technical data 10.1.1 Input Measured variable The measured variable is the distance between a reference point and a reflective surface (i.e. medium surface). The level is calculated based on the tank height entered. The level can be converted into other units (volume, mass) by means of a linearization (32 points).
  • Page 98 Technical data Micropilot M FMR250 with PROFIBUS PA Influence of ambiente The measurements are carried out in accordance with EN 61298-3: temperature • digital output (HART, PROFIBUS PA): – FMR250 average T : 5 mm/10 K, max. 15 mm over the entire temperature range -40 °C...+80 °C •...
  • Page 99 • F23 housing: approx 9.4 kg + weight of flange 10.1.7 Certificates and approvals CE approval The measuring system meets the legal requirements of the EC-guidelines. Endress+Hauser confirms the instrument passing the required tests by attaching the CE-mark. RF approvals R&TTE, FCC...
  • Page 100 Technical data Micropilot M FMR250 with PROFIBUS PA Ex approval Correlation of safety instructions (XA) and certificates (ZE) to the instrument: Instrument Certificate Explosion protection Output Communication Housing PTB 04 ATEX FMR250 Non-hazardous area A, B, C, HART, — — —...
  • Page 101 Micropilot M FMR250 with PROFIBUS PA Technical data 10.1.8 Supplementary Documentation Supplementary • Technical Information (TI390F/00/en) Documentation • Operating Instructions "Description of instrument functions" (BA291F/00/en) Endress + Hauser...

  • Page 102: Appendix

    Appendix Micropilot M FMR250 with PROFIBUS PA Appendix 11.1 Operating menu HART (display modul), ToF Tool basic setup media type tank shape medium cond. process cond. empty calibr. full calibr. liquid dome ceiling unknown standard enter value enter value horizontal cyl. DK: <...
  • Page 103 Micropilot M FMR250 with PROFIBUS PA Appendix dist./meas.value check distance range of mapping start mapping dist./meas.value distance = ok input of D and L dist. too small mapping range are displayed manual D and L are displayed pipe diameter dist. unknown enter value dist.

  • Page 104: Description Of Functions

    Appendix Micropilot M FMR250 with PROFIBUS PA 11.2 Description of functions Note! A detailed description of the function groups, functions and parameters is given in the documentation BA291F/00/en "Description of the instrument functions of the Micropilot M" on the enclosed CD-ROM. Endress + Hauser...

  • Page 105: Function And System Design

    Micropilot M FMR250 with PROFIBUS PA Appendix 11.3 Function and system design 11.3.1 Function (Measuring principle) The Micropilot is a "downward-looking" measuring system, operating based on the time-of-flight method. It measures the distance from the reference point (process connection) to the product surface.
  • Page 106 • with a Personal Computer, FXA193 and the operating software "ToF Tool - FieldTool Package" respectively "FieldCare". The ToF Tool is a graphical operating software for instruments from Endress+Hauser that operate based on the time-of-flight principle (radar, ultrasonic, guided micro-impulse). It assists with commissioning, securing data, signal analysis and documentation of the measuring point.
  • Page 107 Micropilot M FMR250 with PROFIBUS PA Appendix 11.3.3 Patents This product may be protected by at least one of the following patents. Further patents are pending. • US 5,387,918 i EP 0 535 196 • US 5,689,265 i EP 0 626 063 •...

  • Page 108: Index

    Micropilot M FMR250 with PROFIBUS PA Index Index accessories ........78 level .
  • Page 109 Micropilot M FMR250 with PROFIBUS PA Index top target positioner ......14, 23 trouble-shooting ....... . 81 trouble-shooting instructions .
  • Page 110 Micropilot M FMR250 with PROFIBUS PA Index Endress + Hauser...
  • Page 111 Declaration of Contamination Erklärung zur Kontamination Because of legal regulations and for the safety of our employees and operating equipment, we need the "declaration of contamination", with your signature, before your order can be handled. Please make absolutely sure to include it with the shipping documents, or - even better - attach it to the outside of the packaging.
  • Page 112 www.endress.com/worldwide BA331F/00/en/11.05 71007774 CCS/FM+SGML 6.0 71007774...
