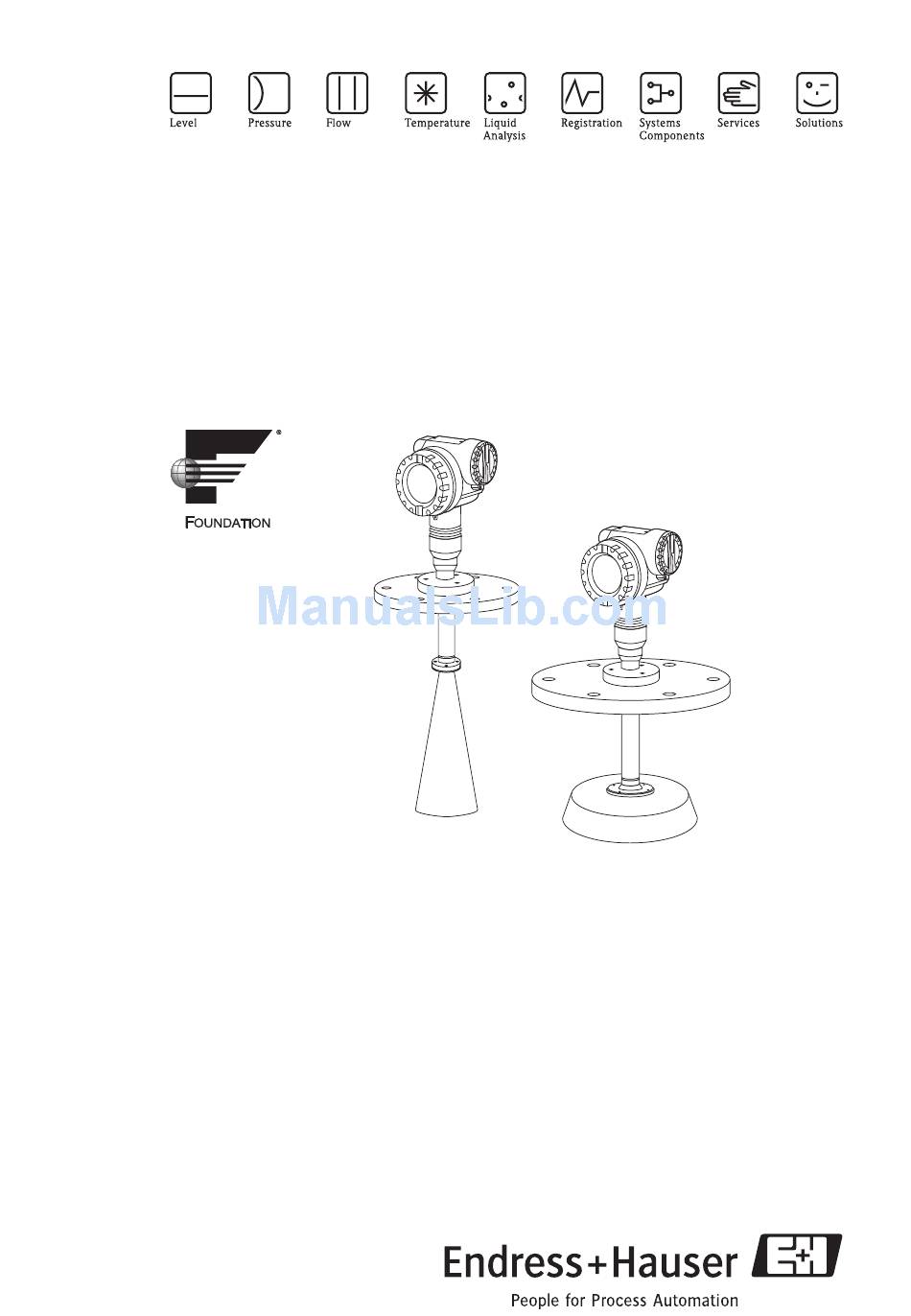

Brief Operating Instructions
Micropilot M FMR250
Level-Radar
These are Brief Operating Instructions.
For more detailed information, please refer to the Operating Instructions and the
additional documentation on the CD-ROM provided.
These Brief Operating Instructions are not intended to replace the Operating
Instructions provided in the scope of supply.
The complete device documentation consists of:
• These Brief Operating Instructions
• A CD-ROM with:
– The Operating Instructions
– Approvals and safety certificates
– Additional device-specific information
KA1017F/00/EN/12.09
71030625

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Micropilot M FMR250

Summary of Contents for Endress+Hauser Micropilot M FMR250

  • Page 1 Brief Operating Instructions Micropilot M FMR250 Level-Radar These are Brief Operating Instructions. For more detailed information, please refer to the Operating Instructions and the additional documentation on the CD-ROM provided. These Brief Operating Instructions are not intended to replace the Operating Instructions provided in the scope of supply.

  • Page 2: Table Of Contents

    Table of Contents Micropilot M FMR250 FOUNDATION Fieldbus Table of Contents 1 Safety instructions ..........3 1.1 Designated use .

  • Page 3: Safety Instructions

    Micropilot M FMR250 FOUNDATION Fieldbus Safety instructions Safety instructions Designated use The Micropilot M is a compact radar level transmitter for the continuous, contactless measurement of liquids, pastes and sludge. The device can also be freely mounted outside closed metal vessels because of its operating frequency of about 26 GHz and a maximum radiated pulsed energy of 1 mW (average power output 1μW).

  • Page 4: Return

    Safety instructions Micropilot M FMR250 FOUNDATION Fieldbus 1.3.1 FCC approval This instrument complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This instrument may not cause harmful interference, and this instrument must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Mounting

    Micropilot M FMR250 FOUNDATION Fieldbus Mounting Mounting Quick installation guide At mounting adjust the marking at the instrument flange! Installation in vessel (free space): Mark on process connector facing the nearest vessel wall! ° mark at instrument flange or threaded boss °...

  • Page 6: Installation

    Mounting Micropilot M FMR250 FOUNDATION Fieldbus Installation 2.3.1 Mounting kit For the mounting , you will require the following tool: • The tool for flange mounting • A key AF60 for threaded boss • 4 mm (0.16 in) Allen wrench for turning the housing 2.3.2 General installation instructions...
  • Page 7 Micropilot M FMR250 FOUNDATION Fieldbus Mounting Standard installation FMR250 with parabolic antenna • Ideally the parabolic antenna should protrude from the nozzle (1). Particularly when using the top target positioner, please ensure that the parabolic reflector is protruding from the nozzle/roof so as not to inhibit alignment.
  • Page 8 Mounting Micropilot M FMR250 FOUNDATION Fieldbus 2.3.4 Mounting with top target positioner Using top target positioner it is possible to tilt the antenna axis by up to 15° in all directions. The top target positioner is used for the optimum alignment of the radar beam with the bulk solids surface.
  • Page 9 Micropilot M FMR250 FOUNDATION Fieldbus Mounting 2.3.6 Orientation • Recommended distance (1) wall - outer edge of nozzle: ~1/6 of tank diameter. Nevertheless the device should not be installed closer than 20 cm (7.87 in) to the tankwall. Note! If the tank wall is not smooth (corrugated metal, welding seams, irregularities etc.)
  • Page 10 Mounting Micropilot M FMR250 FOUNDATION Fieldbus 2.3.7 Engineering hints Vessel installations • Avoid any installations (1), like limit switches, struts, etc., inside the signal beam (→ ä 11). • Symmetrical installations (2), i.e. reinforcing rings, heating coils, etc., can also interfere with the measurement.
  • Page 11 Micropilot M FMR250 FOUNDATION Fieldbus Mounting 2.3.8 Beam angle α The beam angle is defined as the angle where the energy density of the radar waves reaches half the value of the maximum energy density (3dB-width). Microwaves are also emitted outside the signal beam and can be reflected off interfering installations.
  • Page 12 Mounting Micropilot M FMR250 FOUNDATION Fieldbus 2.3.9 Measuring conditions • The measuring range begins, where the beam hits the vessel bottom. Particularly with dish bottoms or conical outlets the level cannot be detected below this point. The maximum measuring range can be increased in such applications by using an alignment unit (→ ä 10).

  • Page 13: Post-Installation Check

    Micropilot M FMR250 FOUNDATION Fieldbus Mounting 2.3.10 Turn housing After mounting, the housing can be turned 350° in order to simplify access to the display and the terminal compartment. Proceed as follows to turn the housing to the required position: •...

  • Page 14: Wiring

    Wiring Micropilot M FMR250 FOUNDATION Fieldbus Wiring Warning! When using the measuring instrument in hazardous areas, installation must comply with the corresponding national standards and regulations and the Safety Instructions or Installation or Control Drawings. " Caution! Before connection please note the following: •...

  • Page 15: Wiring In T12 Housing

    Micropilot M FMR250 FOUNDATION Fieldbus Wiring Wiring in T12 housing Unscrew housing cover (1). Insert cable (2) through gland (3). Use screened, twisted wire pair. Connect cable screen to the grounding terminal (4) within the terminal compartment. Make connection (see terminal assignment).

  • Page 16: Terminal Assignment

    Wiring Micropilot M FMR250 FOUNDATION Fieldbus Terminal assignment plant ground – L00-FMxxxxxx-04-00-00-en-013 Cable specification FOUNDATION Fieldbus Twisted, shielded pairs must be used. The cable specifications can be taken from the FF specification or IEC 61158-2. The following have been found suitable: •...

  • Page 17: Screening/Potential Matching

    Micropilot M FMR250 FOUNDATION Fieldbus Wiring Current consumption • Device basic current: 15 mA • Device In-rush current: ≤15 mA • Error current FDE (Fault Disconnection Electronic): 0 mA Screening/potential matching • You achieve optimum screening against disturbances if the screening is connected on both sides (in the cabinet and on the device).

  • Page 18: Operation

    Operation Micropilot M FMR250 FOUNDATION Fieldbus Operation General structure of the operating menu The operating menu is made up of two levels: • Function groups (00, 01, 03, …, 0C, 0D): The individual operating options of the instrument are split up roughly into different function groups.

  • Page 19: Display And Operating Elements

    Micropilot M FMR250 FOUNDATION Fieldbus Operation The third digit numbers the individual functions within the function group: → • basic setup • media type • tank shape • medium property • process cond. Here after the position is always given in brackets (e.g. "tank shape" (002)) after the described function.
  • Page 20 Operation Micropilot M FMR250 FOUNDATION Fieldbus 4.2.1 Display Headline Position indicato ENDRESS + HAUSER Symbol Main value Bargraph Unit – Selection list Help text +21dB Envelope curve 0 00 2 305m 10 00 L00-FMRxxxxx-07-00-00-en-003 4.2.2 Display symbols The following table describes the symbols that appear on the liquid crystal display:...
  • Page 21 Micropilot M FMR250 FOUNDATION Fieldbus Operation 4.2.3 Key assignment Key(s) Meaning Navigate upwards in the selection list. Edit numeric value within a function. Navigate downwards in the selection list. Edit numeric value within a function. Navigate to the left within a function group.

  • Page 22: Commissioning

    Commissioning Micropilot M FMR250 FOUNDATION Fieldbus Commissioning Function check Make sure that all final checks have been completed before you start up your measuring point: • Checklist "Post-installation check", → ä 13. • Checklist "Post-connection check", → ä 17. Switching on the measuring device...

  • Page 23: Overview Basic Setup

    Micropilot M FMR250 FOUNDATION Fieldbus Commissioning Overview Basic Setup level measurement in liquids level measurement in solids flange: flange: reference point of reference point of measurement measurement E = empty calibr. (= zero), setting in 005 F = full calibr. (= span), setting in 006...
  • Page 24 Commissioning Micropilot M FMR250 FOUNDATION Fieldbus " Caution! The basic setup is sufficient for successful commissioning in most applications. Complex measuring operations necessitate additional functions that the user can use to customise the Micropilot as necessary to suit his specific requirements. The functions available to do this are described in detail in the BA291F/00/EN.

  • Page 25: Basic Setup With The Device Display

    Micropilot M FMR250 FOUNDATION Fieldbus Commissioning Basic Setup with the device display 5.4.1 Function "measured value" (000) ⇒ ENDRESS + HAUSER – This function displays the current measured value in the selected unit (see "customer unit"(042) function). The number of digits after decimal point can be selected in the "no.of decimals"...
  • Page 26 Commissioning Micropilot M FMR250 FOUNDATION Fieldbus 5.4.4 Function "tank shape" (002), liquids only ⇒ ENDRESS + HAUSER – This function is used to select the tank shape. Selection: • dome ceiling • horizontal cyl • bypass • stilling well • flat ceiling •...
  • Page 27 Micropilot M FMR250 FOUNDATION Fieldbus Commissioning 5.4.5 Function "medium property" (003), liquids only ⇒ ENDRESS + HAUSER – This function is used to select the dielectric constant. Selection: • unknown • DC: < 1.9 • DC: 1.9 ... 4 • DC: 4 ... 10 •...
  • Page 28 Commissioning Micropilot M FMR250 FOUNDATION Fieldbus standard calm surface turb. surface For all applications that do not fit into Storage tanks with immersion tube or Storage / buffer tanks with rough any of the following groups. bottom filling. surface due to free filling or mixer nozzles.
  • Page 29 Micropilot M FMR250 FOUNDATION Fieldbus Commissioning 5.4.7 Function "vessel / silo" (00A), solids only ⇒ ENDRESS + HAUSER – This function is used to select the vessel / silo. Selection: • unknown • metal silo • concrete silo • bin / bunker •...
  • Page 30 Commissioning Micropilot M FMR250 FOUNDATION Fieldbus 5.4.9 Function "process cond." (00C), solids only ⇒ ENDRESS + HAUSER – This function is used to select the process conditions. Selection: • standard • fast change • slow change • test: no filter 5.4.10 Function "empty calibr."...
  • Page 31 Micropilot M FMR250 FOUNDATION Fieldbus Commissioning 5.4.12 Function "pipe diameter" (007) ⇒ ENDRESS + HAUSER – This function is used to enter the pipe diameter of the stilling well or bypass pipe.Microwaves propagate more slowly in pipes than in free space. This effect depends on the inside diameter of the pipe and is automatically taken into account by the Micropilot.
  • Page 32 Commissioning Micropilot M FMR250 FOUNDATION Fieldbus L00-FMR2xxxx-14-00-06-en-010 distance = ok • mapping is carried out up to the currently measured echo • The range to be suppressed is suggested in the "range of mapping"(052) function Note! Anyway, it is wise to carry out a mapping even in this case.
  • Page 33 Micropilot M FMR250 FOUNDATION Fieldbus Commissioning 5.4.15 Function "range of mapping" (052) ⇒ ENDRESS + HAUSER – This function displays the suggested range of mapping. The reference point is always the reference point of the measurement (→ ä 23). This value can be edited by the operator. For manual mapping, the default value is: 0 m.

  • Page 34: Envelope Curve With The Instrument Display

    Commissioning Micropilot M FMR250 FOUNDATION Fieldbus 5.4.17 Function "dist./meas.value" (008) ⇒ ENDRESS + HAUSER – The distance measured from the reference point to the product surface and the level calculated with the aid of the empty adjustment are displayed. Check whether the values correspond to the actual meas.
  • Page 35 Micropilot M FMR250 FOUNDATION Fieldbus Commissioning 5.5.2 Function "recording curve" (0E2) This function defines whether the envelope curve is read as a • single curve or • cyclic ⇒ ENDRESS + HAUSER – Note! • If the cyclical envelope curve is active in the display, the measured value is refreshed in a slower cycle time.
