Summary of Contents for Canon MultiPASS F20

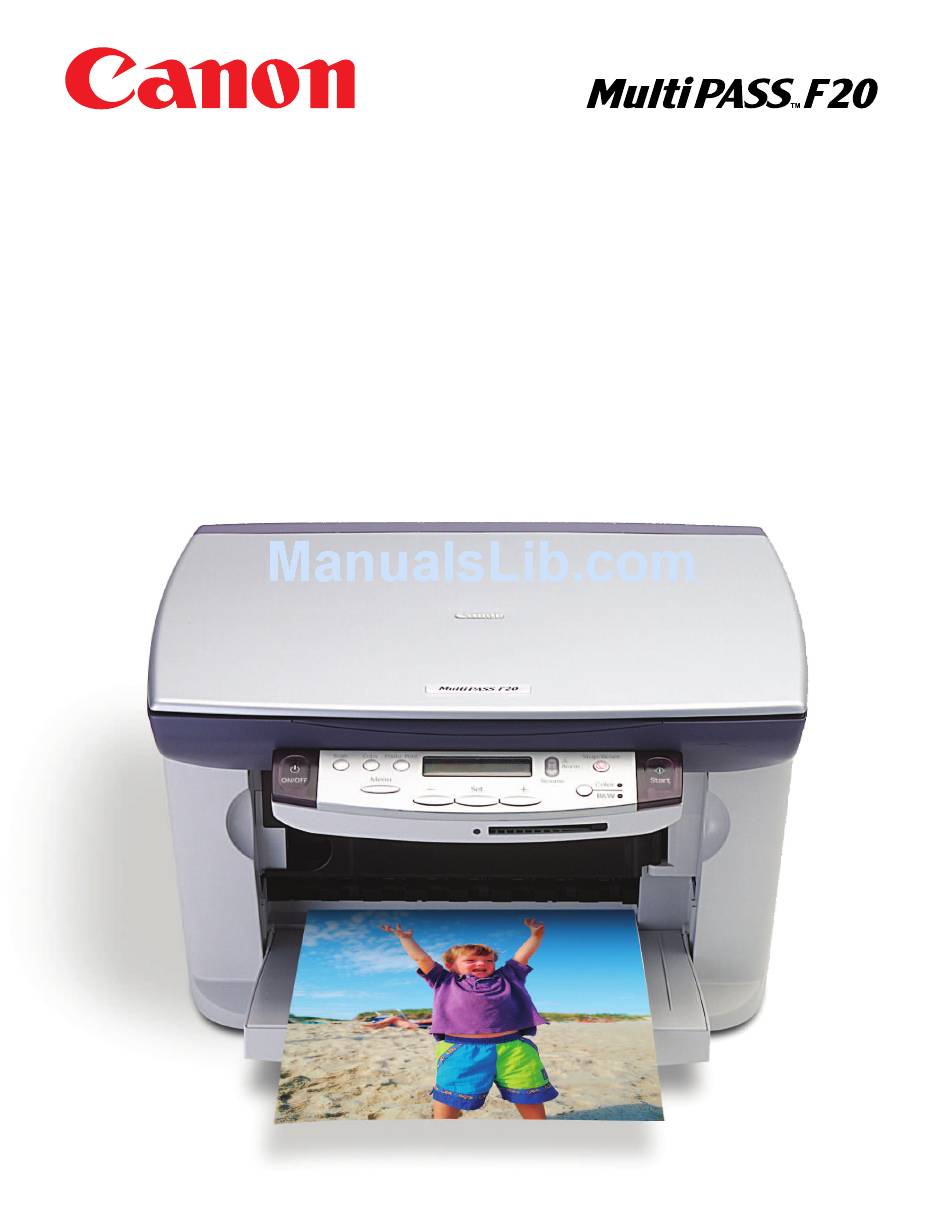

  • Page 1 Basic Guide...
  • Page 2 Copyright Copyright © 2002 by Canon Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of Canon Inc.

  • Page 3: How To Use The Documentation Provided

    How to use the documentation provided Printed sheet This sheet includes instructions for setting up your machine and getting it ready for use. Follow all steps in this sheet before using your machine. Printed manual NOTE • In addition to the above documentation, you can also refer to the online help in the MultiPASS Suite software for online information about a window or dialog box, and for step by step instructions on performing MultiPASS Suite tasks.

  • Page 4: Type Conventions

    Software Refer to the MultiPASS Suite Software User’s Guide (included in the Guide CD-ROM) for more details. machine or printer General term used to represent the MultiPASS F20. default A setting that remains in effect unless you change it. document The original sheet(s) of paper you copy or scan with the machine.

  • Page 5: Table Of Contents

    Contents 1: Introduction What your machine can do ...1-1 Main components of the machine ...1-2 Operation panel of the machine ...1-3 2: Document handling Document requirements...2-1 Loading documents...2-1 3: Print media handling Recommended print media and requirements...3-1 General print media guidelines ...3-5 Setting the paper thickness lever ...3-6 Setting the print media size and type...3-7 Loading print media ...3-8...
  • Page 6 9: Maintenance Replacing ink tanks ...9-1 Low ink warning ...9-1 When to replace an ink tank ...9-1 Guidelines ...9-1 Replacing an ink tank ...9-2 Resetting the ink counter...9-4 Checking the ink level ...9-4 Maintaining the printhead ...9-5 Flowchart of printhead maintenance...9-5 Printing the nozzle check pattern...9-6 Cleaning the printhead...9-6 Aligning the printhead...9-7...

  • Page 7: Safety Information

    Safety information Read this safety information thoroughly before using your machine and keep it handy in case you need to refer to it later. WARNING • This product emits low level magnetic flux. If you use a cardiac pacemaker and feel abnormalities, please move away from this product and consult your doctor.

  • Page 8: Power Supply

    • To ensure proper ventilation, make sure the machine is approximately 4 inches (10 cm) away from walls and other equipment. Power supply WARNING • Do not damage or modify the power cord and power plug. Also do not place heavy objects on the power cord, pull on it, or extensively bend it.
  • Page 9 Then contact the Canon Customer Care Center. • Do not use any highly flammable sprays near the machine. If gas from a spray comes into contact with the electrical components inside the machine, it will result in fire.
  • Page 10 WARNING • Do not service the machine yourself except as specifically described in this guide. If further servicing is required, contact the Canon Customer Care Center. • Keep the machine clean. Dust accumulation may prevent the machine from operating properly.

  • Page 11: Use Of Images

    • Motor vehicle licenses and certificates of title Users in the USA FCC Notice MultiPASS F20: H12260 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept an interference received, including interference that may cause undesired operation.

  • Page 12: Users In Canada

    Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Canon U.S.A. Inc. One Canon Plaza, Lake Success, NY 11042, U.S.A. TEL No. (516) 328-5600 CANON CANADA INC. 1-800-OK-CANON...

  • Page 13: What Your Machine Can Do

    Chapter Introduction What your machine can do Thank you for purchasing the Canon MultiPASS F20. Your machine incorporates the following functions in one simple-to-operate device: Printer • • • • • • • • • • • • • •...

  • Page 14: Main Components Of The Machine

    Main components of the machine q Document cover w Multi-purpose tray e Tray extension r [Eject] button t Card slot y Indicator light u Paper output tray Introduction i Tray extension o Operation panel !0 Platen glass !1 Inner cover !2 Printhead holder !3 Paper thickness lever Chapter 1...

  • Page 15: Operation Panel Of The Machine

    Operation panel of the machine q [ON/OFF] key Turns the machine on and off (keep pressed for a brief interval). Before turning on the machine, make sure the document cover is closed. w [Copy] key Switches the machine to copy mode. e [Scan] key Scans a document to your computer according to the action selected.
  • Page 16 NOTE • The power cannot be turned off when the machine is operating. • Your machine performs printhead cleaning every time you plug in the machine. This ensures optimum print quality but also consumes a small amount of ink during the cleaning process. For this reason, it is recommended that you only turn the machine off with [ON/OFF] when instructed to do so in this guide.

  • Page 17: 2: Document Handling

    Chapter Document handling Document requirements The documents you load on the platen glass for copying or scanning must meet these requirements: Document • All types of documents type • Photographs • Book Size (W × L) × 11 ! / 2 Max.
  • Page 18 Document handling Chapter 2...
  • Page 19 Paper thickness lever position: Right Use for: Printing from your computer • You may be able to load other envelope sizes, but Canon cannot guarantee consistent performance on these. • Do not use the following types of envelopes since they may cause problems: –...
  • Page 20 Bubble Jet Paper LC-301 Developed for high quality printing with minimal or no smearing when in contact with water or damp surfaces. This specially coated paper produces bright and vivid colors and stands up to normal office highlighters. Size: Letter, A4 Quantity: Approx.

  • Page 21: Matte Photo Paper Mp

    Use for: Printing from your computer • Load the paper with the glossy side facing up. • In the printer driver, select “Photo Paper Plus Glossy” as the print media type. • Remove each sheet as soon as it is printed.
  • Page 22 High Gloss Photo Film HG-201 A bright white finish film that lends striking visual power to charts, graphs, and photographic images. It creates a sharper and more vivid color output than is possible with coated paper. Size: Letter, A4 Quantity: 1 sheet Paper thickness lever position: Left Drying time: 2 minutes Use for: Printing from your computer/copying...

  • Page 23: General Print Media Guidelines

    – Print media that is too thin (It should be at least 17 lb. or 64 g/m – Print media that is too thick (It should not be more than 28 lb. or 105 g/m Canon print media.) – Print media with holes (e.g. punched holes) –...

  • Page 24: Setting The Paper Thickness Lever

    Setting the paper thickness lever The paper thickness lever adjusts the gap between the printhead and the print media to suit the print media’s thickness. Before printing, be sure to set the paper thickness lever. Follow this procedure to set the paper thickness lever: Open the inner cover.

  • Page 25: Setting The Print Media Size And Type

    Setting the print media size and type For copying, you need to set the size and type of print media loaded in the multi-purpose tray. NOTE • For documents printed from your computer, you can specify the print media size and type on your computer ( Software Guide).

  • Page 26: Loading Print Media

    Loading print media Loading paper Follow this procedure to load paper in the multi-purpose tray: Open the multi-purpose tray tray extension w. Place a stack of paper (print side up) in the multi-purpose tray q and adjust the paper guide A to the width of the stack w.
  • Page 27 Remove any curling by holding the edges diagonally and bending them gently. If the edges of the envelope are inflated or are curling up, place the envelope on a desk and with a pen press down on it moving from the center toward the edges of the envelope.

  • Page 28: Loading Banner Paper

    Loading banner paper NOTE • Always leave an extra sheet at the end of the banner—just in case the type runs over. • Printing on banner paper may require considerable amounts of ink so use new ink tanks if necessary. •...

  • Page 29: 4: The Multipass Suite Software

    Chapter The MultiPASS Suite software Basic operation Installing the software If you have not already installed the software as explained in the Setup Sheet, please do so now. For instructions, see the System requirements To successfully install and operate the MultiPASS Suite, your system must meet the following requirements: •...

  • Page 30: Software Components Of The Multipass Suite

    Software components of the MultiPASS Suite The following components are installed when you install the MultiPASS Suite software: Printer driver ( Chapter 5) Enables you to print from any Windows application that supports printing. Scan driver: ScanGear for MultiPASS (Windows 98/Me/2000/XP) or WIA Driver...

  • Page 31: My Multipass

    My MultiPASS My MultiPASS is a folder that contains the Scan to Save folder that stores scanned images. q Scan to Save folder—Stores scanned images in the My Pictures folder, or if not available, in the My Documents folder or Scan to Save folder. My MultiPASS works within Windows Explorer and thus has a similar structure.

  • Page 32: Multipass Viewer

    MultiPASS Viewer The MultiPASS Viewer allows you to open and view documents stored in the Scan to Save folder. Once open in the Viewer, if you want to edit your document, you can open it in the MultiPASS Photo Enhancer to make advanced image adjustments, such as applying filters or effects to your document.

  • Page 33: Multipass Status Monitor

    MultiPASS Status Monitor The MultiPASS Status Monitor shows the current status of the machine and any errors that need your attention. It cannot interrupt any activities. When the Status Monitor is open, it displays as a window on the Windows desktop and as an icon in the Windows taskbar.
  • Page 34 The MultiPASS Suite software—Basic operation Chapter 4...

  • Page 35: 5: Printing From Your Computer

    Is the machine selected as the default printer? You can check if your machine is set as the default printer when you open the Print dialog box in an application and your machine is selected in the Printer box (see below for details).

  • Page 36: Canceling Printing

    On the Windows desktop, click [Start], point to [Settings], then click [Printers] (Windows XP: Click [Start], then click [Printers and Faxes]). In the Printers (Printers and Faxes) window, double-click the printer icon, right click the print job, then click [Cancel Printing] or [Cancel].

  • Page 37: Changing Print Settings Manually

    Changing print settings manually Follow this procedure to change print settings manually: With your document open in the Windows application, click the print command. • In most applications, the print command is on the File menu or toolbar. In the Print dialog box, click [Properties]. In the Properties dialog box, define your settings on the appropriate tabs or dialog boxes.
  • Page 38 Printing from your computer—Basic operation Chapter 5...

  • Page 39: Documents You Can Copy

    Chapter Copying Documents you can copy For information on the types of documents you can copy, their requirements, and details on loading them, see Chapter 2. Making copies Follow this procedure to make color or black & white copies: Load the document on the platen glass. •...

  • Page 40: Improving Copied Images

    Improving copied images Setting color or black & white copying Refer to Making copies on p. 6-1 and in step 4, set color or black & white copying as follows: For color copying: Press [Color/B&W] to turn on the Color light. For black &...

  • Page 41: Reducing Or Enlarging A Copy

    Reducing or enlarging a copy You can reduce or enlarge copies in three different ways: using preset copy ratios, using custom copy ratios, or automatically reducing or enlarging an image to fit on the print media size selected. Using preset copy ratios Refer to aking copies on p.

  • Page 42: Copying An Image To Fit The Page

    Copying an image to fit the page If the document to be copied is on paper larger or smaller than the specified print media size p. 3-7), you can automatically reduce or enlarge the image to fit the selected print media size.

  • Page 43: Advanced Copy Features

    Advanced copy features Copying two pages on a single page This feature allows you to reduce two pages to fit onto one page. NOTE • If MEMORY FULL appears in the LCD when copying, set the image quality setting to <B&W TEXT> or <COLOR NORMAL>...

  • Page 44: Borderless Copying

    Borderless copying This feature allows you to copy colored images that fill the entire page without borders. NOTE • Use specialty papers with this feature ( • Note that with letter-size paper, a margin may still appear. • You can only use this feature when the print media type setting is set to <GLOSSY>, <H.RES.>, or <PHOTO>.

  • Page 45: Repeating An Image On A Page

    Repeating an image on a page This feature allows you to copy an image several times onto a single page. You can set the machine to automatically select the number of times it repeats the image ( can specify the number ( Preparing your image to repeat it manually To successfully repeat an image manually (with the <MANUAL>...
  • Page 46 Copying your image Follow this procedure to automatically or manually repeat an image on a page: Load the document on the platen glass. Press [Copy]. Use [2] or [3] to select the number of copies. Adjust any necessary settings for your document ( Press [Menu] five times.

  • Page 47: Creating A Mirror Image

    Creating a mirror image This feature allows you to make a mirror copy of a document. Use this feature when copying onto T-shirt transfers so that the image appears the right way when ironed onto fabric. Follow this procedure to make a mirror copy: Load the document on the platen glass.

  • Page 48: Shrinking An Image To Fit The Page

    Shrinking an image to fit the page If the image to be copied is larger than the output print media, this feature will automatically reduce the image to fit the print media size on which it will be copied. NOTE •...

  • Page 49: 7: Scanning-Basic Operation

    Chapter Scanning Basic operation Before scanning Before scanning, check the following: Have you installed the MultiPASS Suite software? If not, see the Setup Sheet or the Software Guide. Does the document you want to scan meet the requirements for loading on the platen glass? For details, see Chapter 2.

  • Page 50: Customizing Toolbar Buttons

    On the Windows desktop, on the MultiPASS Toolbar, click the appropriate scan button. q Scans the document and automatically attaches it to an e-mail message in your e-mail application. w Scans and saves the document in the My MultiPASS Scan to Save folder ( e Scans the document and automatically displays it in a graphic application (which you can specify).

  • Page 51: Scanning From Within An Application

    Follow this procedure to customize Toolbar buttons: On the Windows desktop, on the MultiPASS Toolbar, click [Settings]. Select the tab for the button you want and modify as necessary. Click [OK]. For details on each setting, refer to the online help or the Software Guide. Scanning from within an application You can scan documents directly from TWAIN or WIA (Windows XP) compliant Windows applications.

  • Page 52: Using The [Scan] Key On The Operation Panel

    Using the [Scan] key on the operation panel You can assign a scan action to the [Scan] key on the operation panel so that you only have to press this key to perform the action. For example, you can set it to display the toolbar, or to perform one of the actions of the Toolbar scan buttons.

  • Page 53: 8: Photo Printing From A Memory

    Chapter Photo printing from a memory card This feature allows you to insert a memory card (with a PC card adapter) into your machine and print photographs directly from it. Compatible memory cards The following cards are compatible with the machine: •...

  • Page 54: Inserting/Removing A Memory Card

    Inserting/removing a memory card Inserting a memory card To use a memory card, you will need to insert it into a PC card adapter before inserting it in the card slot. Do not attempt to insert it into the card slot without a PC card adapter. Make sure the machine is on.

  • Page 55: Printing Methods

    Press [Eject] q and remove the PC card adapter w. • Do not remove the memory card and PC card adapter separately from the card slot. Printing methods There are different methods for printing photographs from a memory card. Follow this general procedure to print photographs: Print an index ( photographs in the memory card.

  • Page 56: Printing An Index

    Printing an index This printing method prints thumbnails of the photographs in a memory card. An index is useful to see small versions of all photographs in a memory card without having to print each photograph individually. When you print an index, a number A is assigned to each thumbnail. You will need these numbers to select the photographs you want to print in a larger format.

  • Page 57: Printing All Frames

    Use [2] or [3] to select the print media type. • Select from the following: – <PHOTO PAPER PRO> – <PLAIN PAPER> • If you selected <4" × 6"> in step 7, you can only select <PHOTO PAPER PRO>. Press [Set]. Press [Start].
  • Page 58 Press [Set]. S E L E C T P A P E R T Y P E P H O T O P A P E R P R O Use [2] or [3] to select the print media type. •...

  • Page 59: Printing A Single Frame

    Printing a single frame This printing method prints a specified single photograph from a memory card. In order to select the photograph you want to print, you will need to print the index and note the number assigned to the photograph. To print an index, see p. 8-4. Without a border Follow this procedure to print a single photograph on a memory card: Load the correct print media in the multi-purpose tray.
  • Page 60 Use [2] or [3] to select the print media size. • Select: – <LTR> for letter-size print media. – <4" × 6"> for card-size print media. – <A4> for A4-size print media. Press [Set]. S E L E C T P A P E R T Y P E P H O T O P A P E R P R O Use [2] or [3] to select the print media type.

  • Page 61: Printing A Range Of Frames

    Printing a range of frames This printing method prints a range of photographs in sequence on a memory card. In order to select the photographs you want to print, you will need to print the index and note the numbers assigned to them. To print an index, see p. 8-4. Without borders Follow this procedure to print selected photographs in sequence on a memory card: Load the correct print media in the multi-purpose tray.
  • Page 62 Press [Set]. S E L E C T P A P E R S I Z E L T R Use [2] or [3] to select the print media size. • Select: – <LTR> for letter-size print media. – <4" × 6"> for card-size print media. –...

  • Page 63: Dpof (Digital Print Order Format) Printing

    DPOF (Digital Print Order Format) printing This printing method prints photographs according to the Digital Print Order Format (DPOF) settings specified on your digital camera. The machine supports the following DPOF functions: • Specified frames printed • Print style (individual photographs, index) •...
  • Page 64 Press [Set]. S E L E C T P A P E R T Y P E P H O T O P A P E R P R O Use [2] or [3] to select the print media type. •...

  • Page 65: Setting Vivid Photo Printing

    Setting vivid photo printing Enabling this setting will make photographs appear more vibrant, especially blues and greens. It is also effective for photographs that were not taken with the correct exposure. NOTE • Printing will take longer when this setting is enabled. •...

  • Page 66: Setting Date Printing

    Setting date printing Enabling this setting will print the date, recorded by the digital camera, below each thumbnail on an index A or on the bottom right of the photograph B. Enable or disable this setting before printing photographs from a memory card. NOTE •...

  • Page 67: Replacing Ink Tanks

    – Color ink tank: BCI-24 Color • To ensure optimum printing results and to avoid printing problems, Canon recommends using original Canon ink tanks only. Damage caused by using refilled ink tanks is not covered by Canon’s warranty. • Replaced ink tanks should be new. If you install partially used ink tanks, the nozzles may block and the ink counter may not be accurate.

  • Page 68: Replacing An Ink Tank

    • Replace ink tanks quickly. Once installed, do not remove from the machine and leave out in the open. Doing so may cause the ink tank not to function when reinstalled in the machine. Replacing an ink tank This section describes how to replace an ink tank. Before replacing an ink tank, be sure to read the section When to replace an ink tank ( CAUTION...
  • Page 69 CAUTION • Do not touch the ink port B. Insert the ink tank into the empty slot on the printhead. Press firmly on the ink tank’s tab until it clicks into place. If you need to replace the other ink tank, repeat steps 3 to 5.

  • Page 70: Resetting The Ink Counter

    Resetting the ink counter The ink counter keeps track of how much ink is left in the ink tanks allowing the machine to warn you when ink is running low. It also allows you to check the current ink level of the ink tanks at any time.

  • Page 71: Maintaining The Printhead

    If there is no improvement. Step 4 Replace the ink tank(s) ( If there is no improvement. The printhead may be damaged. Contact the Canon Customer Care Center. Chapter 9 Step 1 p. 9-6). The printhead is misaligned. Align the printhead ( p.

  • Page 72: Printing The Nozzle Check Pattern

    Printing the nozzle check pattern The nozzle check pattern shows if each printhead nozzle is operating properly. NOTE • You can also print the nozzle check pattern from your computer ( Follow this procedure to print the nozzle check pattern from the machine: Load letter- or A4-size plain paper in the multi-purpose tray.

  • Page 73: Aligning The Printhead

    Aligning the printhead To align the printhead after you have just installed it, follow the procedure in the Setup Sheet. If you have printed the nozzle check pattern ( needs aligning, align it from the operation panel or from the MultiPASS Suite software. Aligning the printhead from the operation panel Follow this procedure to align the printhead from the operation panel: Load letter- or A4-size plain paper in the multi-purpose tray.
  • Page 74 In the Printers (Printers and Faxes) window, click the machine icon. On the File menu, click [Properties] or [Printing Preferences...]. In the Properties dialog box, on the Maintenance tab, click the printhead alignment icon. Follow the on-screen instructions. In column A on the printout, note which box has the most solid image.

  • Page 75: Cleaning Your Machine

    Cleaning your machine This section describes the necessary cleaning procedures for your machine. CAUTION • Be sure to turn off the power and disconnect the power cord before cleaning the machine. • Do not use tissue paper, paper towels, or similar materials for cleaning; they can stick to the components or generate static charges.
  • Page 76 9-10 Maintenance Chapter 9...

  • Page 77: Problems Installing And Removing

    3. Did you install an earlier version of the MultiPASS Suite software (version 4.2 or earlier)? (Is Canon MultiPASS registered as the startup item in the Start menu program?) Remove the old version of the MultiPASS Suite software following the instructions in the Software Guide of that version and try reinstalling the new version.

  • Page 78: Problems Turning On The Computer

    1. On the Windows desktop, click [Start], then [Control Panel]. 2. In the Control Panel window, click [Performance and Maintenance], then [System]. 3. On the Hardware tab, click [Device Manager]. Under Other Devices, click [MultiPASS F20], then press the [Delete] key.

  • Page 79: Problems Printing From Your Computer

    2. Is the server set up for printer sharing? Set up the server for printer sharing ( 3. Is the server set up to allow your system access to the shared printer? Set up the server to allow your system access to the shared printer.

  • Page 80: Paper Does Not Feed Properly

    2. Is intensity set too high? The paper may curl or rub if intensity is set too high in the printer driver. In the Properties dialog box, on the Main tab, click [Manual] in Color Adjustment, then click [Set]. In the Manual Color Adjustment dialog box, reduce the intensity with the Intensity slider.

  • Page 81: Copying Problems

    4. Is intensity set too high? The paper may curl or rub if intensity is set too high in the printer driver. In the Properties dialog box, on the Main tab, click [Manual] in Color Adjustment, then click [Set]. In the Manual Color Adjustment dialog box, reduce the intensity with the Intensity slider.

  • Page 82: Problems Scanning To A Computer

    1. On the Windows desktop, click [Start], then [Control Panel]. 2. In the Control Panel window, click [Printers and Other Hardware], then [Scanners and Cameras]. 3. If Canon MultiPASS F20 scanner is present, the machine is recognized. If not, remove the MultiPASS Suite and reinstall.
  • Page 83 When you click a button on the Toolbar, another application opens. When you click a button on the Toolbar, you want another application to open. 1. Set the application you want to open in Link To in the Toolbar Settings dialog box ( Guide).

  • Page 84: Problems Using A Memory Card

    Problems using a memory card See the information below if the memory card is not recognized when inserted into the card slot, or if the image data is not being read. Memory card is not recognized. 1. Is the memory card securely inserted into the card slot? When securely inserted, a PCMCIA-compatible memory card will click into position and the [EJECT] button will protrude a maximum of a Correct...
  • Page 85 Cannot write to the memory card (write protect error displayed in Windows). 1. Is the machine in photo print mode and card protection set to <ON>? Windows 98/ME: Switch to a different mode and set the <CARD PROTECT> setting to <OFF> ( Then disconnect and reconnect the USB cable.

  • Page 86: If Nothing Displays In The Lcd

    If nothing displays in the LCD (if there is no power) When you connect the power cord to the machine and wall outlet, and press [ON/OFF], the machine powers up and a message is displayed in the LCD. While the Alarm light blinks, the machine is initializing and you will not be able to use it. Wait until the Alarm light stops blinking.

  • Page 87: Removing Jammed Paper

    Removing jammed paper If <CLEAR PAPER JAM> is displayed in the LCD, follow this procedure to clear the paper jam. Removing jams in the paper output tray Follow this procedure to remove jams from the paper output tray: Gently pull any jammed paper out of the paper output tray.

  • Page 88: If There Are Repeated Paper Jams

    If the problem has been resolved, the Alarm light will turn off. If the Alarm light still lights even after you have turned the power on again Contact the Canon Customer Care Center. 10-12 Troubleshooting p.

  • Page 89: Lcd Messages

    Try switching to another mode or turning the machine off and on. If the message remains, contact the Canon Customer Care Center. Remove the memory card from the card slot, turn the power off and on again, then reinsert the memory card.
  • Page 90 Message Cause CLEAR PAPER JAM There is a paper jam. (PRESS START KEY) COLOR INK CHANGED? The machine is prompting you to confirm whether you replaced the color ink tank. COLOR INK LOW The ink level in the color ink tank is low.
  • Page 91 Allow the machine to cool down. The machine will resume printing when it has cooled down. If <CHECK PRINTER> then appears, contact the Canon Customer Care Center. Try to reinstall the printhead. If the message remains in the LCD, the printhead may be defective.

  • Page 92: Multipass Status Monitor Messages

    (1-757-413-2848) NOTE • Within Canada, call for technical support 24 hours a day, 7 days a week (1-800-OK-CANON). • Support program specifics are subject to change without notice. • Refer to the individual product information for warranty details.

  • Page 93: 11: Machine Settings

    Chapter Machine settings Accessing the machine settings Follow this procedure to change a setting: Refer to the lists on the following pages to find the setting you want to change. If there is a reference for the setting A, refer to that page for details.

  • Page 94: Settings

    Settings NOTE • Default settings are shown in bold type. Menu: ENLARGE/REDUCE Name Description PRESET RATIO Makes enlarged or reduced copies at preset ratios. ZOOM Makes enlarged or reduced copies at ratios between 25% and 400%. FIT-TO-PAGE Automatically reduces or enlarges an image to fit on the specified print media size.

  • Page 95: Menu: Maintenance

    Menu: MAINTENANCE Name Description NOZZLE CHECK Prints the nozzle check pattern. HEAD CLEANING Performs normal printhead cleaning. HEAD REFRESHING Performs deep printhead cleaning. ALIGN PRINT HEAD Aligns the printhead. HORIZ. PATTERN Prints the horizontal pattern. CHANGE H VALUE Selects the horizontal value for columns A to F on the printout.

  • Page 96: Menu: Photo Print Mode

    Menu: PHOTO PRINT MODE Name Description 1. PHOTO PRINT MODE INDEX — SELECT PAPER SIZE Selects the print media size for the index. SELECT PAPER TYPE Selects the print media type for the index. ALL FRAMES — SELECT PAPER SIZE Selects the print media size for the photographs.
  • Page 97 Name Description DPOF — SELECT PAPER SIZE Selects the print media size for the photographs. SELECT PAPER TYPE Selects the print media type for the photographs. BORDERLESS PRINT If you select <PHOTO PAPER PRO>, enables/disables borderless printing for the photographs. 2.
  • Page 98 11-6 Machine settings Chapter 11...

  • Page 99: General Specifications

    Appendix General specifications Power source Power consumption Weight (Components attached) Dimensions Environmental conditions Liquid Crystal Display (LCD) 20 Display languages Applicable standards Multi-purpose tray capacity Appendix Specifications 120 V/60 Hz • Maximum: Approx. 36.3 W • Standby: Approx. 6.3 W Approx.
  • Page 100 Printable areas Specifications Note on printing area illustrations: Printing area: Canon recommends that you print within (dark shade) this area. Printing area: The area where it is possible to print. (light shade) However, printing in this area can adversely affect print quality or paper feed precision.
  • Page 101 ! / 4 " (6.3 mm) Letter: ! / 8 " (3.4 mm) " (6.3 mm) ! / 4 Letter: " (3.4 mm) ! / 8 Appendix • Photo Paper Pro PC-101S printable areas: # / 8 Photo Paper Pro PC-101S: 4 "...

  • Page 102: System Requirements

    3-1 • Black printing: Fast: 14 pages/minute Standard: 10.5 pages/minute • Color printing: Fast: 10 pages/minute Standard: 4.7 pages/minute (Based on Canon standard pattern) 8 in. (203.2 mm) 2400 (horizontal) × 1200 (vertical) dpi " Max. ! / 4 (Max.

  • Page 103: Copy Specifications

    Features Appendix • Black & white: <DRAFT> Approx. 14 pages/minute (letter size) • Color: <COLOR FAST> mode approx. 10 pages/minute (letter size) (Based on BJ printer specific speed test pattern.) Maximum 99 copies 9 levels 25%–400% TWAIN/WIA (Windows XP) • Black & white text/grayscale: Min. 5 seconds/page (letter size) •...
  • Page 104 Specifications Appendix...

  • Page 105: Index

    BLACK INK LOW message 10-13 Borderless copying 6-6 Bubble Jet Paper LC-301 3-2 Canceling printing 5-2 CANNOT START message 10-13 Canon Customer Care Center 10-16 CARD READER BUSY message 10-13 CARD READER ERROR message 10-13 CARD READER OFFLINE message 10-13 Card slot 1-2, 8-2...
  • Page 106 3-7 setting type 3-7 PRINT PHOTO DATE menu 11-5 Print settings changing manually 5-3 changing with Print Advisor 5-2 Printer driver 4-2 selecting default 5-1 Printhead aligning from MultiPASS Suite 9-7, 9-8 aligning from operation panel 9-7 cleaning 9-6...
  • Page 107 holder 1-2 maintaining 9-5 Printing 5-1 canceling 5-2 problems 10-3 to 10-5 PROBLEM READING CARD message 10-15 Problems cannot solve 10-16 copying 10-5, 10-6 installing software 10-1, 10-2 power 10-10 printing from computer 10-3 to 10-5 removing software 10-1, 10-2 scanning 10-6, 10-7 turning on computer 10-2, 10-3 using memory card 10-8, 10-9...
  • Page 108 (the “product”) that you have purchased, when purchased and used in the United States. The product that you have purchased is the only product to which this warranty card and the limited warranty provided by Canon and stated on the card apply.
  • Page 109 (i) if you do not return your defective product to a Canon repair facility by the date specified by Canon and in the manner described below; (ii) if the defect(s) in the product is/are not covered by this limited warranty;...
  • Page 110 Basic Guide Canon U.S.A., Inc. One Canon Plaza, Lake Success, NY 11042, U.S.A. Canon Inc. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan Canon Australia Pty. Ltd. 1 Thomas Holt Drive, North Ryde, Sydney, N.S.W. 2113, Australia Canon Canada, Inc. 6390 Dixie Road, Mississauga, Ontario, L5T 1P7, Canada...
