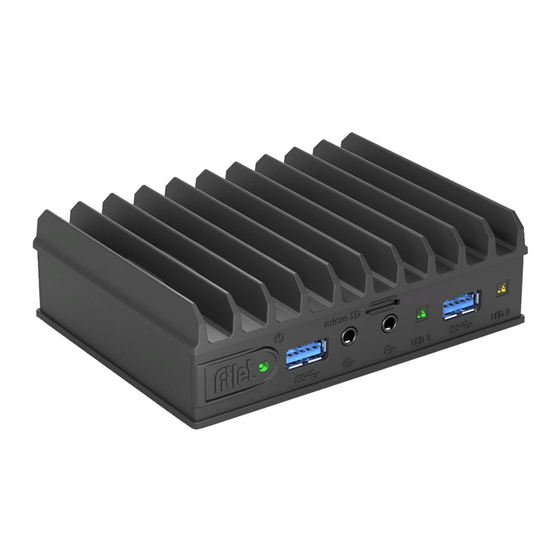

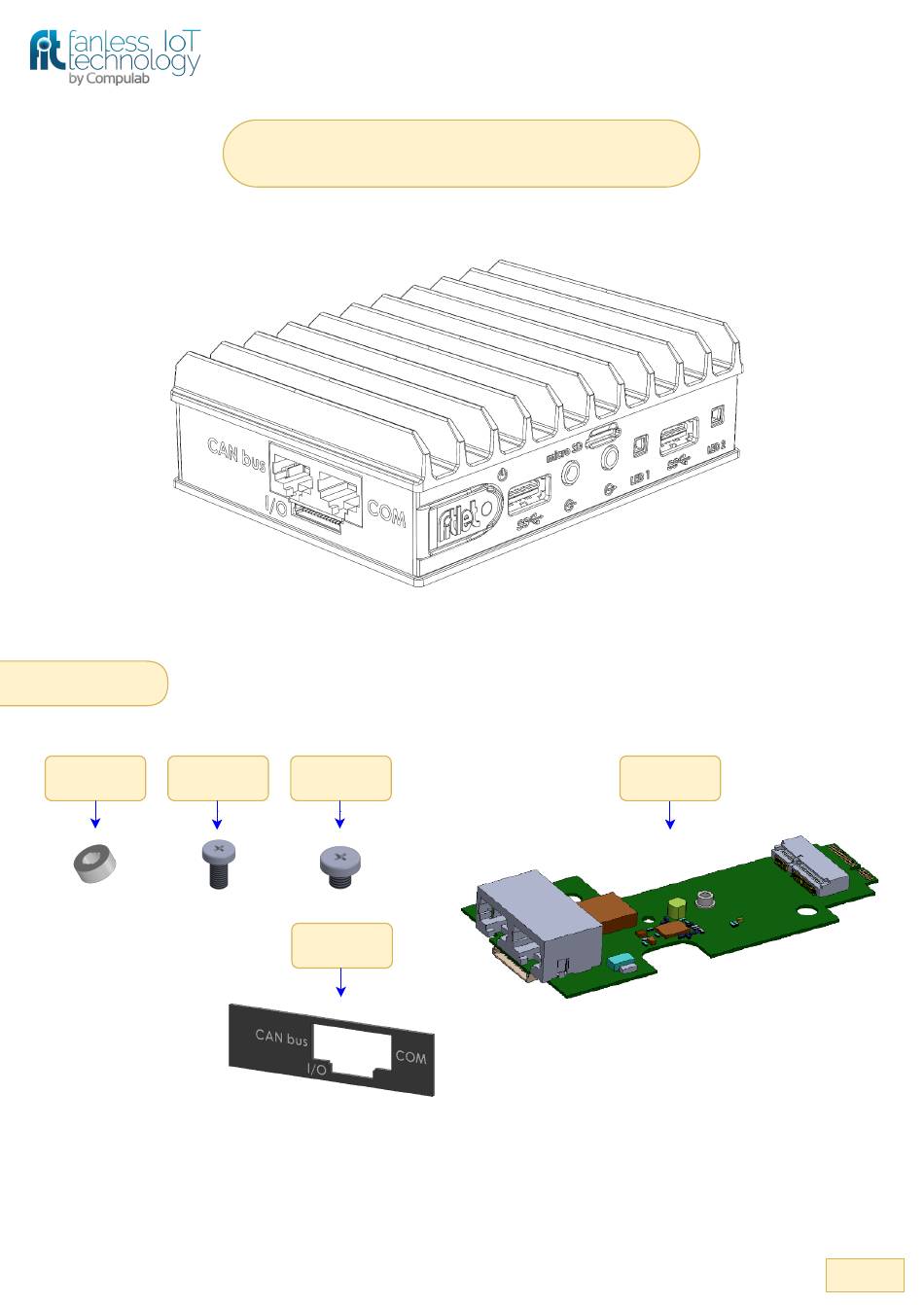

- Page 1 23-May-19 fitlet2 FC-SCG Installation instructions Package content 1x Retaining 1x 6mm M3 1x 3mm M3 1x FC-SCG washer Phillips screw Phillips screw FACET card 1x SCG side panel Page 1...
- Page 2 Remove the bottom cover by unscrewing the 4x Phillips chassis screws and pull out the cooling plate gently after removing the 3x Phillips screws. Remove the WiFi module from the cooling plate and then place the retaining washer at the designated location on the cooling plate and seat the FC- SCG on-top of it.
- Page 3 Plug the IPX connectors to the Wifi module as follows: Long cable to port #1 Short cable to port #2 Fasten the WiFi module to the FACET with the Phillips screw Note: Use the 3mm M3 Phillips screw Seat the FACET into the M.2 sockets and route the SMA antenna cables outside of the enclosure...
- Page 4 Fasten the cooling plate in place using the 3x Phillips screws. Stick the RTC battery in its place Assemble both side panels. Page 4...
- Page 5 Note Before placing the bottom cover, make sure the U-shaped Boss is at the side of the M.2 connectors Screw the 4x Phillips enclosure screw half way, enough to hold the bottom cover in-place but not too tight Bring both side panels in place, and hold them Complete by tightening the Phillips enclosure screws all the...
