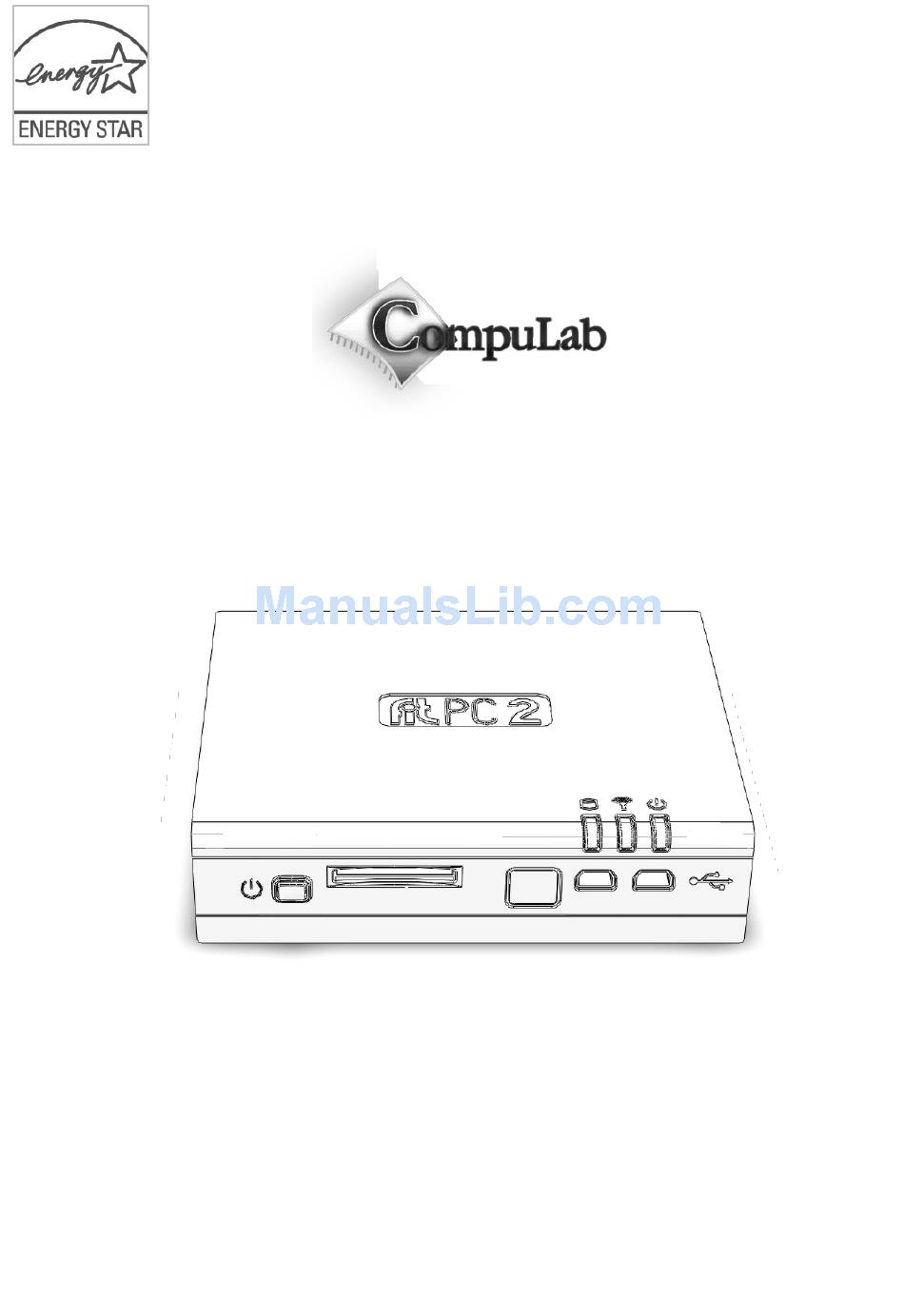

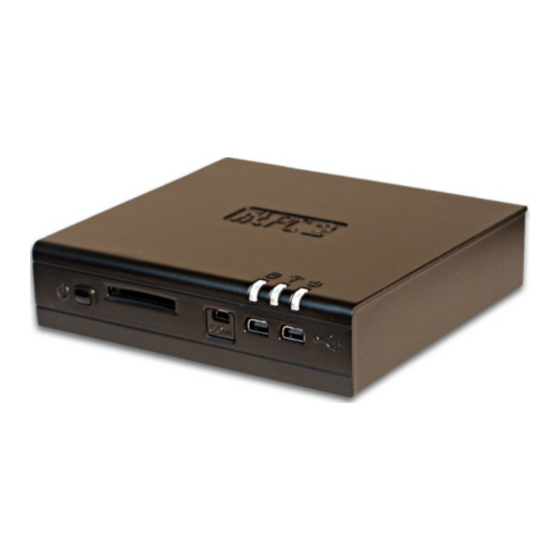

- Page 1 Owner’s Manual...
- Page 2 Package contents Hardware specifications fit-PC2 features Quick start guide Connecting fit-PC2 Booting Linux (applies to fit-PC2 Linux) Booting Windows 7 (applies to fit-PC2 Win7) Maintenance Affixing rubber feet Installing Hard Disk BIOS Setup Utility BIOS Setup Utility Sections Warranty and RMA...
-
Page 3: Package Contents
HDMI to DVI adapter 3.5mm to RCA cable 4 Rubber feet WiFi antenna (in some models) To use fit-PC2, you will need: A display with DVI or HDMI input + DVI or HDMI cable USB keyboard and mouse... - Page 4 IR functionality. Display interface is DVI-D over HDMI connector. To connect fit-PC2 to a DVI display Use the provided HDMI to DVI adapter. Use a DVI cable to connect the adapter to the display. To connect fit-PC2 to a flat-screen TV Use an HDMI cable between the HDMI connector and HDMI input of the TV.
-
Page 5: Power Button
A WLAN antenna is supplied in models with integrated WiFi and should be screwed into a standard SMA connector. Power button fit-PC2 has a tactile power push-button. It is used for turning on/off the fit-PC and for standby/resume when supported by the operating system. A push of at least 5 seconds will always turn off the fit-PC2. -
Page 6: Maintenance
The Windows 7 serial number is printed on the Windows 7 label on the bottom of your fit- PC2. Maintenance The fit-PC2 requires no maintenance. You should not take the fit-PC2 apart - this will void its warranty. The following operations can be conducted by the user: Affixing rubber feet You should stick the rubber feet to the bottom of the fit-PC2 to protect the supporting surface. -
Page 7: Installing Hard Disk
Installing Hard Disk Open the two HDD screws on the HD door as indicated below and remove it. Release spacers using a 5.5mm nut-driver and remove with attached screw. Slide-in HDD. - Page 8 Tighten the four HDD screws indicated below. Removing Hard Disk Open the two HDD screws on base Push out the HDD cover as indicated below. Hard disk will slide out.
-
Page 9: Bios Setup Utility
BIOS Setup Utility Entering BIOS Setup Utility Turn off the fit-PC. Turn on while holding down the F2 key. Screen Layout Menu is on the top. The left pane shows configuration items. When an item is highlighted, the right pane displays help for this item. - Page 10 Supervisor password for protecting setup utility User password for protecting fit-PC2 boot If you wish to clear a password, set a new, blank password. Boot Select a boot sequence between the built-in HDD, USB thumb drive (USB key), USB CDROM, USB HDD, USB Floppy (FDC) and SD.
-
Page 11: Warranty And Rma
This warranty is void if the product has been altered or damaged by accident, misuse or abuse. Keep the original package for shipping in case of hardware failure. In case of HW failure of a fit-PC2 under warranty, please contact the seller of that fit- PC2. Please provide the following required information: ... - Page 12 -Increase the separation between the equipment and receiver. the party responsible for compliance (CompuLab Ltd.) could void the user’s -Connect the equipment into an outlet on a circuit authority to operate the equipment. different from that to which the receiver is connected.
