CompuLab Fitlet2 Installation Manual

26-Dec-18

This guide is applicable for Fitlet2, configured with FC-PCI.

It provides the installation instructions to add a 2

Parts for installing this solution should be acquired from Compulab.
Contact fitpcsales@compulab.co.il

For full instructions of the FC-PCI assembly with the fitlet2 please refer to the below
link:
http://fit-pc.com/wiki/index.php/Fitlet2_FC-PCI_installation_instructions

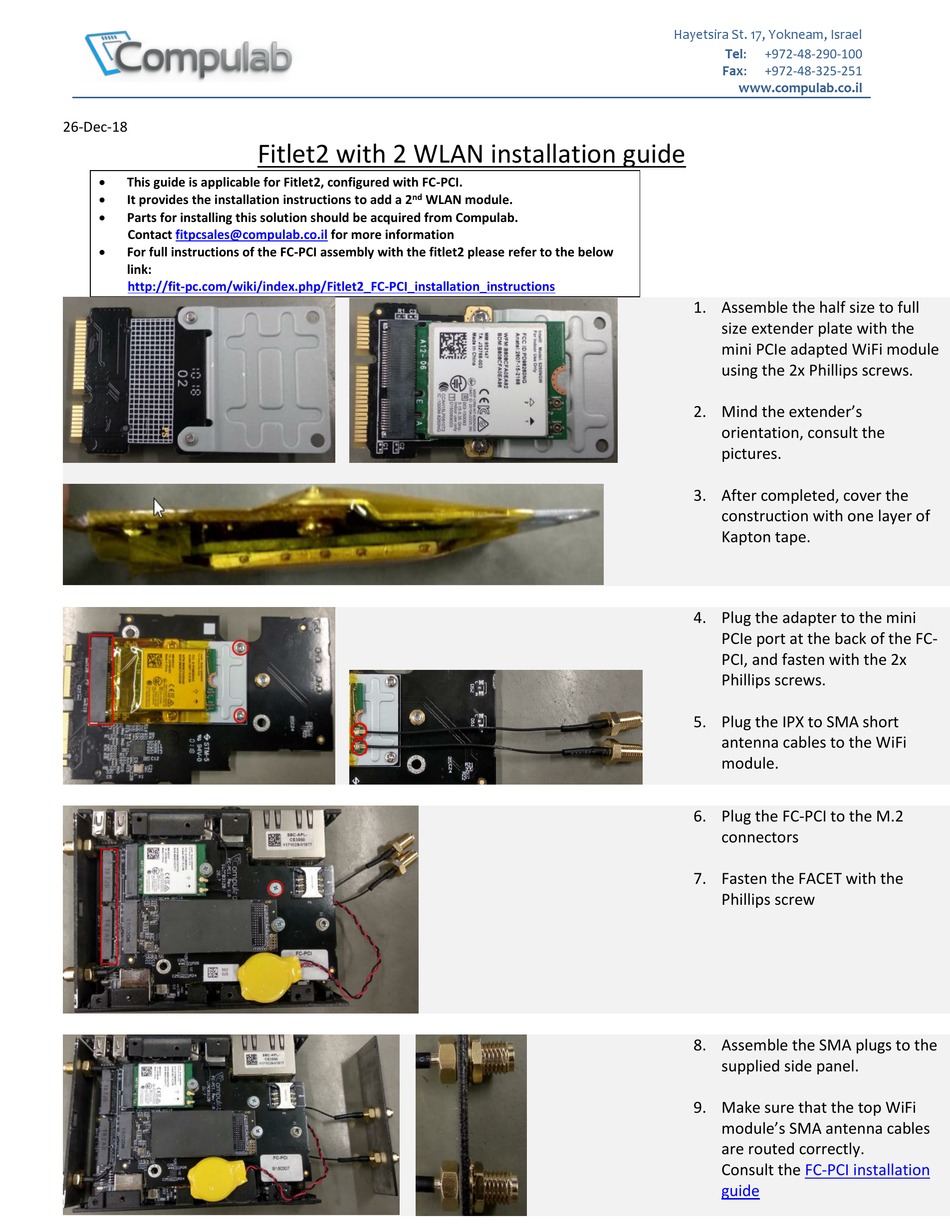

Fitlet2 with 2 WLAN installation guide
nd WLAN module.
for more information
Hayetsira St. 17, Yokneam, Israel
Tel: +972-48-290-100
Fax: +972-48-325-251
www.compulab.co.il
1. Assemble the half size to full
size extender plate with the
mini PCIe adapted WiFi module
using the 2x Phillips screws.
2. Mind the extender's
orientation, consult the
pictures.
3. After completed, cover the
construction with one layer of
Kapton tape.
4. Plug the adapter to the mini
PCIe port at the back of the FC-
PCI, and fasten with the 2x
Phillips screws.
5. Plug the IPX to SMA short
antenna cables to the WiFi
module.
6. Plug the FC-PCI to the M.2
connectors
7. Fasten the FACET with the
Phillips screw
8. Assemble the SMA plugs to the
supplied side panel.
9. Make sure that the top WiFi
module's SMA antenna cables
are routed correctly.
Consult the FC-PCI installation
guide
