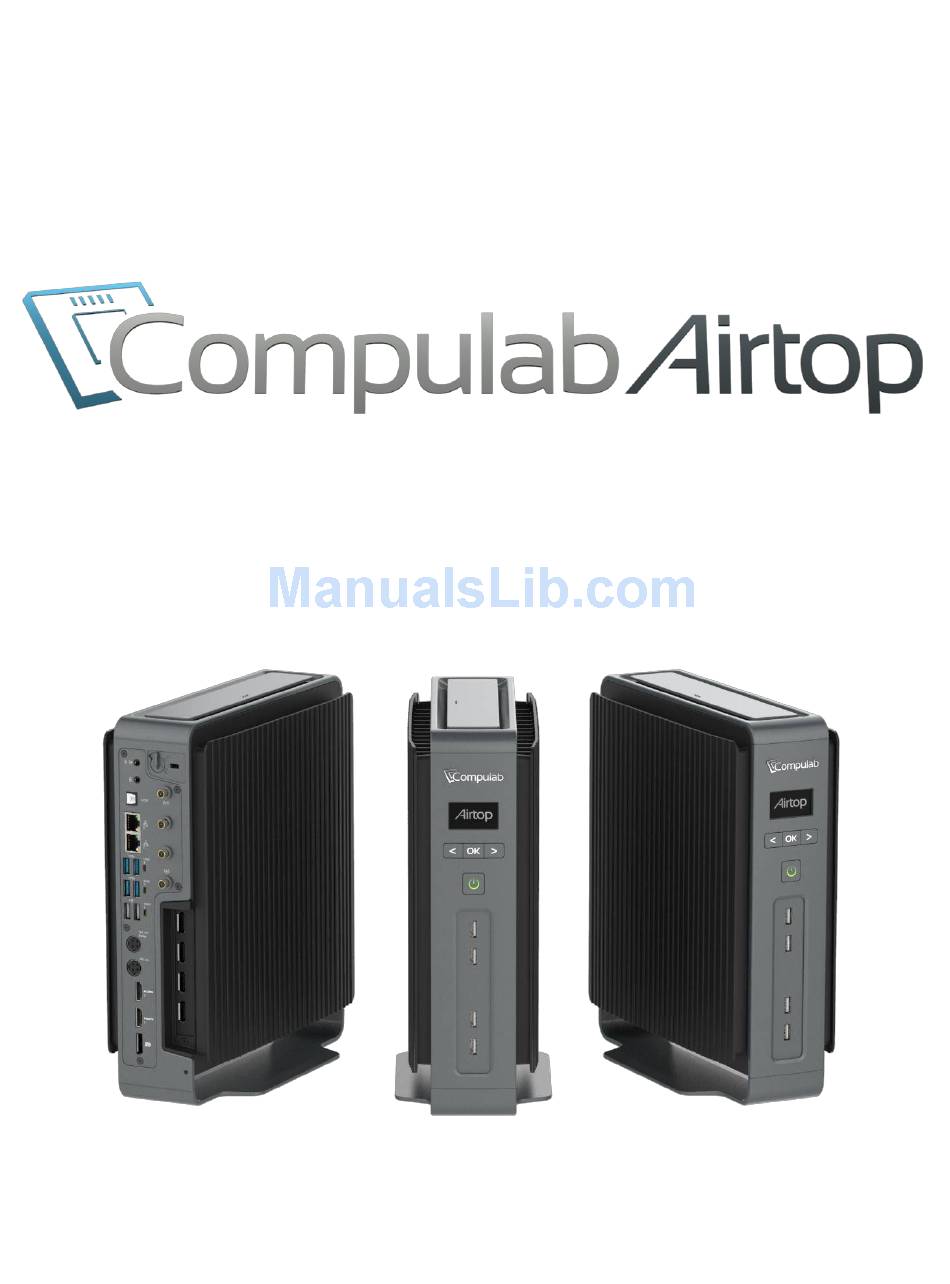

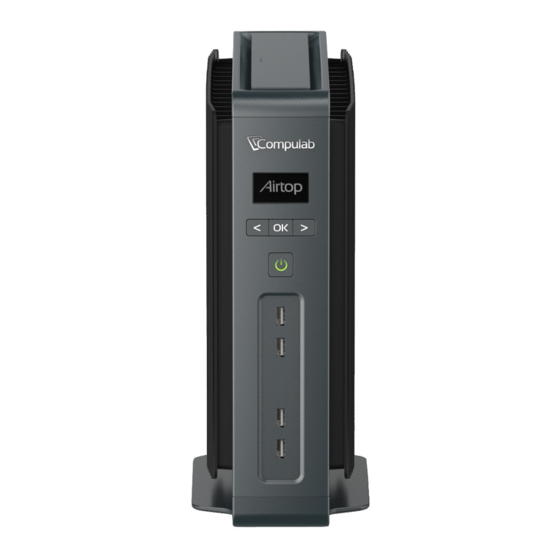

- Page 1 Owner’s Manual...
- Page 2 HaYetsira St. 17, Yokneam, Israel Tel: +972-48-290-168 Fax: +972-48-325-251 www.airtop-pc.com Revision 1.0 16-March-2016 For the latest version of this document please visit Airtop wiki page: http://fit-pc.com/download/airtop/documents/airtop-owners-manual.pdf www.airtop-pc.com Page 2 of 25 Airtop owner’s manual...
-
Page 3: Table Of Contents
Table of Contents Introduction ..................................... 5 Package contents ..................................5 Quick Start Guide ..................................6 Connecting Airtop ..................................6 Booting Windows 7 ................................... 6 Booting Linux ....................................6 Installing an operating system ............................. 6 Hardware specifications ................................7 Airtop features ....................................10 Airtop I/O.................................... - Page 4 Operating Conditions and Environmental Characteristics ..................19 Power Input ....................................19 Environmental Characteristics ..............................19 Installation and Service ................................20 Maintenance ....................................20 Access Airtop Motherboard ..............................20 Servicing Airtop .................................... 21 Safety instructions .................................. 21 Before servicing Airtop ................................21 Turning off Airtop ..................................22 After servicing Airtop ................................
-
Page 5: Introduction
Display with DisplayPort or HDMI/DVI input + DVI/HDMI cable adapter if needed USB keyboard and mouse For Barebone models – compatible RAM modules and storage devices with installed operating system Note: Local resellers may supply Airtop with other AC cord types. www.airtop-pc.com Page 5 of 25 Airtop owner’s manual... -
Page 6: Quick Start Guide
Several Airtop models are sold “Barebone” – without RAM and storage. To install RAM and storage please consult “Installation and Service” below. Connecting Airtop Turn off the display and connect it to Airtop DisplayPort or HDMI connector (use the HDMI to DVI adapter if needed) Connect the USB keyboard and mouse to USB2.0 connectors ... -
Page 7: Hardware Specifications
DisplayPort 1.2 up to 3840 x 2160 @ 60 Hz Display I/F 2 HDMI 1.4a up to 4096 x 2304 @ 24 Hz Display I/F 3 HDMI 1.4a up to 4096 x 2304 @ 24 Hz www.airtop-pc.com Page 7 of 25 Airtop owner’s manual... - Page 8 2x USB 2.0 (back) USB2 4x USB 2.0 (front) 3x Serial communication ports COM0: Full RS232 via mini serial connector Serial COM1: 2-wire RS232 via mini serial connector COM3: 2-wire RS232 via mini serial connector www.airtop-pc.com Page 8 of 25 Airtop owner’s manual...
- Page 9 Passive Zero-Fans Natural Airflow (NAF) cooling 10 cm (W) x 30 cm (H) x 25.5 cm (D) Dimensions 4” (W) x 12” (H) x 10” (D) Weight 5 kg – 5.8 kg www.airtop-pc.com Page 9 of 25 Airtop owner’s manual...
-
Page 10: Airtop Features
Audio out lock Mic In TOSLink monitor LAN 2 buttons LAN 1 Power button USB3.0 RS232 serial ports USB2.0 Power input main/backup HDMI 2 HDMI 1 DisplayPort Figure 1 - Airtop I/O ports www.airtop-pc.com Page 10 of 25 Airtop owner’s manual... -
Page 11: Airtop Motherboard
Disks M.2 slot Cartridge conn Mini PCIe Mini PCIe Micro SIM #2 2x DIMM-240 CMOS/RTC memory slots battery 2032 Micro SIM #1 FACE Module Figure 2 - Airtop motherboard features www.airtop-pc.com Page 11 of 25 Airtop owner’s manual... -
Page 12: Cpu
HaYetsira St. 17, Yokneam, Israel Tel: +972-48-290-168 Fax: +972-48-325-251 www.airtop-pc.com Airtop is designed to be used with LGA1150 Intel processors. Among them Xeon E3-1285L v4, Core i7-5775C and others. Figure 3 - Intel LGA1150 socketed CPU www.airtop-pc.com Page 12 of 25 Airtop owner’s manual... -
Page 13: Ram
Both, ECC and Non-ECC RAM is supported, specific CPU/RAM compatibility is shown in Airtop model specification. Storage Airtop has 6 independent SATA3.0 ports, which allow users to install up to 6 storage devices inside Airtop. Four 2.5’’ HDD/SSD drives arranged and mounted in a special disks cartridge for convenient installation and maintenance. Two additional SATA locations are onboard M.2 2280 and mSATA slots for SSD devices in corresponding form factors. -
Page 14: Raid
The Intel® Rapid Storage Technology (Intel RST®) supports RAID levels 0/1/5/10. For more information please refer to Airtop wiki: http://fit-pc.com/wiki/index.php/RAID_on_Airtop mSATA Airtop features single mSATA slot suitable for connecting standard mSATA SSD modules. Airtop features single M.2 slot suitable for M.2 2280 SATA only modules. www.airtop-pc.com Page 14 of 25... -
Page 15: Display
1x DisplayPort 1.2 2x HDMI port 1.4a To connect Airtop to a DVI display, use the included HDMI to DVI-D adapter. Use a DVI cable to connect the adapter to the display. External Graphics Several Airtop models come with external discrete graphics cards. Both support up to four independent digital display outputs with Audio support. -
Page 16: Networking
Four additional GbE LAN ports can be installed using FM-LANE4U4 FACE Module. Wireless Communications WLAN & Bluetooth Standard Airtop models ship with WLAN/Bluetooth module - Intel 7260HMW which supports 802.11ac WLAN and BT4.0. Two antennas are included and should be screwed into the SMA connectors on the back panel. Cellular Airtop provides the option for cellular communication. -
Page 17: Expansion
Mini PCI Express Airtop motherboard has two full-size mini-PCI express slots. One of the slots is normally used for WLAN/BT module. Half-size modules can be installed with half-to-full size adapter bracket available from Compulab. Note: When removing the WLAN module make sure to isolate the tips of antenna-cables to avoid short-circuits to the motherboard. -
Page 18: Kensington Security Lock
Kensington Security Lock Airtop Kensington lock can be found on the upper side of its rear panel. Make sure to set the locking knob to locked state before using Kensington lock. This will prevent opening the case. Locking knob... -
Page 19: Operating Conditions And Environmental Characteristics
Operating Conditions and Environmental Characteristics Power Input Airtop is powered from unregulated DC voltage in the range between 15V – 20V, with nominal value of 19V. 19V @ 13.15A power supply is included. For redundancy purposes Airtop incorporates two power inputs. Airtop can be powered from single power supply, or from both power inputs simultaneously. -
Page 20: Installation And Service
+972-48-325-251 www.airtop-pc.com Installation and Service Maintenance Airtop requires no maintenance. You should not take Airtop apart other than opening the clamshell door and installing. Taking Airtop apart will void its warranty. For your convenience Airtop video available: https://www.youtube.com/watch?v=p7ANwEd14Wk Access Airtop Motherboard In order to access Airtop mother board follow the steps below: 1. -
Page 21: Servicing Airtop
Damage due to servicing that is not authorized by Compulab is not covered by your warranty. Read and follow the safety instructions that came with the product. -
Page 22: Turning Off Airtop
Airtop. 1. Close Airtop’s Clamshell door. 2. Make sure Airtop is oriented vertically in order to ensure cooling efficiency. WARNING: Operating Airtop in horizontal position will reduce its cooling efficiency. 3. Connect any network and other cables to your computer. -
Page 23: Bios
Warranty on the replaceable battery is 24 months only Your sole remedy and Compulab’s sole liability shall be for Compulab, at its sole discretion, to either repair or replace the defective product at no charge. This warranty is void if the product has been altered or damaged by accident, misuse or abuse. -
Page 24: Regulatory Information
-Connect the equipment into an outlet on a circuit different party responsible compliance from that to which the receiver is connected. (Compulab Ltd.) could void the user’s -Consult the dealer or an experienced radio/TV technician for authority to operate the equipment. help. WEEE... - Page 25 HaYetsira St. 17, Yokneam, Israel Tel: +972-48-290-168 Fax: +972-48-325-251 www.airtop-pc.com www.airtop-pc.com Page 25 of 25 Airtop owner’s manual...
