FIT-PC4
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for CompuLab FIT-PC4

Summary of Contents for CompuLab FIT-PC4

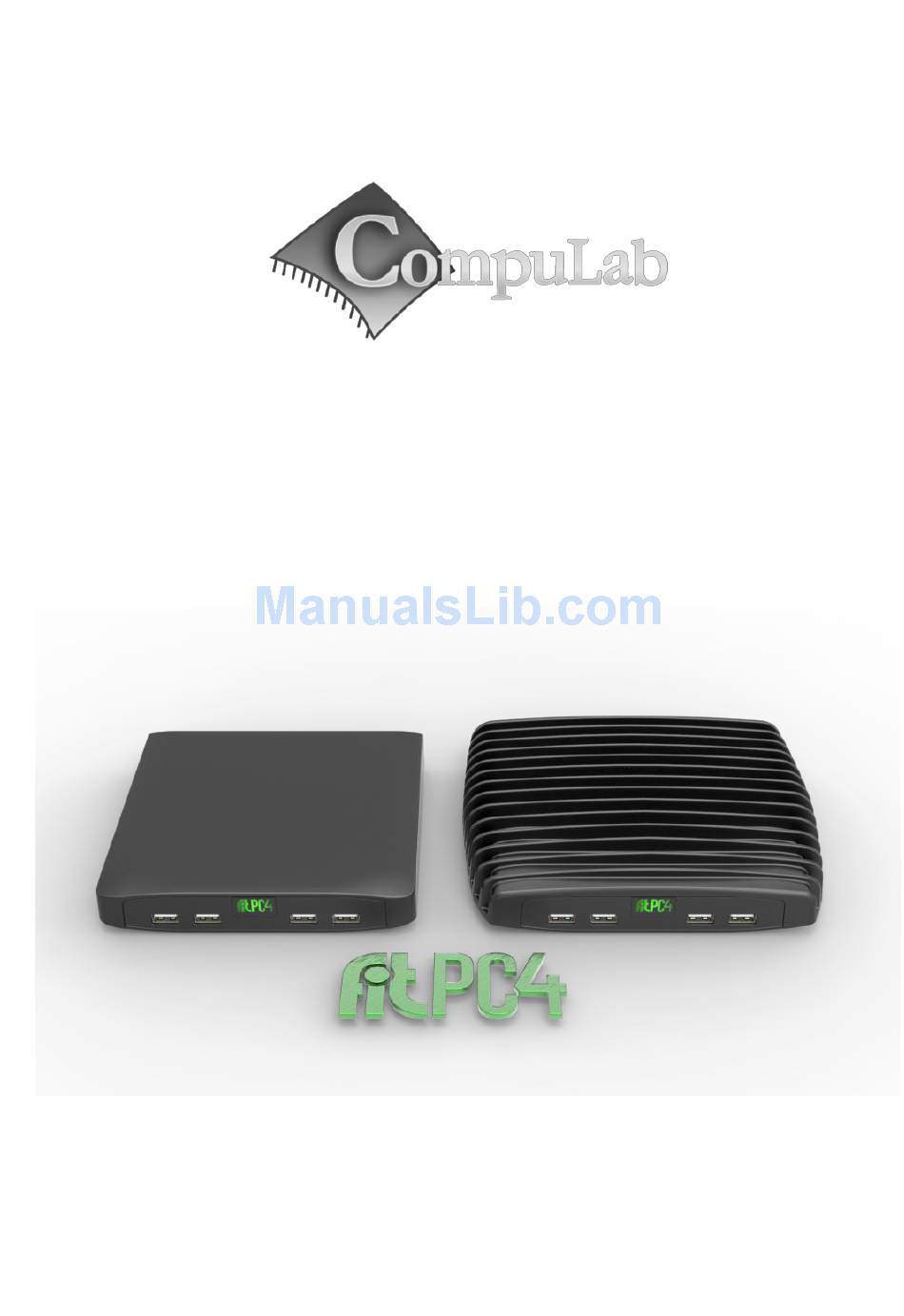

  • Page 1 FIT-PC4 Owner’s Manual...
  • Page 2 FIT-PC4 Owner’s Manual April -2014 Introduction Package contents Hardware specifications FIT-PC4 features Quick start guide Connecting FIT-PC4 Booting Linux Booting Windows 7 Maintenance Opening service door Service bay BIOS Setup Utility Warranty and RMA Warranty Tips for saving power General...

  • Page 3: Package Contents

    Mini-serial to DB9-female adapter cable To use FIT-PC4, you will need:  A display with DVI/HDMI input + DVI/HDMI cable  USB keyboard and mouse * Local resellers may supply FIT-PC4 with other AC cord types. Hardware specifications Processor Pro Model Value Model Type...
  • Page 4 Networking Pro Model Value Model 2x GbE LAN ports LAN1: Intel I211 GbE controller (RJ-45) LAN2: Intel I211 GbE controller (RJ-45) Wireless Intel 2.4/5GHz dual band 7260HMW AzureWave AW-NB057H WLAN 802.11ac WLAN 802.11b/g/n Bluetooth 4.0 Bluetooth 3.0 Connectivity 2x USB 3.0 6x USB 2.0 Serial 1x Serial communication port...

  • Page 5: Front Panel

    FIT-PC4 has dual display interface with support for dual head. 2x HDMI with audio support (CEC support on one HDMI port) To connect FIT-PC4 to a DVI display, use the provided HDMI to DVI-D adapter. Use a DVI cable to connect the adapter to the display.

  • Page 6: Booting Linux

    Quick start guide Connecting FIT-PC4  Turn off the display and connect it to the FIT-PC4 HDMI connector (use the HDMI to DVI adapter if needed).  Connect the USB keyboard and mouse to USB 2 connectors.  Plug the Ethernet cable into the Ethernet connector.

  • Page 7: Maintenance

    Maintenance FIT-PC4 requires no maintenance. You should not take the FIT-PC4 apart other than opening the service door. Taking FIT-PC4 apart will void its warranty. The following operations can be conducted by the user: Opening service door Unscrew marked Philips screw at the bottom to release service-door.

  • Page 8: Bios Setup Utility

    This warranty is void if the product has been altered or damaged by accident, misuse or abuse. Keep the original package for shipping in case of hardware failure. In case of HW failure of an FIT-PC4 under warranty, please contact the seller of that FIT-PC4. Please provide the following required information: ...
  • Page 9 -Increase the separation between the equipment and party responsible for compliance receiver. (CompuLab Ltd.) could void the user’s -Connect the equipment into an outlet on a circuit authority to operate the equipment. different from that to which the receiver is connected.
