3.5 Print position adjustment

1) Adjust vertical print position

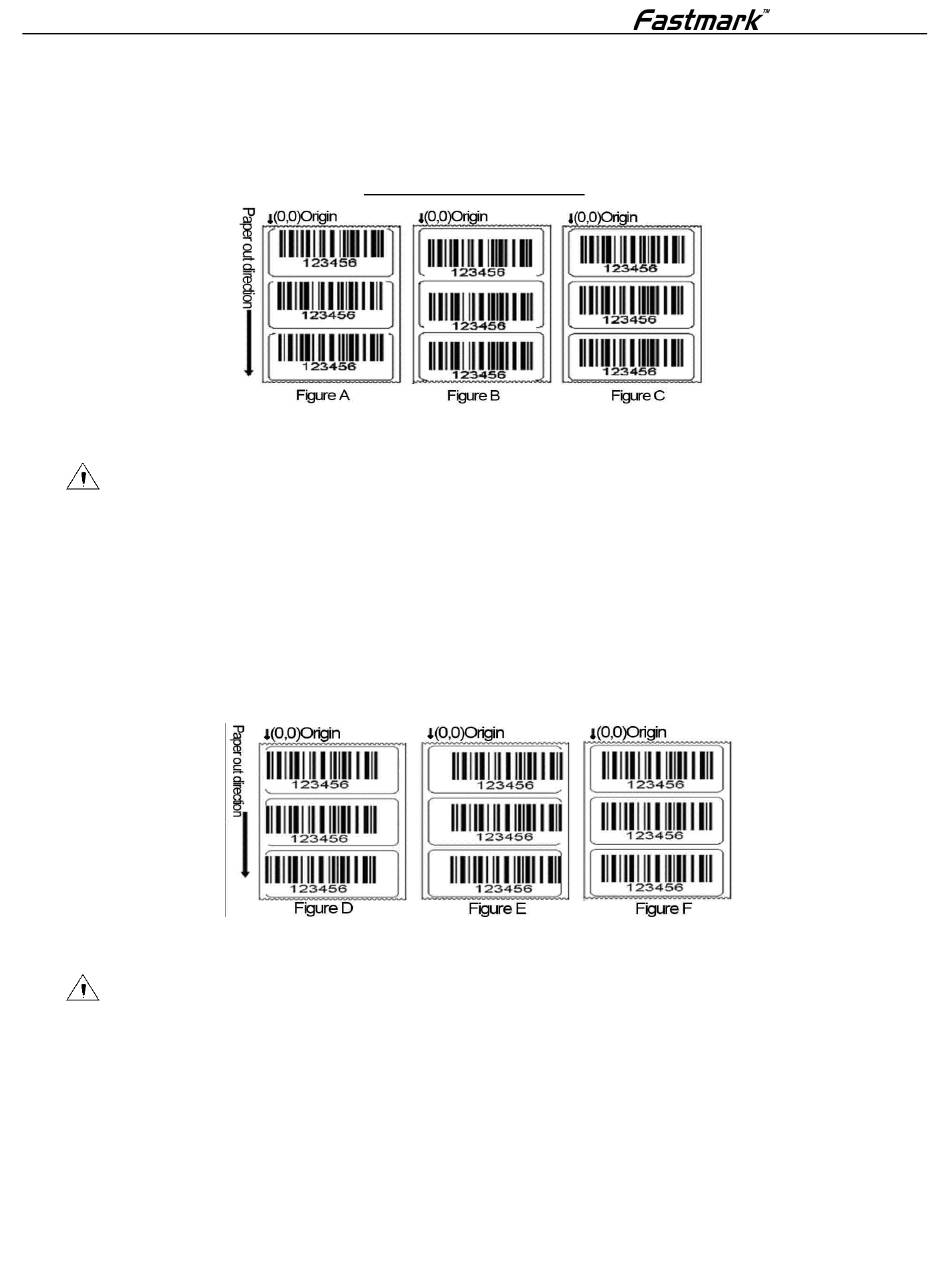

When the situation like figure A or B occurs, adjust the vertical print position to figure C. (For the detailed
adjustment method, please refer to 3.3.1 Button menu settings).
Caution:
 Figure A indicates that the print position is upper than the correct position. Adjust it in the negative
direction (The data symbol in the option "Vertical position adjustment" is "+");
 Figure B indicates that the print position is lower than the correct position. Adjust it in the positive
direction. (The data symbol in the option "Vertical position adjustment" is "-").
2) Adjust horizontal print position
When the situation like figure D or E occurs, adjust the horizontal print position to figure F (For the detailed
adjustment method, please refer to 3.3.2 Detailed parameter setting range).
Caution:
 Figure D indicates that the print position is on the left of the correct position. Adjust it in the positive
direction (The data symbol in the option "Horizontal position adjustment" is "+");
 Figure E indicates that the print position is on the right of the correct position. Adjust it in the negative
direction. (The data symbol in the option "Horizontal position adjustment" is "-").
Figure 3.5-1
Figure 3.5-2
