AMT Datasouth Fastmark Z5DT Series User Manual page 11

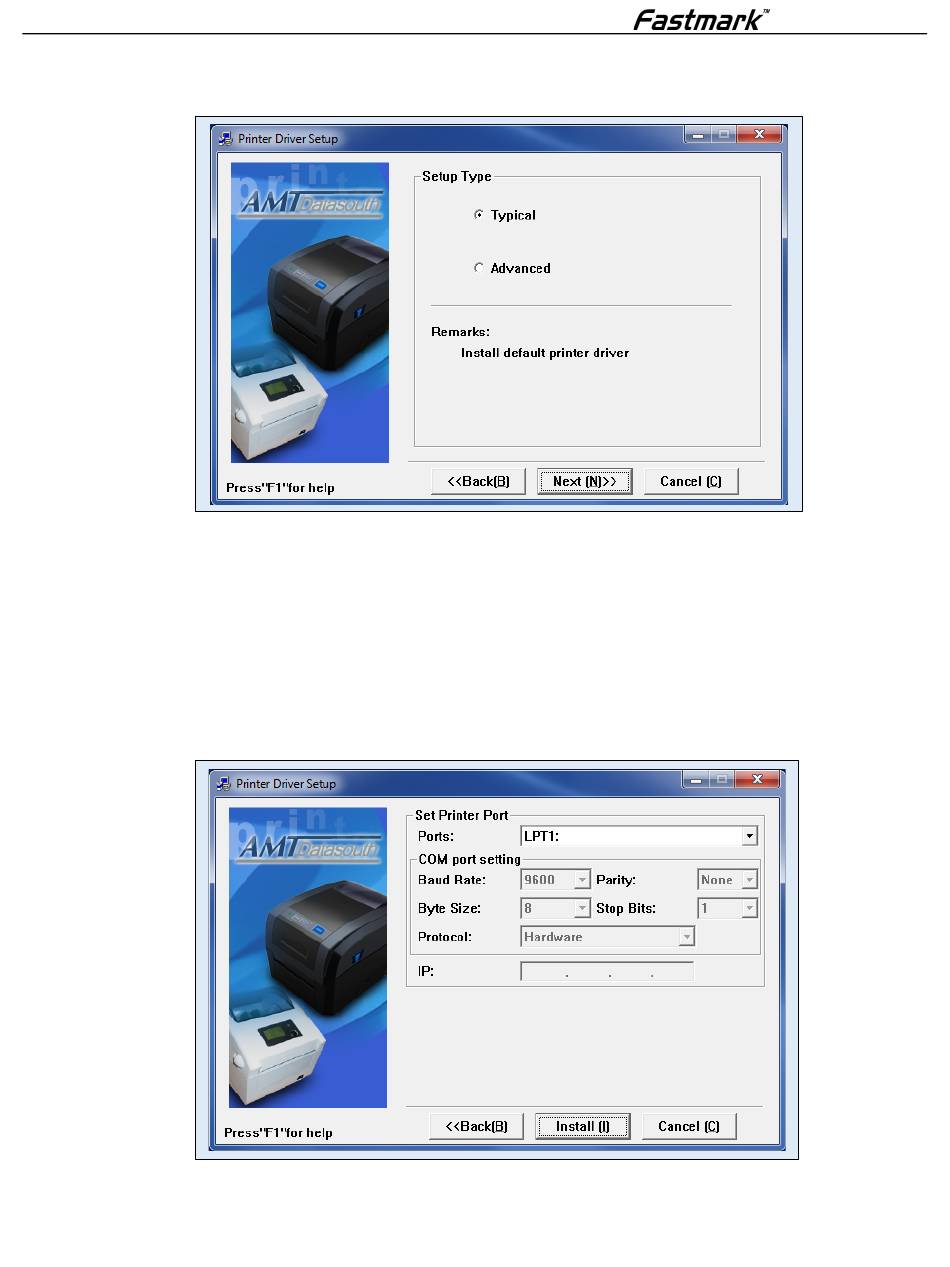

Select setup type, and click "Next";
3)
The driver will select the current OS type automatically, and click "Next";
4)
Set printer port. "LPT1" is set as the default print port, but users can select it according to actual needs.
5)
If it is a serial port driver, please select "BYCOMx" (x equals to 1, 2, 3, 4, 5, 6, 7 or 8); if it is Ethernet port,
please select "NET"; if it is USB port, please select "USB_Z5DT_x" (if USB port printer is connected
correctly to the computer under power-on status, the driver setup program will set USB port as default
port automatically). Then click "Install" to initiate the installation.
