3) Adjust tear-off position

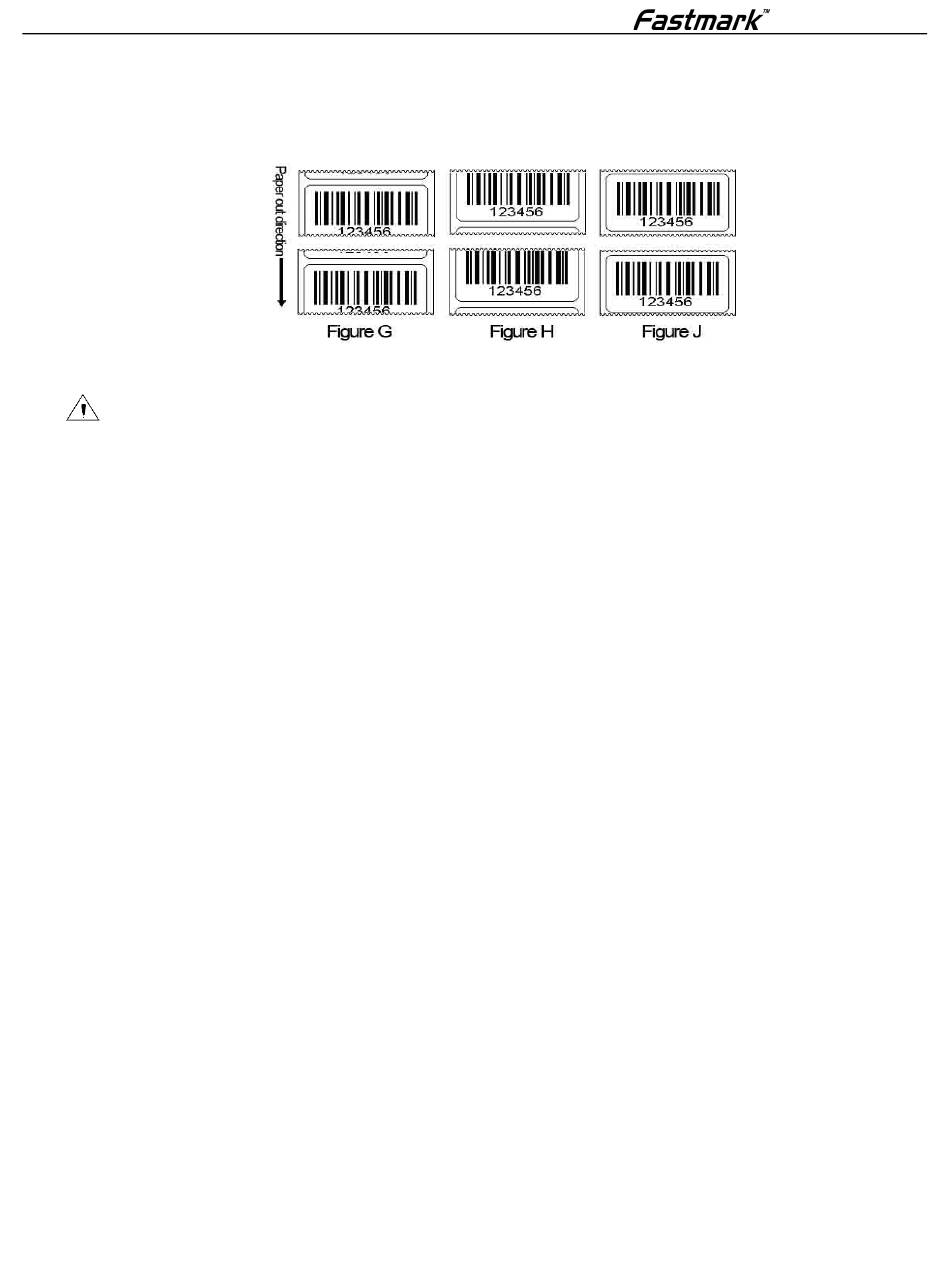

When the situation like figure G or H occurs, adjust the tear-off position to figure J. (For the detailed
adjustment method, please refer to 3.3.2 Detailed parameter setting range).
Caution:
 Figure G indicates that the tear-off position is upper than the correct position. Adjust it in negative
direction; (The data symbol in the option "Tear-off position adjustment" is "-");
 Figure H indicates that the tear-off position is lower than the correct position. Adjust it in positive
direction. (The data symbol in the option "Tear-off position adjustment" is "+").
Figure 3.5-3
