Notice!
Use only sound cards specified by the manufacturer. Other sound cards are not supported.
9.12

Installing the air shroud

The air shroud does not require screws for its installation.
Notice!
If a 16 DIMM (13.68" x 13") motherboard is used, it is necessary to use the optional
MCP-310-82502-0N air shroud.
To install the air shroud:
1.
2.
3.
2019.08 | V1 | DOC

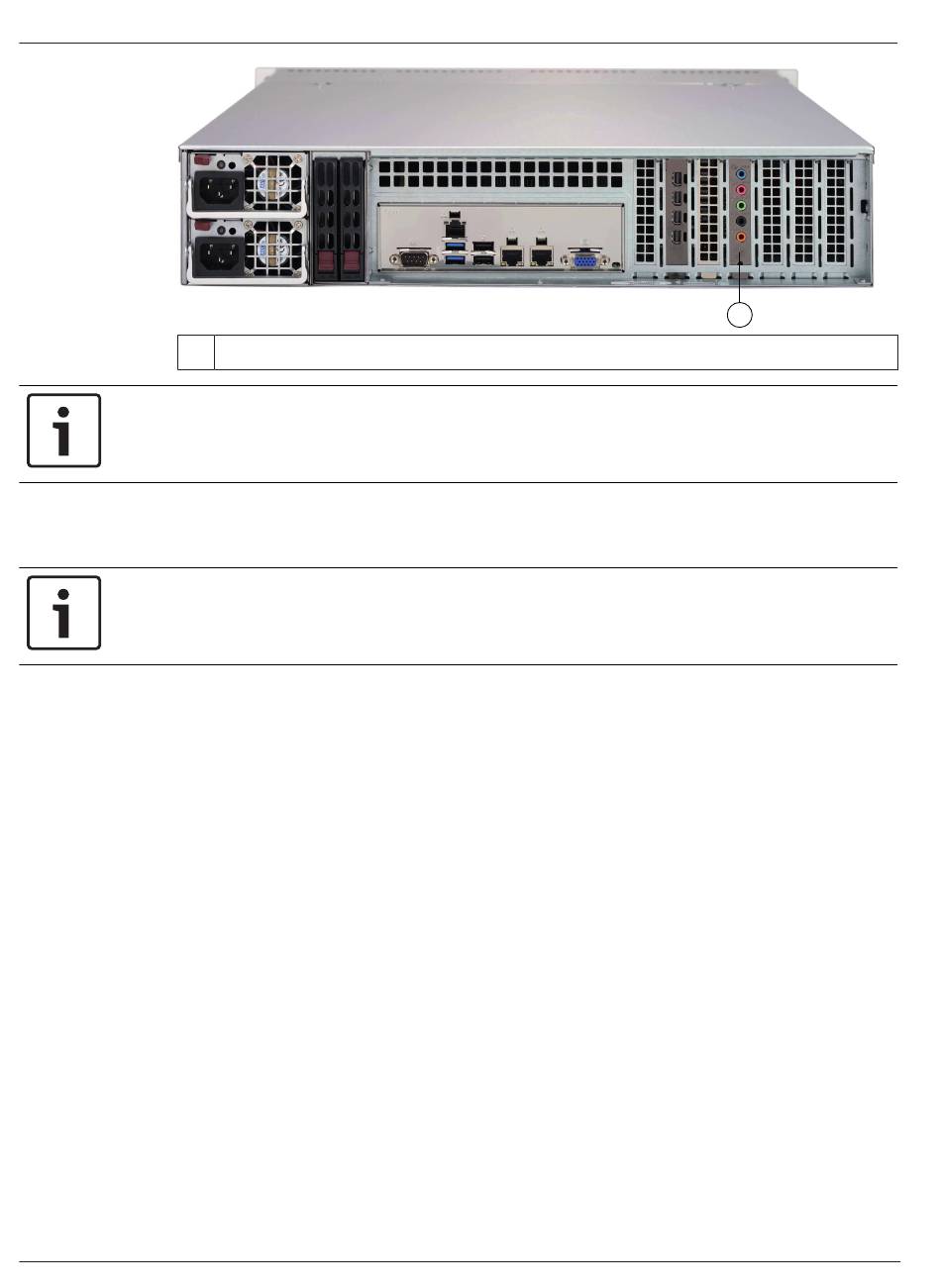

Dedicated PCI slot for a sound card
Make sure that your air shroud matches your chassis model.
Turn off the system and remove the cover.
Place the air shroud in the chassis. The air shroud fits behind the two fans closest to the
power supply.
Installation manual
DIVAR IP all-in-one 7000 (2U)
1
