To remove the chassis cover:
1.
2.
3.
4.
Notice!
Except for short periods of time, do NOT operate the server without the cover in place. The
chassis cover must be in place to allow proper airflow and prevent overheating.
9.4

Installing a SATA hard drive

The unit features hot-swappable hard drives which can be removed without turning off the
system.
The hard drives are mounted in hard drive carriers to simplify their installation and removal
from the chassis. These hard drive carriers also help promote proper airflow for the hard drive
bays.
Procedure
To install a hard drive, you have to perform following steps:
1.
2.
3.
Bosch Security Systems B.V.
1
2

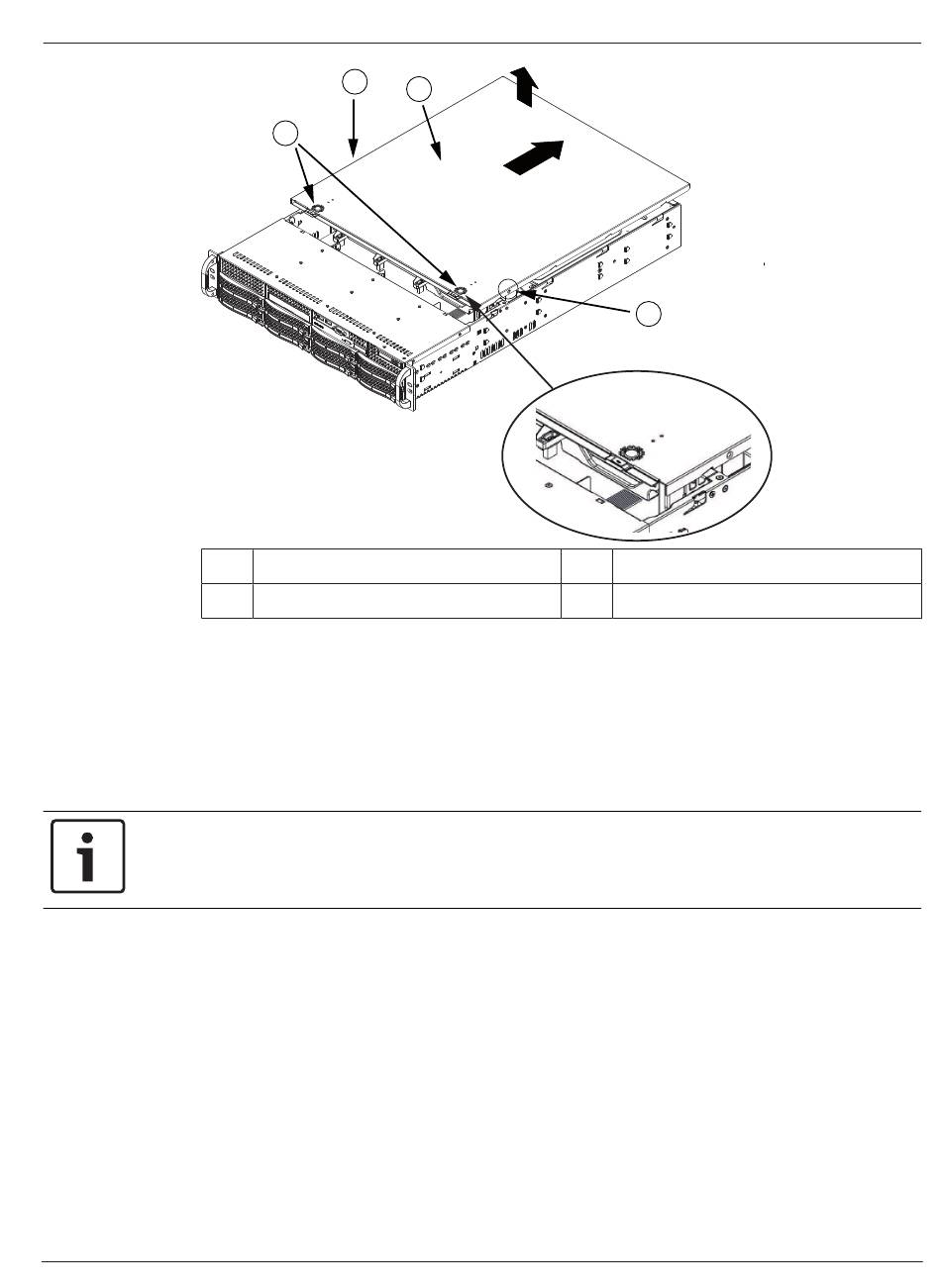

1 Fixing screws
3 Chassis cover
Disconnect the power supply, lay the chassis on a flat surface.
Remove the two screws on each side of the cover, which secure the cover to the chassis.
Press the release tabs to remove the cover from the locked position. Press both tabs at
the same time.
Once the top cover is released from the locked position, slide the cover toward the rear
of the chassis and lift the cover off the chassis.
Removing a hard drive carrier from a hard drive bay, page 36.
Installing a hard drive into a hard drive carrier, page 36.
Installing a hard drive carrier into a front drive bay, page 37.
3
2
Installation manual
Maintenance | en
1
Release tabs
