Installing A Hard Drive Carrier Into A Front Drive Bay - Bosch DIVAR IP all‑in‑one 7000 Series Installation Manual

DIVAR IP all-in-one 7000 (2U)
3.
4.
5.
Notice!
Bosch recommends using the respective Bosch hard disk drives. The hard disk drives as one
of the critical component are carefully selected by Bosch based on available failure rates.
Hard disk drives not delivered from Bosch are not supported.
For more information about supported hard disk drives, see the datasheet in the Bosch
Online Product Catalog at:
www.boschsecurity.com
9.4.3

Installing a hard drive carrier into a front drive bay

To install a hard drive carrier into a hard drive bay:
1.
2.
Bosch Security Systems B.V.

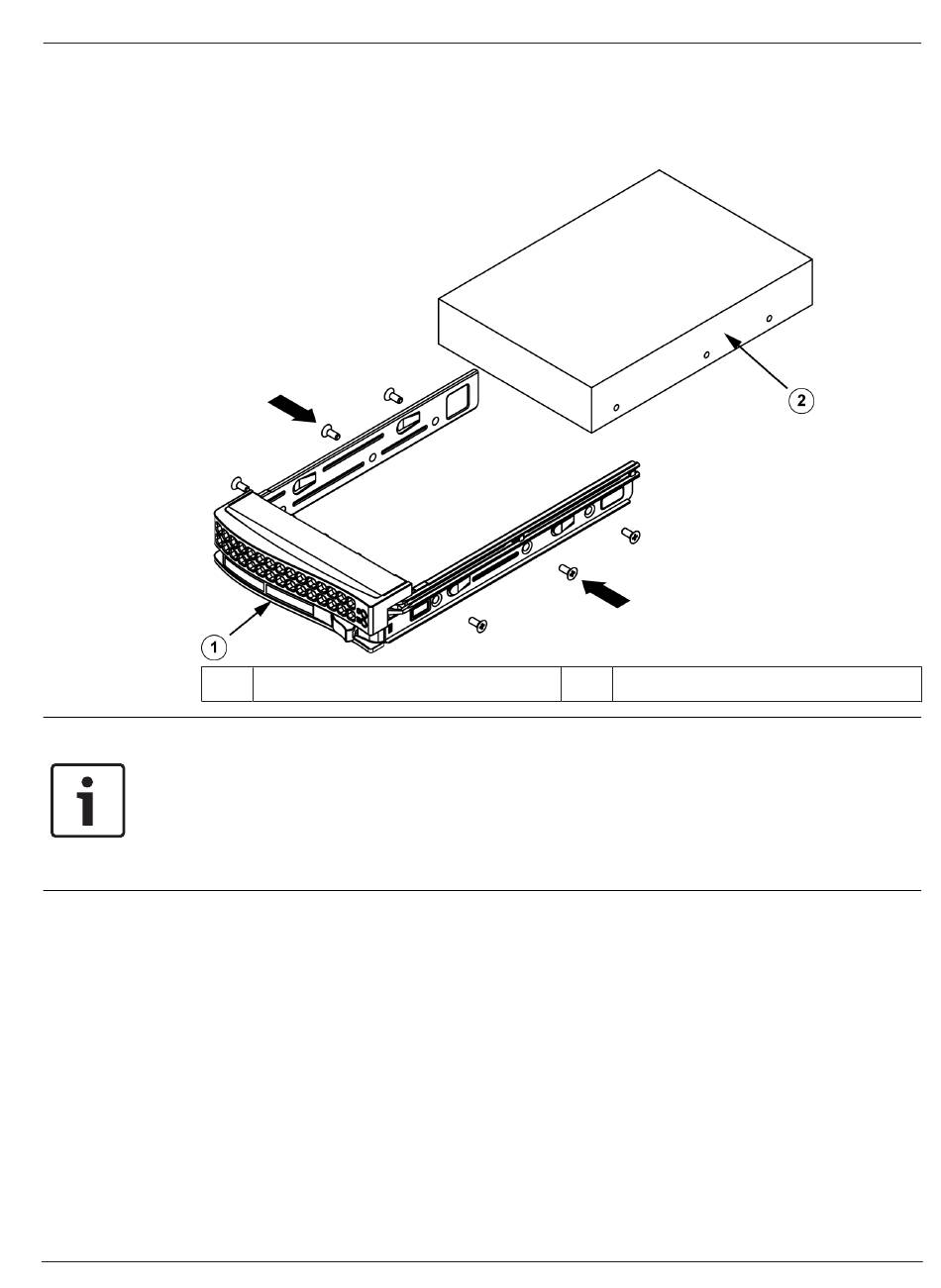

Slide a new hard drive into the hard drive carrier with the printed circuit board side
facing down.
Align the mounting holes in both, the hard drive carrier and the hard drive.
Secure the hard drive to the hard drive carrier with the six screws.
1 Hard drive carrier
Insert the hard drive carrier horizontally into the hard drive bay, orienting the hard drive
carrier so that the release button is on the right.
Push the hard drive carrier into the bay until the handle retracts and the hard drive clicks
into the locked position.
2
Installation manual
Maintenance | en
SATA hard drive
37
2019.08 | V1 | DOC
