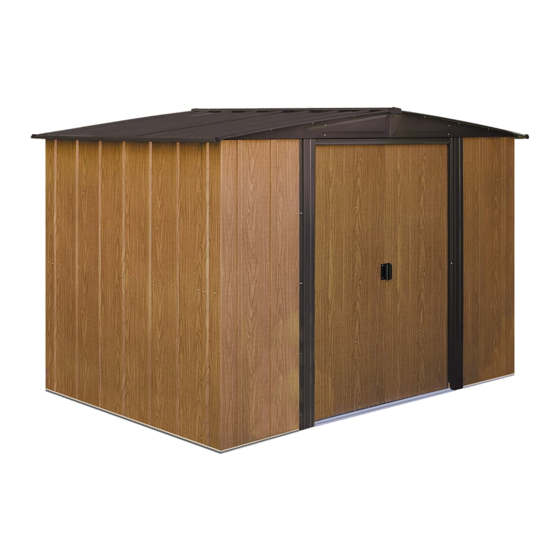

Owner's Manual & Assembly Instructions
CW01a
Model No. BR1010
709201219
Storage Area: 92 Sq. Ft. 513 Cu. Ft.
8,5 m
2
BUILDING DIMENSIONS
*Approx.
Size
10' x 10'
121" x 114 1/2"
3,0 m x 3,0 m
307,3 cm x 290,8 cm
Missing Parts, Questions on Assembly?
Call: 1-800-851-1085 or assist@arrow-
Do not return to dealer, they are not
equipped to handle your requests.
14,5 m
3
* Size rounded o to the nearest foot
Exterior Dimensions
Base
(Roof Edge to Roof Edge)
Size
Width
123 1/4"
313,1 cm 297,2 cm
EH1010 A
sheds.com
Depth
Height
Width
117"
72 7/8"
118 1/4"
185,1 cm
300,4 cm
WL1010
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
Interior Dimensions
(Wall to Wall)
Depth
Height
111 3/4"
71 5/8"
283,8 cm
181,9 cm
Door
Opening
Width
Height
55 1/2"
60"
141,0 cm 152,4 cm
Advertisement
Related Manuals for Arrow Storage Products Woodlake
Summary of Contents for Arrow Storage Products Woodlake
- Page 1 Owner's Manual & Assembly Instructions CW01a WL1010 EH1010 A Model No. BR1010 Missing Parts, Questions on Assembly? Call: 1-800-851-1085 or assist@arrow- sheds.com Do not return to dealer, they are not equipped to handle your requests. 709201219 CAUTION: SOME PARTS HAVE SHARP EDGES. CARE Storage Area: 92 Sq.
- Page 3 BEFORE YOU BEGIN..Owner's Manual Before beginning construction, check local building codes regarding footings, location and other requirements. Study and understand this owner's manual. Important information and helpful tips will make your construction easier and more enjoyable. Assembly Instructions: Instructions are supplied in this manual and contain all appropriate information for your building model.
- Page 4 PLAN AHEAD..Watch the Weather: Be sure the day you select to install your building is dry and calm. Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Teamwork: Whenever possible, two or more people should work together to assemble your building.
- Page 5 SAFETY FIRST..Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various •Practice caution with the tools being used in pieces of your building since some contain the assembly of this building. Be familiar with sharp edges.
- Page 6 CARE & MAINTENANCE..Finish: For long lasting nish, periodically clean and wax the exterior surface. Touch-up scratches as soon as you notice them on your unit. Immediately clean the area with a wire brush; wash it and apply touch-up paint per manufacturer's recommendation. Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom.
- Page 7 ACCESSORIES..FLOOR FRAME KITS ROOF STRENGTHENING (heavy snow load) KITS Extra roof beams and gable braces designed for added protection against heavy snow accumulation. Increases the strength of your roof. BEFORE AFTER ANCHOR KITS Model No. AK4 MODELS FB47410, FB5465, FB106-A Anchor Kit contains heavy-duty steel FB109-A and FB1014-A augers, 60' (18 m) of steel cable and...
- Page 8 ORDERING ACCESSORIES..02/13 We recommend that you purchase accessory items from your local storage building dealer whenever possible; however, because the full line of accessories is not always available from all dealers, Arrow is o ering them to you on a direct basis. There are two ways to order Arrow Storage Building Accessories: Option 1 Option 2...
- Page 9 Base The Base For Your Building No matter which of the options below you choose for a base, an ARROW ANCHORING KIT is recommended as an e ective method of properly securing your building after assembly is complete. OPTION 1: Directly on ground (earth) Assemble your building directly on level ground (grass, dirt, rock, sand, etc.).
- Page 10 Anchoring Anchoring Down The Building It is important that the entire oor frame be anchored after the building is erected. Below are recommended ways of anchoring. Anchoring into Wood/Post: Arrow Anchoring Kit: (Model No. AK4 or 60298) Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm) Recommended for use with any suggested base.
- Page 11 Hardware Remove from bag of screws and save for the last step 65900A #10Bx1/2" (13 mm) 65923 65004 65103 Black Screw (8) #8-32x3/8" (10 mm) #8Ax5/16" (8 mm) #8-32 Hex Nut (157) Bolt (157) Screw (344) (Packed with Screws) 65109 66646 #8-32 Acorn Nut (4) 67468...
- Page 12 Parts List S12 ctr Assembly Part Part Quantity Check Key No. Number Description in Carton List 3719 Door Handle Brace 5986 Rear Wall Angle 6000 Right Gable 6001 Left Gable 6015 Side Roof Trim 10497 Horizontal Door Brace 6278 Vertical Door Brace 6403 Door Track Splice 6514...
- Page 13 Assembly by Key No. 21 21 3 21 4 21 21...
- Page 14 8934 Ramp (1) Step 1 Parts Needed For 9367 Front Floor Frame (2) Floor Frame Assemblies 8936 Rear Floor Frame (2) S14 ctr 9299 Side Floor Frame (4) (15) 9367 The front oor frame is made up of 8934 three pieces. The side floor frames and the rear floor frame are made 9367 up of two pieces.
- Page 15 5986 Rear Wall Angle (2) Step 2 Parts Needed For 9917 Rear Wall Channel (2) Frame Assemblies 9923 Side Wall Channel (4) S15 ctr 9298 Side Wall Angle (4) Rear Wall Channel 9917 118 1/8" 300,0 cm 9917 The main frame pieces reinforce the walls.
- Page 16 Step 3 Parts Needed For 10518 Roof Beam (8) Roof Beam Assemblies S16 ctr (30) 10518 The roof beams join the two gables and support the roof panels. The main roof beam is made up of four pieces overlapped back to back at 10518 the center.
- Page 17 Step 4 Parts Needed For 6403 Door Track Splice (1) Door Track Assembly 9366 Door Track (2) NOTE: The door track assembly supports the Door Track Splice (painted part) sliding doors and reinforces the front wall. It is made up of three pieces. 6403 Using the door track splice, (painted), join the door track...
- Page 18 Step 5 Front Floor Assembly (1) Parts Needed For Side Floor Assembly (2) Floor Frame Rear Floor Assembly (1) S18 ctr RIGHT REAR 9299 Assemble the four corners of the oor frame using two screws at each corner as shown. At the front corners fasten bolts through from STEP 8936...
- Page 19 Step 6 Parts Needed For 6515 Wall Panel (2) 9373 Front Wall Panel (2) Corners 6514 Corner Panel (4) S19 ctr Narrow Side (38) 6514 Wide Side NOTE The remainder of the building assembly REAR requires many hours and more than one person.
- Page 20 Door Track Assembly (1) Step 7 Rear Wall Angle Assembly (1) Parts Needed For Side Wall Angle Assemblies (2) Frames Rear Wall Channel Assembly (1) S20 ctr Side Wall Channel Assemblies (2) 5986 (54) Wall Angles Must Face The main frame pieces give rigidity to Inside 9917 the side walls and provide a surface...
- Page 21 Step 8 Parts Needed For 6515 Wall Panel (6) Wall Panels S21 ctr STEP 6515 6515 (84) (15) Each wall panel has a crimped rib 6515 STEP 6515 on one side. The crimped rib should go under the rib of the panel that follows it.
- Page 22 Step 9 Parts Needed For 9369 Door Jamb (2) Front Channel/Door Jamb 9365 Front Wall Channel (2) D22ctr 9365 (18) The door jambs reinforce the door STEP opening and provide an attractive trim. Follow these steps for both INSIDE OF door jambs.
- Page 23 Step 10 Parts Needed For 6000 Right Gable (2) 6001 Left Gable (2) Gable Assemblies A23 ctr 5971 Roof Beam Bracket (4) The gables go on top of the front and rear walls to support the roof beams. NOTE The gables are packed nested together and might be mistaken as one piece.
- Page 24 Step 11 Parts Needed For Left Gable Assemblies (2) Right Gable Assemblies (2) Gables/Braces 6635 Gable Brace (2) A24 ctr (20) Lift and fasten a right and left gable, under angle at corner, to the door track and rear wall angle with screws. Hint: On the rear gable, use a bolt and nut at the overlapping rear wall angle.
- Page 25 Step 12 Parts Needed For Main Roof Beam (1) Roof Beams Single Roof Beam (2) A25 ctr (12) STEP Spread the two halves of the main roof beam and fasten the roof beam to the gable brace of the front gable. Single Roof Beam Assembly Fasten the other end of the main roof beam to the gable brace of the...
- Page 26 Step 13 Parts Needed For 6640 Right Roof Panel (1) Right Roof Panel S26 ctr STEP 6641 6640 Installing the roof panels is best done with a step ladder. Begin installing roof panels at the back right corner 6529 of the building. Each screw and bolt 6529 in the roof requires a washer.
- Page 27 Step 14 Parts Needed For 6641 Left Roof Panel (1) Roof Assembly 6529 Roof Panel (4) S27 ctr 6641 6640 (40) 6529 6529 Install a left roof panel at the left rear corner of the roof. 6529 6529 Install 4 roof panels in the se- quence and positions shown.
- Page 28 Step 15 Parts Needed For 6869 Ridge Cap (2) 6641 Left Roof Panel (1) Ridge Caps & Panels 6640 Right Roof Panel (1) S28 ctr STEP Peak Cap (26) (44) 6869 Install 1 ridge cap on the com- pleted roof section using bolts and nuts.
- Page 29 Step 16 Parts Needed For 6015 Side Roof Trim (4) Roof Trim S29 ctr Attach the side roof trim to the lower end of the roof panels on each STEP side of the building using screws at each panel overlap. Side Trim Cap 6015 NOTE...
- Page 30 3719 Door Handle Brace (2) Step 17 Parts Needed For 10475 Right and Left Doors (2) Door Assembly 10497 Horizontal Door Brace (4) D30ctr 6278 Vertical Door Brace (2) (12) The steps on this page tell how to assemble the right door. You will per- form exactly the same procedures for the left door.
- Page 31 Step 18 Parts Needed For Right Door Assembly (1) Door Installation & Adjustment Left Door Assembly (1) A31ctr Horizontal Door Brace Gable Door Track Door Slide From inside the building, put the bottom of the right door assembly (on your left when you are inside the building) behind door jamb into the front frame track.
- Page 32 BR1010 EH1010 A WL1010 CW32a Anchoring and Floor Frame Anchoring Anchor your building at this time. Floor Frame If you have purchased a Floor Frame Kit you need to install it at this time. SOME FACTS ABOUT RUST 1. Avoid nicking or scraping the coating surface, Rusting is a natural oxidizing process that occurs inside and out.
