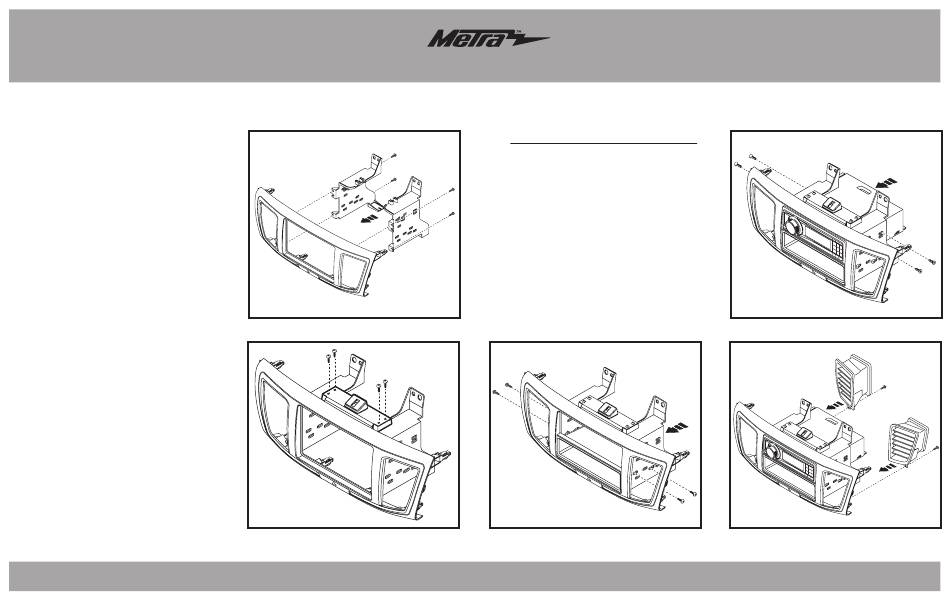

ISO DIN radio provision with pocket
1. Attach the radio brackets to the
radio housing trim panel using (4)
of the #6 x 3/8" Phillips screws.
(Figure A)
2. Attach the top bracket to the top of
the radio brackets using (4) of the
#6 x 3/8" Phillips screws supplied.
(Figure B)
3. Mount the pocket to the bracket/
panel assembly with (4) of the
#8 x 3/8" Phillips screws supplied.
(Figure C)
4. Slide the radio into the assembly
and secure with screws supplied
with the radio. (Figure D)
5. Attach the A/C vents to the radio
trim panel and secure using (2)
of the supplied #8 x 3/8" Phillips
screws. (Figure E)
Kit Assembly
(Figure A)
(Figure B)
99-7804
6. Locate the factory wiring harness
in the dash. Follow the Wiring and
Initialization section of this manual
before completing the installation.
7. Mount the new radio assembly into
the dash and reassemble dash in
reverse order of disassembly.
(Figure C)
5
(Figure D)
(Figure E)
