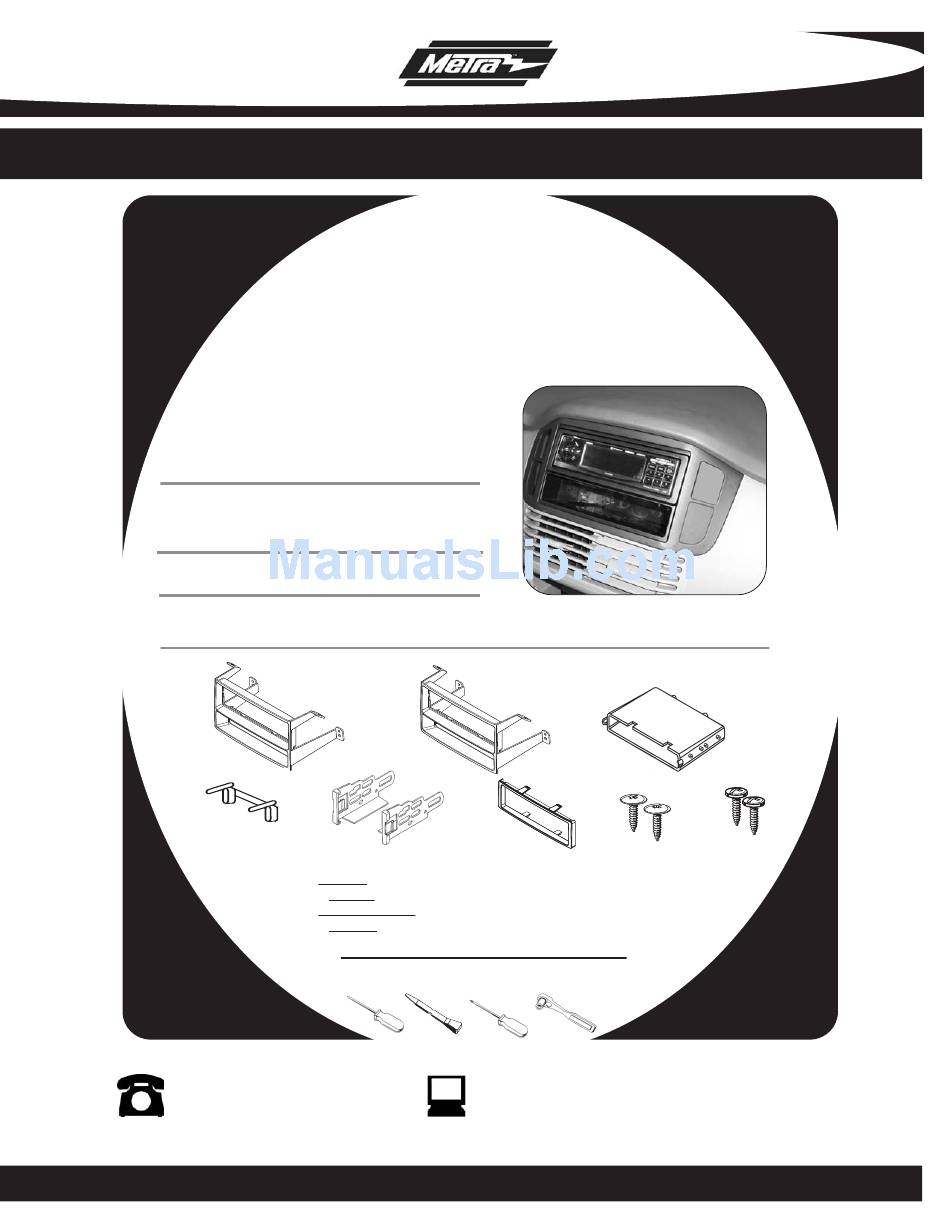

INSTALLATION INSTRUCTIONS FOR PART 99-7861
•2006-2008 (Without Factory Navigation)
99-7861
KIT FEATURES
• Recessed DIN
• Pocket
• ISO Head Unit Provision With Pocket
KIT COMPONENTS
A) "L" Radio Housing • B) "E" Radio Housing • C) Pocket • D) Rear Support Bracket • E) ISO Brackets
F) ISO Trimplate • G) (2) # 8x3/8" Phillips Truss Head Screws H) (2) # 8x3/8" Phillips Pan Head Screws
A
D
E
Small Flat Blade Screwdriver/ • Panel Removal Tool • Phillips Screwdriver • Socket Set
1-800-221-0932
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION REV. 06-29-09
APPLICATIONS
Honda Pilot
•2003-2008
B
F
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-1721 - Honda/Acura harness 1998-up
Antenna Adapter:
• 40-HD10 - Honda antenna adapter 2005-up
TOOLS REQUIRED:
www.metraonline.com
C
G
H

Advertisement

loading

Summary of Contents for Metra Electronics 99-7861

  • Page 1 • 70-1721 - Honda/Acura harness 1998-up Antenna Adapter: • 40-HD10 - Honda antenna adapter 2005-up Small Flat Blade Screwdriver/ • Panel Removal Tool • Phillips Screwdriver • Socket Set 1-800-221-0932 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION REV. 06-29-09 APPLICATIONS Honda Pilot •2003-2008 TOOLS REQUIRED:...
  • Page 2: Table Of Contents

    99-7861 T ABLE OF CONTENTS Dash Disassembly Honda Pilot 2003-2008....... . . 1 Honda Pilot 2006-2008 (Without Factory Navigation) .
  • Page 3: Dash Disassembly

    99-7861 HONDA PILOT 2003-2008 Disconnect the negative battery terminal to prevent an accidental short circuit. Using a small flat blade screwdriver remove the blank plate from upper right side of radio trim panel. (Figure A) Unsnap radio trim panel. Unplug switches and remove panel.
  • Page 4: Honda Pilot 2006-2008 (Without Factory Navigation)

    99-7861 HONDA PILOT 2006-2008 (Without Factory Navigation) Disconnect the negative battery terminal to prevent an accidental short circuit. Remove (2) screws from the top of the instrument panel trim. Unclip and remove the instru- ment panel trim. (Figure A) Unclip and remove the left center trim panel.
  • Page 5: Kit Assembly

    99-7861 •2006-2008 Select the proper radio housing for your vehicle. EX models use radio housing (E) and LX models use radio housing (L). The radio housings are labeled on one of the mounting tabs. (Figure A) Mount the pocket to the back of the radio housing with the (2) #8x3/8”...
  • Page 6: Din Head Unit Provision With Pocket

    99-7861 DIN HEAD UNIT PROVISION WITH POCKET Slide DIN cage (supplied with radio) into the assembled radio housing from the front. (Figure A) Secure DIN cage to radio housing by bending the locking tabs outward. (Figure A) Slide the radio into the DIN cage until it snaps into place.
  • Page 7: Iso Head Unit Provision With Pocket

    99-7861 ISO HEAD UNIT PROVISION WITH POCKET Align the holes in the ISO brackets with the holes in the radio. Mount the brackets to the radio using screws supplied with the radio. (Figure A) Slide the radio/bracket assembly into the assembled radio housing until it snaps into place.
  • Page 8: Final Assembly

    *NOTE: When Black a wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 1-800-221-0932 Rev. 06/29/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION FINAL ASSEMBL Y Strip wire ends back 1/2" Twist ends together...
