INSTALLATION INSTRUCTIONS FOR PART 99-7866
ACURA MDX 2001-2006
99-7866
KIT FEATURES
• DIN Mount Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
KIT COMPONENTS
A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Bracket Supports For Display
A
1-800-221-0932
© COPYRIGHT 2003-2008
APPLICATIONS
B
D
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set
METRA ELECTRONICS CORPORATION
C
www.metraonline.com
Advertisement
Related Manuals for Metra Electronics ACURA 99-7866
Summary of Contents for Metra Electronics ACURA 99-7866

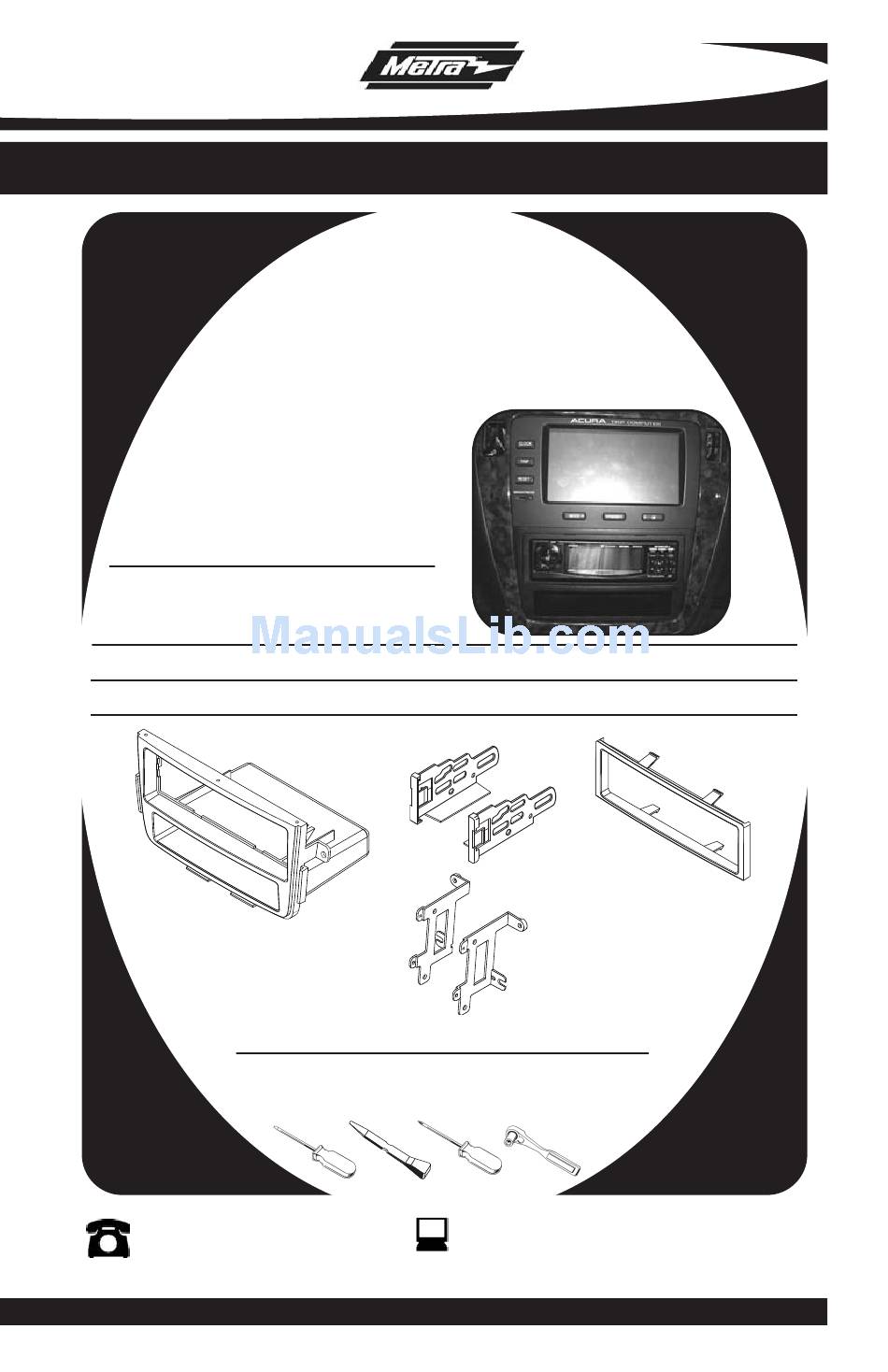

- Page 1 A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Bracket Supports For Display Small Flat Blade Screwdriver/ Panel Removal Tool • Phillips Screwdriver • Socket Set 1-800-221-0932 © COPYRIGHT 2003-2008 APPLICATIONS TOOLS REQUIRED: www.metraonline.com METRA ELECTRONICS CORPORATION...
-
