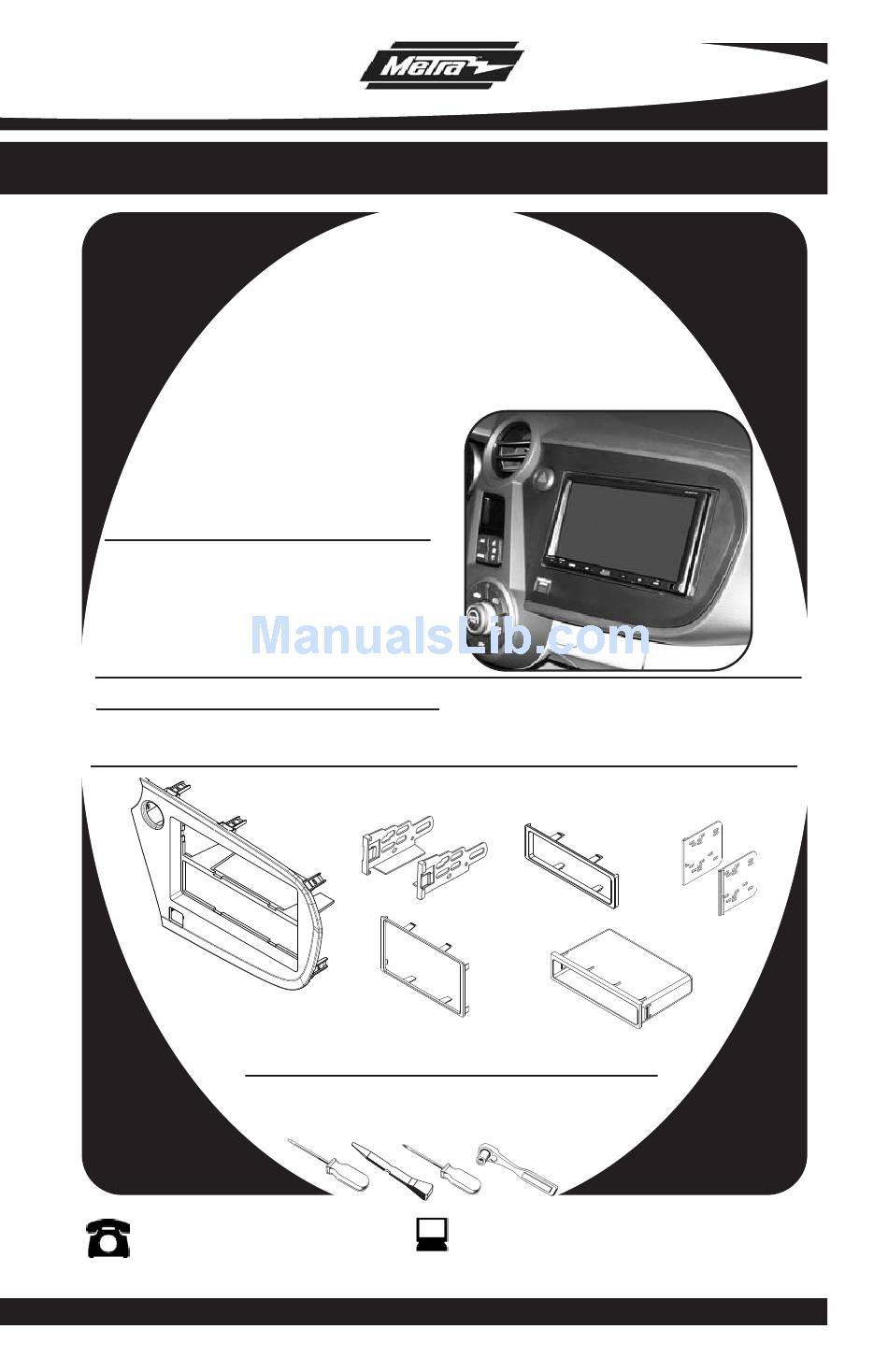

INSTALLATION INSTRUCTIONS FOR PART 99-7878B
99-7878B
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
• Painted A Matte Black Finish
KIT COMPONENTS
• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets
• E) Double DIN Trim Plate • F) Pocket
A
1-800-221-0932
© COPYRIGHT 2009 METRA ELECTRONICS CORPORATION
APPLICATIONS
HONDA Insight
2010
B
E
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Wrench
C
F
www.metraonline.com
D
