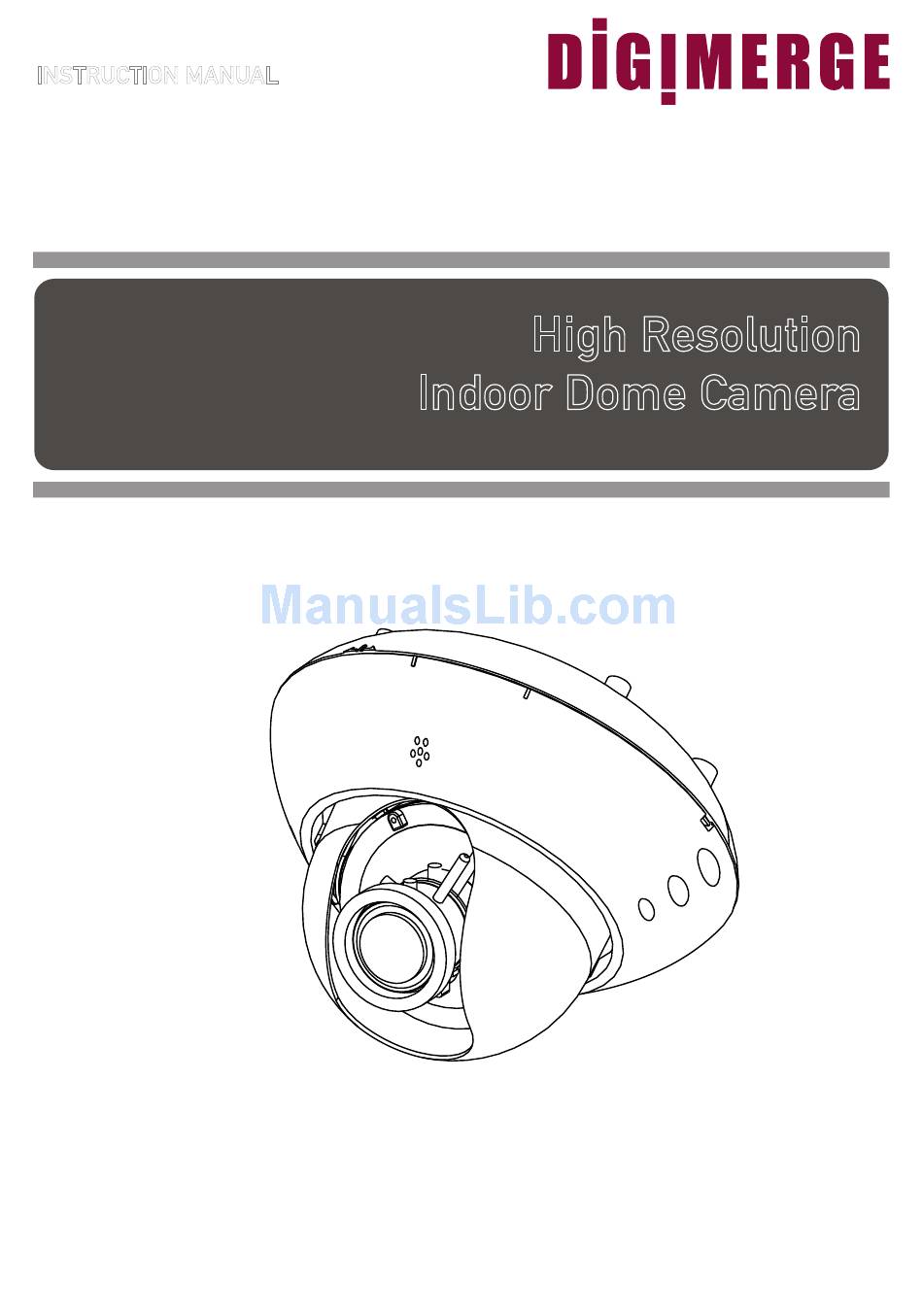

- Page 1 INSTRUCTION MANUAL High Resolution Indoor Dome Camera Model: DBD14 Please read this manual thoroughly before use and keep it handy for future reference.
-
Page 3: Model Features
• 2.8-10.5mm Varifocal Day/Night Lens • Full 3Axis movement • 540 TV lines of resolution • Easy installation. • VIDEO OUT(BNC) • Operates in 12VDC SPECIFICATIONS General DBD14 1/3” Sony Super HAD(tm) II CCD Image Sensor H: 768 V: 494 Effective Pixel H: 5.59mm V: 4.68mm Effective Pixel Area 2:1 Interlace NTSC Scan System H: 15.734KHz, V: 59.94Hz... -
Page 4: Packing Contents
MEASUREMENTS 140.0 mm 95.0 mm 5.51 in 3.74 in 109 mm 4.29 in 140.0 mm 5.51 in 56.0 mm 2.20 in 150 mm 5.91 in PACKING CONTENTS Indoor Dome package contains the following: Camera in housing ---------------------------------1 Instruction guide (This Document) -------------1 Drill Template ----------------------------------------1 Mounting screw pack ------------------------------1 PARTS DESCRIPTION... - Page 5 INSTALLATION. INDOOR DOME 1) Remove camera base by twisting it clockwise to lign up the arrows on the side of the camera housing (see FIG 1). Remove the camera base by pulling it away from the camera. Note: Dome cover is attached to a cord FIG 1 to stop falling off.
-
Page 6: Troubleshooting
TROUBLE SHOOTING Refer to the following table if you are experiencing trouble with your camera. Contact an authorized technician if the table does not provide you with a solution to the trouble. ¤ Nothing appears on the screen. ¤ Check that the power cord and line connection between the camera and monitor are connected properly.
