Page 1: Ptz Camera

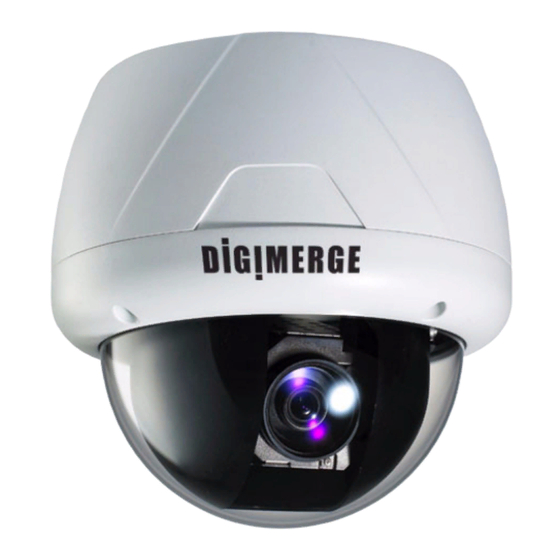

INDOOR/OUTDOOR PTZ CAMERA INSTRUCTION MANUAL English Version 1.0 DPZ16TO27 DPZ16WO37 Right For Business ™ www.digimerge.com © Copyright 2009 Digimerge Technology Inc. - Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN THE COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONAL This lightning flash with arrowhead symbol is intended to alert the user to the presence of un-insulated "dangerous voltage"...
- Page 3 NOTICE Important Safety Guide 1. Read, heed and follow all the Instructions Read all the safety and operating instructions before using the product. 2. Keep this manual Keep this manual for reference in future. 3. Attachments / Accessories Use only the attachments or accessories specified by the manufacturer. 4.
- Page 4 NOTICE Caution Operating Before using, make sure that the power supply and others are properly installed. While operating, if any abnormal condition or malfunction is observed, stop using the product immediately and then contact your local dealer. Handling Do not disassemble or tamper with the parts inside the product. Do not drop or subject the product to shock and vibration as this can damage the product.
-
Page 5: Table Of Contents
TABLE OF CONTENTS ① Introduction Features Package Components Main Part Description ② Installation DIP Switch Setup Installation with Ceiling Mount Bracket Installation with Wall Mount Bracket Wiring and Cabling ③ Operation Check Point before Operation Check Points for Preset and Pattern Function before Operation OSD Menu Reserved Preset (Hot Keys) Preset... -
Page 6: Features
Image Sensor : 1/4" Double density interline transfer CCD (DPZ16WO37 model) 1/4" Super HAD color CCD (DPZ16TO27 model) : ×27 Optical Zoom, ×12 Digital Zoom (DPZ16TO27 model) Zoom ×37 Optical Zoom, ×12 Digital Zoom (DPZ16WO37 model) Day & Night, Privacy Mask, WDR and HLC (WDR : DPZ16WO37 model only) - Page 7 INTRODUCTION MAX. 8 sets of Swing are programmable. This function is that the camera moves repetitively between two preset positions at programmed speeds. MAX. 4 Patterns are programmable. This function is that the camera memorizes the path (mostly curve path) by the joystick of the controller and revives the trajectory operated by the joystick as closely as possible.
-
Page 8: Package Component
INTRODUCTION Package Component Product & Accessories Main Body & Surface Mount Bracket Default Accessories [Main Cable, Wrench] Accessories for The Models with Alarm In/Out Function [I/O Cable] Brackets (Optional) Wall Mount Bracket (Optional) Ceiling Mount Bracket (Optional) [Screws : Machine M5×15, Hex Lag #14×50] [Screws : Machine M5×15, Anchor Bolt 3/8"×70] Speed Dome Camera Instruction Manual 8/49... -
Page 9: Main Part Description
INTRODUCTION Main Part Description Mounting Hook Mounting Screw Hole Main Connector Sensor I/O Port (I/O Model) DIP Switch Dome Cover Dome Cover Do not detach the protection vinyl from the dome cover before finishing all the installation process to protect the dome cover from scratches or dust. -
Page 10: Dip Switch Setup
INSTALLATION DIP Switch Setup Before installing the camera, set up the DIP switch to configure the camera ID and the communication protocol. Camera ID Setup ID numbers of cameras are set up with binary numbers. See the examples shown below. Binary Value ex) ID=5 ex) ID=10... - Page 11 INSTALLATION Communication Protocol Setup Select an appropriate Protocol with the DIP switch combination. Switch Mode Protocol (Pin 1) (Pin 2) (Pin 3) PELCO-D, 2400 bps PELCO-D, 9600 bps PELCO-P, 4800 bps PELCO-P, 9600 bps Others Reserved Match the camera protocol with the camera protocol in the setting of your DVR or controller to control the camera.
- Page 12 INSTALLATION Terminal Resistor Setup The terminal resistor is used for the following cases. Case 1 : In case that the control cable length between a camera and a controller is relatively very long (1:1 Connection) If the communication cable length is very long, the electrical signal will bound in the terminal point.
-
Page 13: Installation With Ceiling Mount Bracket
INSTALLATION Installation with Ceiling Mount Bracket (Optional) ① Remove the ceiling tile from the ceiling ② Pull the wire(s) and cable(s) for the and cut a hole whose diameter is system as below. Wire the cable(s) to the 30~40mm on the ceiling tile to pass the ports. -
Page 14: Installation With Wall Mount Bracket
INSTALLATION Installation with Wall Mount Bracket (Optional) ① Make a hole whose diameter is 30~40mm ② Pull the wire(s) and cable(s) for the on the mounting surface to pass the system as below. Wire the cable(s) to the wire(s) and cable(s) through the mounting ports. -
Page 15: Wiring And Cabling
INSTALLATION Wiring and Cabling POWER MAIN CABLE MONITOR RS-485 CONTROLLER / DVR I/O CABLE SENSOR I/O DOOR SENSOR SWITCH Port Description Main Cable Port Pin Number (RJ45) Connector / Wire Color Signal Video + BNC Connector Video − RS-485 + RS-485 −... - Page 16 INSTALLATION Power Description Carefully check the voltage and current capacity of the rated power. The rated power is indicated in the back of main unit. For the DC input models, be careful with the polarity of DC power. The system should be permanentally damaged by wrong DC input.
- Page 17 INSTALLATION Video Use BNC coaxial cable only. Alarm Input IN 1- Sensor 1 IN 3- Sensor 3 IN COM If you want to use Alarm Input, the types of sensors must be selected in OSD menu. The sensor types are divided into Normal Open and Normal Close. If wrong sensor types are selected, alarms should be activated reversely to sensor inputs.
-
Page 18: Check Point Before Operation
OPERATION Check Points before Operation Before turning on the system, check if the wire(s) and cable(s) are connected properly. Check if the camera ID on the controller is properly selected. The camera ID must be identical to that of the target camera. The camera ID can be checked by reading the DIP switch of the camera or on OSD. -
Page 19: Osd Menu
OPERATION OSD Menu Function With OSD menu, the system can be properly configured for each application. Entering into OSD Go Preset [95] Reserved Presets (Hot Keys) Description Some Preset numbers are reserved to change some parameters without entering into OSD menu. Hot Keys Go Preset [95] : Entering into OSD menu... -
Page 20: Preset
OPERATION Preset Function MAX. 127 positions are programmable. The Preset number can be assigned from 1 to 128 except 95. Preset 95 is reserved for entering into OSD menu. Camera parameters such as White Balance, Auto Exposure and others can be set up independently and each preset can have its own parameter values independently from the other persets. -
Page 21: Pattern
OPERATION Pattern Function This function is that the camera memorizes the path (mostly curve path) by the joystick of the controller and revives the trajectory operated by joystick as closely as possible. MAX. Patterns programmable Maximum 1200 communication commands can be programmed in a pattern. Setting Patterns A Pattern can be created by the following methods. -
Page 22: Group
OPERATION Group Function This function is that the camera memorizes the combination of Presets, Pattern and/or Swings sequently and runs Presets, Pattern and/or Swings repetitively. MAX. 8 sets of Group are programmable. Each group can have MAX. 20 actions which are the combination of Preset, Pattern and Swing. - Page 23 OPERATION Alarm Input 3 Alarm Inputs are available. When external sensors activate, the camera runs pre-defined actions such as Preset, Pattern, Swing and Group. After the pre-defined time period passed, “Post Alarm” activates, which is pre-defined. Note that only the latest alarm input is effective when multiple sensors are activated at the same time.
-
Page 24: Osd Display
OPERATION OSD Display Action Title Preset Label LABEL12345 PRESET1 Alarm Information I:-2- O:1 Camera ID CAM 1 15/4/x1/N P/T/Z Information P/T/Z Information Displays the amount of pan from zero degree vertical, the amount of tilt from zero degree horizontal and current compass direction. Also identifies the amount of the zoom magnification. -
Page 25: ④ Osd Menu
OSD MENU Quick Programming Guide The menu items with < > always have sub-menus. To go to submenus or make the cursor move to the right, press NEAR key. To go to the previous-upper level menus, press FAR key. To make a selection, press NEAR key To cancel a selection, press FAR key To move the cursor in the menu, use the joystick to the Up/Down direction or Left/Right direction. -
Page 26: Display Setup
OSD MENU Display Setup Display setup allows you to program how labels are DISPLAY SETUP displayed on the monitor. In case of AUTO, the labels are ------------------------ displayed on the monitor when there are any changes in CAMERA ID parameters. PTZ INFORMATION AUTO ACTION TITLE... -
Page 27: Privacy Zone Mask Setup
OSD MENU Compass Direction Setup Move the camera to a target position and press NEAR SET NORTH DIRECTION button to save the direction as North. The direction is the ------------------------ reference direction to assign other compass directions. MOVE TO TARGET POSITION [NEAR:SAVE /FAR:CANCEL Privacy Zone Mask Setup... - Page 28 OSD MENU Privacy Zone Mask Area Setup Move your camera to an area to mask. Then a mask and the EDIT MASK 1 menu to adjust the mask size will be displayed. ------------------------ MOVE TO TARGET POSITION [NEAR:SELECT/FAR:CANCEL] Privacy Zone Mask Size Setup Adjusts the mask size.
-
Page 29: Camera Setup
OSD MENU Camera Setup Sets the general functions of zoom camera module. ZOOM CAMERA SETUP ------------------------ Focus Mode [AUTO/MANUAL/SEMIAUTO] FOCUS MODE SEMIAUTO Sets camera Focus mode. DIGITAL ZOOM IMAGE FLIP SEMIAUTO Mode SHARPNESS This mode automatically exchanges focus STABILIZATION modes between Manual Focus mode and <WHITE BALANCE SETUP>... - Page 30 OSD MENU Stabilization [ON/OFF] Compensates image vibrations by wind or others. The images with vibrations are compensated by Digital Zoom function and the image resolution with this function should be lower than normal image resolution when this function is turned on. Also this function may not work properly in the following cases.
- Page 31 OSD MENU Auto Exposure Setup Backlight [OFF/WDR/BLC/HLC] or [OFF/BLC/HLC] AE SETUP - GLOBAL Sets Backlight Compensation. If a bright ------------------------ backlight is present, the subjects in the BACKLIGHT picture may appear dark or as a DAY/NIGHT AUTO BRIGHTNESS silhouette. Backlight compensation IRIS AUTO...
- Page 32 OSD MENU Shutter Speed [ESC/A.Flicker/Manual(×256~1/120000 sec)] Sets Shutter Speed. Shutter Speed is the duration of the electronic shutter. If Iris is set to Manual and Shutter Speed is set to ESC, Shutter Speed has higher priority. If Shutter Speed is set to A.Flicker, to remove Flicker, Shutter Speed should be set to 1/100 sec.
- Page 33 OSD MENU WDR (Wide Dynamic Range) Setup Limit [LOW/MIDDLE/HIGH] ------------------------ Level [0~100] LIMIT MIDDLE LEVEL BACK EXIT HLC (High Light Compensation) Setup Limit [AUTO/MANUAL] When there are too bright lights, this ------------------------ function blocks light sources on images LIMIT COLOR to have better images.
-
Page 34: Motion Setup
OSD MENU Motion Setup Sets the general functions of Pan/Tilt motions. MOTION SETUP Motion [ON/OFF] ------------------------ MOTION LOCK Lock If Motion Lock is set to ON, it is impossible to PWR UP ACTION set up and delete Preset, Swing, Pattern and AUTO FLIP Group. - Page 35 OSD MENU Parking Action Setup This feature allows the camera to begin a specified action PARKING ACTION SETUP after a programmed time of inactivity. ------------------------ PARK ENABLE Park Enable [ON/OFF] WAIT TIME 00:10:00 If Park Enable is set to ON, the camera PARK ACTION HOME runs an assigned function automatically if...
- Page 36 OSD MENU Alarm Input Setup Defines Alarm Function. When an alarm is received, an ALARM INPUT SETUP input signal to the camera triggers the user-defined action ------------------------ programmed for the alarm. ALARM NO. Alarm No [1~3] TYPE N.OPEN Selects a sensor number to set up. ACTION NOT USED HOLD TIME...
-
Page 37: Preset Setup
OSD MENU Preset Setup Preset [1~128] PRESET SETUP Number Selects a preset number to set up. If a ------------------------ selected preset is already defined, the PRESET NO. camera moves to the pre-defined position CLR PRESET CANCEL and preset parameters such as Label and <EDIT SCENE>... - Page 38 OSD MENU Preset Scene Setup ○ 1 Use the Joystick to move the camera to a desired EDIT SCENE - PRESET 1 position. ------------------------ ○ 2 Save the preset position by pressing NEAR key. ○ 3 Press FAR key to cancel targeting the preset position. MOVE TO TARGET POSITION [NEAR:SAVE /FAR:CANCEL]...
-
Page 39: Swing Setup
OSD MENU Swing Setup Swing [1~8] SWING SETUP Number Selects a Swing number to edit. If the ------------------------ selected Swing is not defined, "NOT USED" SWING NO. is displayed in the 1st Position and the 2nd 1ST POS. NOT USED 2ND POS. -
Page 40: Pattern Setup
OSD MENU Pattern Setup Pattern Number [1~4 ] PATTERN SETUP Selects a Pattern number to edit. If the ------------------------ selected pattern number is not PATTERN NO. defined, "UNDEFINED" will UNDEFINED CLR PATTERN CANCEL displayed under the selected pattern RUN PATTERN number. -
Page 41: Group Setup
OSD MENU Group Setup Group Number [1~8] GROUP SETUP Selects a Group number to edit. ------------------------ If the selected Group number is not GROUP NO. UNDEFINED defined, "UNDEFINED" will CLEAR GROUP CANCEL displayed under the selected Group RUN GROUP number. <EDIT GROUP>... - Page 42 OSD MENU ③ Define Action, Dwell time and Option. Note that the dark EDIT GROUP 1 rectangular is the cursor. Move the cursor Left/Right to ------------------------ select an item and move cursor Up/Down to change NO ACTION ### DWELL OPT each parameter.
- Page 43 OSD MENU ⑥ After finishing setting up, press FAR key to exit. Then the EDIT GROUP 1 cursor will move to “SAVE”. Press Near key to save the ------------------------ data. NO ACTION ### DWELL OPT ------------------------ 1 PRESET 1 00:03 360 2 NONE 3 NONE 4 NONE...
-
Page 44: System Initialize
OSD MENU System Initialization Clear All Data Deletes all configuration data and the system SYSTEM INITIALIZE is set to the factory default. ------------------------ Clear Display Set Initializes all the configuration data for Display. CLEAR ALL DATA CLR DISPLAY SET Clear Camera Set Initializes all the configuration data for CLR CAMERA SET Camera. -
Page 45: ⑤ Specifications
SPECIFICATIONS Specifications CAMERA MODEL # DPZ16WO37 Video Signal Format NTSC Image Sensor 1/4'' Double Density Interline Transfer CCD Total Pixels 811(H)×508(V) 410K 795(H)×596(V) 470K Effective Pixels 768(H)×494(V) 380K 752(H)×582(V) 440K Horizontal Resolution 540 TV Lines(Color), 600 TV Lines(B/W) Video Signal-to-Noise 50 dB (AGC Off) ×37 Optical Zoom, ×12 Digital Zoom Zoom... - Page 46 SPECIFICATIONS CAMERA MODEL # DPZ16TO27 Video Signal Format NTSC Image Sensor 1/4'' Super HAD color CCD Total Pixels 811(H)×508(V) 410K 795(H)×596(V) 470K Effective Pixels 768(H)×494(V) 380K 752(H)×582(V) 440K Horizontal Resolution 540 TV Lines(Color), 600 TV Lines(B/W) Video Signal-to-Noise 50 dB (AGC Off) ×27 Optical Zoom, ×12 Digital Zoom...
- Page 47 SPECIFICATIONS SYSTEM SPECIFICATIONS 360°(Endless) Movement Range Tilt 90° Preset 360°/sec. Speed 0.05 ~ 360°/sec. (Proportional to Zoom) Swing 1~ 180°/sec. Preset 127 Presets (Label, Independent Camera Parameter Setting) Pattern 4 Patterns [1200 Commands(Approx. 5 Minute) / Pattern] Swing 8 Swings 8 Groups (MAX.
- Page 48 SPECIFICATIONS MECHANICAL Ceiling Mount (Optional) Wall Mount (Optional) Dome Polycarbonate Material Internal Polycarbonate, ABS External Aluminium ∅150mm / ∅ 5.9” Dome Size ∅192×265.3 mm Dimension 296×276.6 mm Weight Approx 3.2 Kg Approx 3.8Kg [Note] 1) Specification and features are subject to change without prior notice. 2) Specification and features are different by models.
-
Page 49: Dimension
SPECIFICATIONS Dimension Main Body Ceiling Mount Type (Optional) 56.4 56.4 1.5" NPT 158.2 Wall Mount Type (Optional) 118.6 4- 8 [Unit : mm] Speed Dome Camera Instruction Manual 49/49...
