- Page 1 TECHNICAL MANUAL Ciao outdoor entrance panel Art. CA2100A - CA2200 Passion.Technology.Design.
-
Page 2: Table Of Contents
Manual / Instruction sheet. • Comelit Group S.p.A. reserves the right to change the information provided in this Manual / Instruction Sheet at any time and without prior notice. Table of contents Description .................. -
Page 3: Description

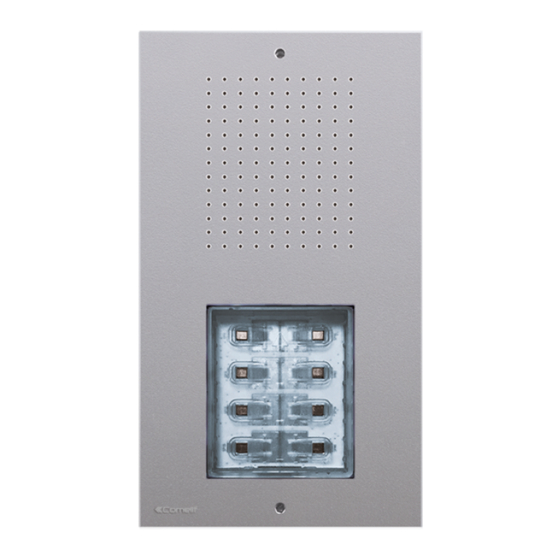

Description Ciao series outdoor audio entrance panel for Simplebus2 system, designed for systems from 1 to 8 calls. • Technopolymer front cover offering resistance to atmospheric agents (protection rating IP54 and coating with anti-UV treatment) and acts of vandalism (protection rating IK08). •... -
Page 4: Art. Ca2200
Art. CA2200 art. CA9213 art. CA9210 art. CA9211 art. CA9212 1. Call buttons 1 / 2 / 4 / 8 users (available to purchase separately) 2. TM1 button brightness control/switch-off trimmer 3. S1 dip switch for button type configuration (1 / 2 / 4 / 8 users) and button module addressing 4. -
Page 5: Art. Ca2200
ELECTRICAL SPECIFICATIONS Type of power supply Power supply via video entry bus Power supply voltage 33 VDC Absorption in standby (W) Maximum absorption (W) HARDWARE CHARACTERISTICS Call type Buttons Type of buttons Mechanical Number of buttons (no.) Backlighting colour White Terminals L L COM DO RTE C NO NC SE+ SE Removable terminals... -
Page 6: Installing Entrance Panel Art. Ca2100A
Installing entrance panel art. CA2100A f Set the S1 DIP-switches according to the number of buttons. CA9213 CA9210 (Default) CA9212 CA9211 Changing nameplates... -
Page 7: Installing Entrance Panel Art. Ca2100A With Button Module Art
Installing entrance panel art. CA2100A with button module art. CA2200 100 mm 28 mm f Set the S1 DIP-switches according to the number of buttons. art. CA9213 art. CA9210 art. CA9211 art. CA9212... - Page 8 The addressing of button modules allows, if a module art. CA2200 is replaced, just the address of the replaced module art. CA2200 to be programmed, without having to reprogram all the buttons. 1 2 3 4 1 2 3 4 1 2 3 1 2 3 MAX 4...
-
Page 9: Connections
