Door entry monitor and with comelbus wiring (12 pages)
Summary of Contents for Comelit Diva Series
Page 1

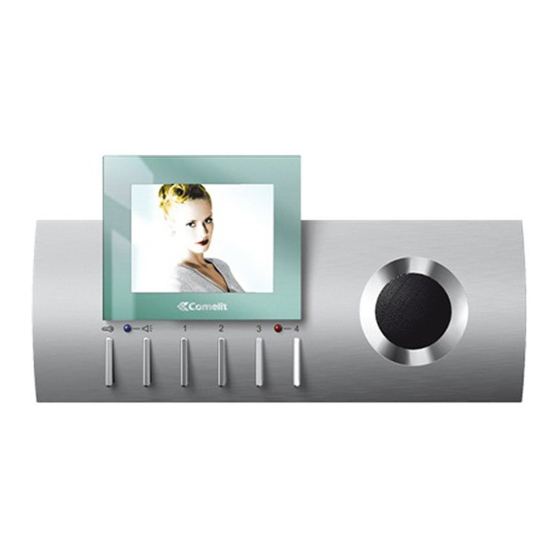

FT CB 05 Videocitofono Viva-voce con display a colori serie Diva a cablaggio Comelbus Diva series hands-free video door entry colour monitor for use with the Comelbus digital door entry system Vidéophone Mains libres avec afficheur LDC en couleur série Diva à...
Page 2
This is proved by the CE label displayed on the products. assistance of a qualified engineer. Comelit Group S.p.A. Does not accept any responsibility for improper use of the apparatus, • do not insert any objects or spill liquids inside the device.
Page 3
FT CB 05 The Diva series hands-free video door entry system monitors (art. 4780) are Die Monitore der Video-Gegensprechanlage mit Lautsprechfunktion der Reihe compatible with the monitors of the previous Eurocom and Videocom series. Diva (Art. 4780) sind mit den Monitoren der vorhergehenden Baureihen The fixing bracket (art.
Page 4
GROUP S.P .A. Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 FT CB 05...
Page 5
FT CB 05 Fig. 1 Installazione monitor art. 4780 su scatola da incasso. La scatola 503 serie civile (art. 4517) deve essere murata in posizione orizzontale. R91DL1 OUT1 “ Installazione monitor art. 4780 a parete. “ Come togliere il monitor. ALE AL PAN “...
Page 6
GROUP S.P .A. At the same time and continuously, press the audio pushbutton ( Après la programmation du 3140/6D ou du 3170, la bride art. 4788 émet une totalité de confirmation et elle quitte la programmation en and Privacy (pushbutton 4) buttons for at least 5 seconds. mode automatique.
Page 7
FT CB 05 Schritt 1-B (wird als Alternative zum vorherigen Schritt ausgeführt, Recolocar na posição inicial o jumper JP4 de programação do falls der Bügel bereits mit dem Monitor montiert wurde). suporte Art. 4788. Gleichzeitig andauernd für mindestens 5 Sekunden die Tasten Passo 4-B (a ser efetuado como alternativa ao anterior na correspondência do passo 1-B).
Page 8
GROUP S.P .A. VDL/01D Impianto base con un ingresso Audio/Video digitale (Pulsantiera Logicom). Basic system with one digital Audio/Video entrance (Logicom Entrance Panel). Installation de base avec une entrée Audio/Vidéo numérique (Plaque de rue Logicom). Basissyteem met één digitaal Audio/Video ingang (Logicom Entreepaneel). Basis-System mit 1 digitalem Audio/Video Eingang (Tastatur Logicom).
Page 9
FT CB 05 VDL/EN/183D Impianto base un ingresso Audio/Video con centralino di portineria (Pulsantiera Vandalcom). Basic system with one Audio/Video entrance with porter switchboard (Vandalcom Entrance Panel). Installation de base une entrée Audio/Vidéo avec HP-micro (Plaque de rue Vandalcom). Basissysteem met één Audio/Video ingang met portierscentrale (Vandalcom Entreepaneel). Basis-System 1 Audio/Video Eingang mit Pförtnerzentrale (Tastatur Vandalcom).
Page 10
GROUP S.P .A. VDL/EN/184D Impianto 2 ingressi Audio/Video digitali (Pulsantiera Powercom). System with 2 digital Audio/Video entrances (Powercom Entrance Panel). Installation 2 entrées Audio/Vidéo numériques (Plaque de rue Powercom). Systeem met 2 digitale Audio/Video ingangen (Powercom Entreepaneel). Anlage 2 digitale Audio/Video Eingänge (Tastatur Powercom). Equipamento com 2 entradas Áudio-vídeo digitais (Botoeira Powercom).
Page 11
FT CB 05 Variante CB/DB - Variant CB/DB - Variante CB/DB - Variant CB/DB - Variante CB/DB - Variante CB/DB - Variant CB/DB Utilizzo per usi vari del pulsante 1. Einsatz der Taste 1 für verschiedene Zwecke. Use of various uses of pushbutton 1. Uso para vários fins do botão 1.
Page 12
Conexión monitor para instalaciones Comelbus en configuración completa. Verbinding van monitor voor Comelbus sytemen in de complete configuratie. Comelit Group S.p.A. - Via Don Arrigoni 5 - 24020 Rovetta S. Lorenzo BG Italy - tel. (+39) 0346 750 011 - fax (+39) 0346 71436 www.comelit.it info@comelit.it...
