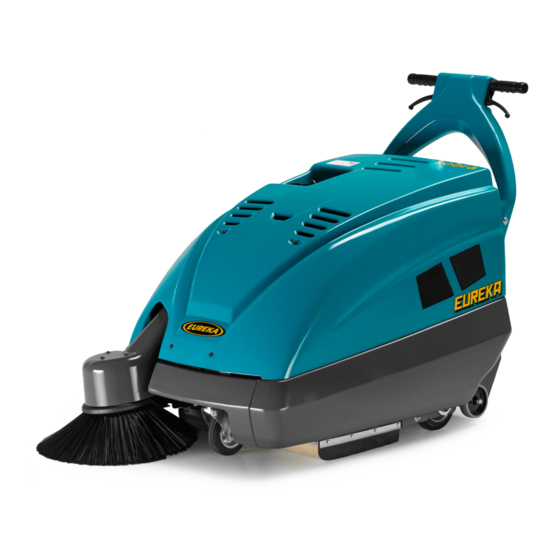

- Page 1 INSTRUCTION MANUAL KOBRA SH - KOBRA EB Instruction manual (Original instruction) Attention: Read the instruction before use the machine...
-
Page 3: Table Of Contents
CONTENT INDEX PRESENTATION ......................................4 ATTENTION! ....................................... 4 MACHINE IDENTIFICATION ..................................5 WARNINGS AND RECOMMENDATIONS ................................ 6 GENERAL WARNINGS AND ADVICE ................................6 DISPOSAL ........................................7 picture description ....................................8 USE of MACHINE .....................................10 DRIVE ..........................................10 PARKING BRAKE ......................................10 RELEASE BRAKE ......................................10 CLEANING THE FILTERS ....................................10 VACUUM CUT-OFF ......................................10 "HONDA"... -
Page 4: Presentation
PRESENTATION Our company, a leader in the production of industrial cleaning machines, is delighted to have you among the owners of this sweeper and is sure you will be fully satisfied with it. We are sure that during its use, you will see the quality, robustness and possibilities of use it has to offer. This sweeper is suitable for private, industrial or public use. This manual descri- bes the various installation operations, controls and maintenance interventions necessary to maintain perfect efficiency of your sweeper. -
Page 5: Machine Identification
MACHINE IDENTIFICATION The machine and manufacturer are identified through three plates on the rear of the dirt container REFER TO THESE DETAILS WHEN ORDERING SPARE PARTS OR MAKING ANY OTHER ENQUIRY TO THE MANUFACTURER. The sweepers conform with the EEC directives and show the CE mark... -
Page 6: Warnings And Recommendations
WARNINGS AND RECOMMENDATIONS • The sweeper is designed to carry out the cleaning of dry floors; • To avoid unpermitted use of the machine, the power supply must be interrupted, to do this remove the ignition key; • Do not use for toxic powders; •... -
Page 7: Disposal
DISPOSAL All packaging is recyclable. The packaging should not be thrown away with domestic waste, but sent to the relevant collection centres. EXHAUSTED OIL Exhausted oil must never be disposed of in the environment. It must be sent to authorised collection companies, in compliance with legislation in force. Temporary storage must be in airtight containers, fitted with a sealed lid, to avoid contact with the environment and rainwater. -
Page 8: Picture Description
picture description FIG. 1 FIG.2 FIG.1 FIG.2 ELECTRIC VERSION Traction lever Side brush handle Flap lever Vacuum cut-off handle Traction adjustment screw Keyswitch Flap lever adjustment screw Low battery charge warning light Handle adjustment screw Cut out switch 50Ah Motor connector Battery Fixed battery connector FIG. - Page 9 55-60mm FIG. 6 FIG. 5 FIG.5 FIG.6 Clean path Filter cover Clamp Bag filter Steel bar Filter shake lever FIG. 8 FIG. 7 FIG.7 FIG.8 Dirt container Side brush adjustment screw Main brush blocking screw Side brush Main brush Side brush blocking screw Main brush pressure adjustment screw Front wheel brake lever Unblocking brake lever...
-
Page 10: Use Of Machine
USE of MACHINE DRIVE The mechanical traction is engaged by pulling the lever (pic.1 pos.A) from the handle. Note: we recommend, when turning, that speed be decreased to gain better maneuverability. PARKING BRAKE The parking brake is activated by pressing the block lever located on the front wheel (pic.8 pos.D) RELEASE BRAKE FIG. -
Page 11: Electric Motor
ELECTRIC MOTOR STARTING THE ENGINE BATTERY CHARGE INDICATOR (FIG.2 POS.D) Turn the key in pos.1 (fig.2 pos.C) It monitories the level of charge of the battery. While the green led is on, you can sweep. When the yellow led gets on, you must take care to go to STOPPING THE ENGINE have the battery charged. -
Page 12: Technical Chart Sh
TECHNICAL CHART sh Cleaning path with side brush 780 mm Hourly performance with side brush 3.510 m²/h MAIN SPECIFICATION Forward speed 0 - 4,5 km/h Dirt container capacity 40 L Maximum gradient 15 % Dimensions with side brush 1.555 x 835 x 980 mm Dimensions without side brush 1.320 x 735 x 980 mm Weight... -
Page 13: Technical Chart Eb
TECHNICAL CHART eb Cleaning path with side brush 780 mm Hourly performance with side brush 3.510 m²/h MAIN SPECIFICATION Forward speed 0 - 4,5 km/h Dirt container capacity 40 L Maximum gradient 15 % Dimensions with side brush 1.555 x 835 x 980 mm Dimensions without side brush 1.320 x 735 x 980 mm Weight... -
Page 14: Troubleshooting Table
TROUBLESHOOTING TABLE ATTENTION! ANY TYPE OF SERVICE OR TESTING, WITH THE EXCEPTION OF THOSE DESCRIBED IN THE ENGINE OR BATTERY MANUAL, MUST ONLY BE CARRIED OUT BY AN AUTHORISED SUPPORT CENTRE (ASC) “HONDA” MOTOR PROBLEM CAUSE SOLUTION Carburettor out of adjustment Get the carburettor setting adjusted The engine smokes and is noisier than usual Exhaust pipe broken... -
Page 15: Service And Maintenance Records
SERVICE AND MAINTENANCE RECORDS 1° SERVICE AND MAINTENANCE RECORD MONTH YEAR WORK. HOURS UP TO 50 HOURS DATE ELECTRIC VERSION HONDA VERSION □ Clean with compressed air the external area of the Before starting the cleaning check carefully, the machine and take care that there are no leaks of: fuel, oil, etc... - Page 16 2° SERVICE AND MAINTENANCE RECORD MONTH YEAR WORK. HOURS UP TO 100 HOURS DATE ELECTRIC VERSION HONDA VERSION □ Clean with compressed air the external area of the Before starting the cleaning check carefully, the machine and take care that there are no leaks of: fuel, oil, etc... motor, in particular the slots located in the rear part Then open the bonnet and make the same checks for the engine.
- Page 17 SERVICE AND MAINTENANCE RECORDS MONTH YEAR WORK. HOURS UP TO 200 HOURS AS FOR 50 HOURS DATE THE SERVICE WAS CARRIED OUT ON: STAMP OF DEALER WHO CARRIED OUT SERVICE NAME: SURNAME: SIGNATURE: MONTH YEAR WORK. HOURS UP TO 300 HOURS AS FOR 100 HOURS DATE THE SERVICE WAS CARRIED OUT ON: STAMP OF DEALER WHO CARRIED OUT SERVICE...
- Page 18 SERVICE AND MAINTENANCE RECORDS MONTH YEAR WORK. HOURS UP TO 600 HOURS AS FOR 100 HOURS DATE THE SERVICE WAS CARRIED OUT ON: STAMP OF DEALER WHO CARRIED OUT SERVICE NAME: SURNAME: SIGNATURE: MONTH YEAR WORK. HOURS UP TO 700 HOURS AS FOR 200 HOURS DATE THE SERVICE WAS CARRIED OUT ON: STAMP OF DEALER WHO CARRIED OUT SERVICE...
- Page 19 Legal representative and person authorized to compile the technical file: Gianfranco Lago Cittadella, 15/05/2020 EUREKA S.p.A EUREKA S.p.A (Il legale Rappresentante) (Legal representative) EUREKA S.p.A. Unipersonale Viale dell’Artigianato 30/32, 35013 CITTADELLA (PD) - ITALY EUREKA S.p.A. Unipersonale Viale dell’Artigianato 30/32, 35013 CITTADELLA (PD) - ITALY...
