Page 18 Quick Reference Guide
Solution 6+6
Codepad Connections For Partitioned Systems

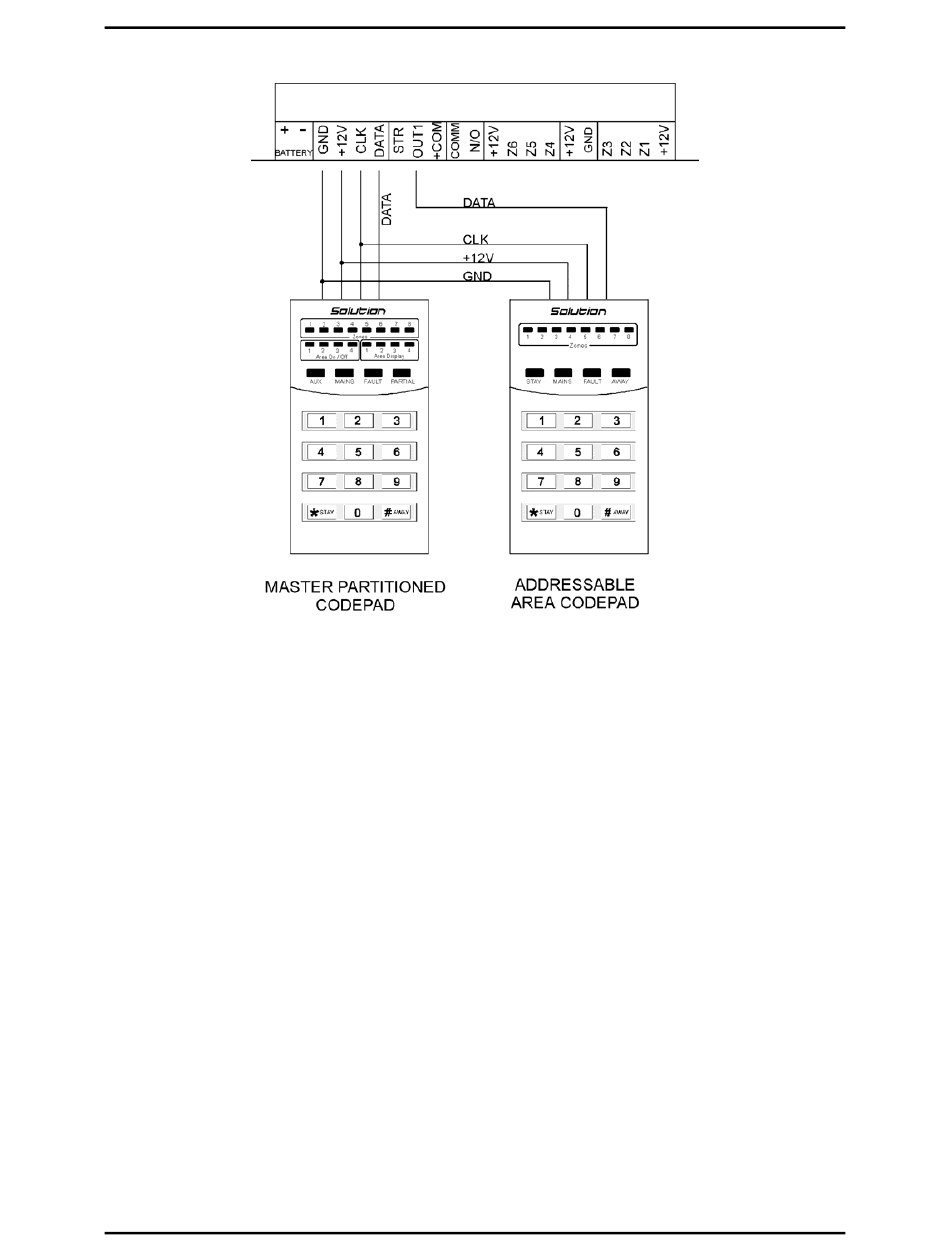

Figure 6: Wiring Diagram For Master Partitioned Codepad and Area Addressable Codepad
If the "Area Addressable" codepad is assigned to Area 1, DIP Switch 1 on the back of the remote codepad will
need to be in the "ON" position. The following locations for Output 1 will need to be programmed.
[LOCATION 186 = 6, 187 = 0]
If the "Area Addressable" codepad is assigned to Area 2 DIP Switch 2 on the back of the remote codepad will
need to be in the "ON" position. The following locations for Output 1 will need to be programmed.
[LOCATION 186 = 6, 187 = 1]
