Page 16
Quick Reference Guide
Solution 6+6
Wiring Diagram

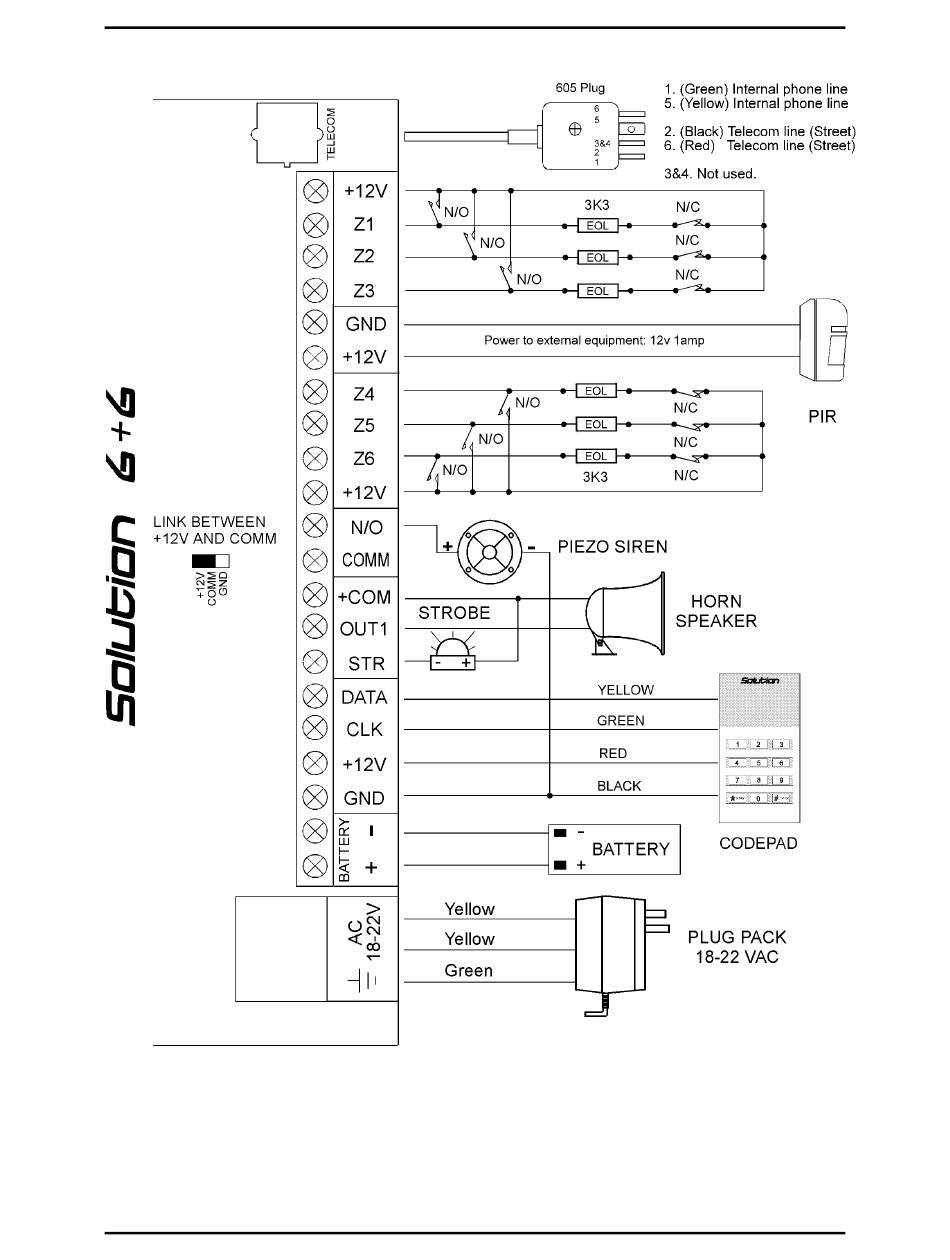

Figure 4: Wiring Diagram
SOL 6+6 QUICK REF GUIDE.DOC
Bosch Security Systems Pty Limited
