6/18 Bosch Rexroth AG
3

Product features

3�1

General information

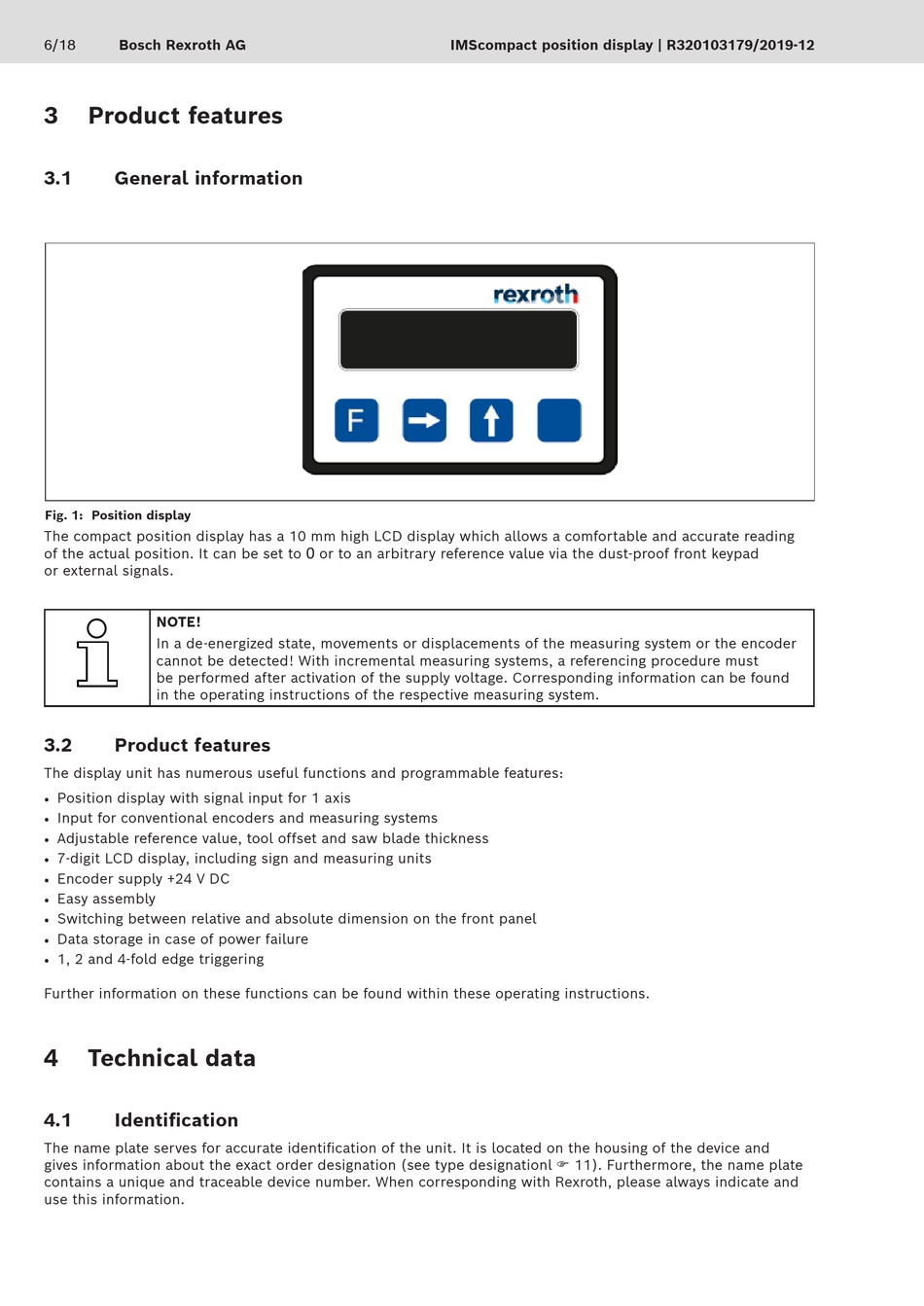

Fig� 1: Position display
The compact position display has a 10 mm high LCD display which allows a comfortable and accurate reading
of the actual position. It can be set to
or external signals.
NOTE!
In a de-energized state, movements or displacements of the measuring system or the encoder
cannot be detected! With incremental measuring systems, a referencing procedure must
be performed after activation of the supply voltage. Corresponding information can be found
in the operating instructions of the respective measuring system.
3�2 Product features
The display unit has numerous useful functions and programmable features:
• Position display with signal input for 1 axis
• Input for conventional encoders and measuring systems
• Adjustable reference value, tool offset and saw blade thickness
• 7-digit LCD display, including sign and measuring units
• Encoder supply +24 V DC
• Easy assembly
• Switching between relative and absolute dimension on the front panel
• Data storage in case of power failure
• 1, 2 and 4-fold edge triggering
Further information on these functions can be found within these operating instructions.
4

Technical data

4�1

Identification

The name plate serves for accurate identification of the unit. It is located on the housing of the device and
gives information about the exact order designation (see type designationl  11). Furthermore, the name plate
contains a unique and traceable device number. When corresponding with Rexroth, please always indicate and
use this information.
IMScompact position display | R320103179/2019-12
0
or to an arbitrary reference value via the dust-proof front keypad
