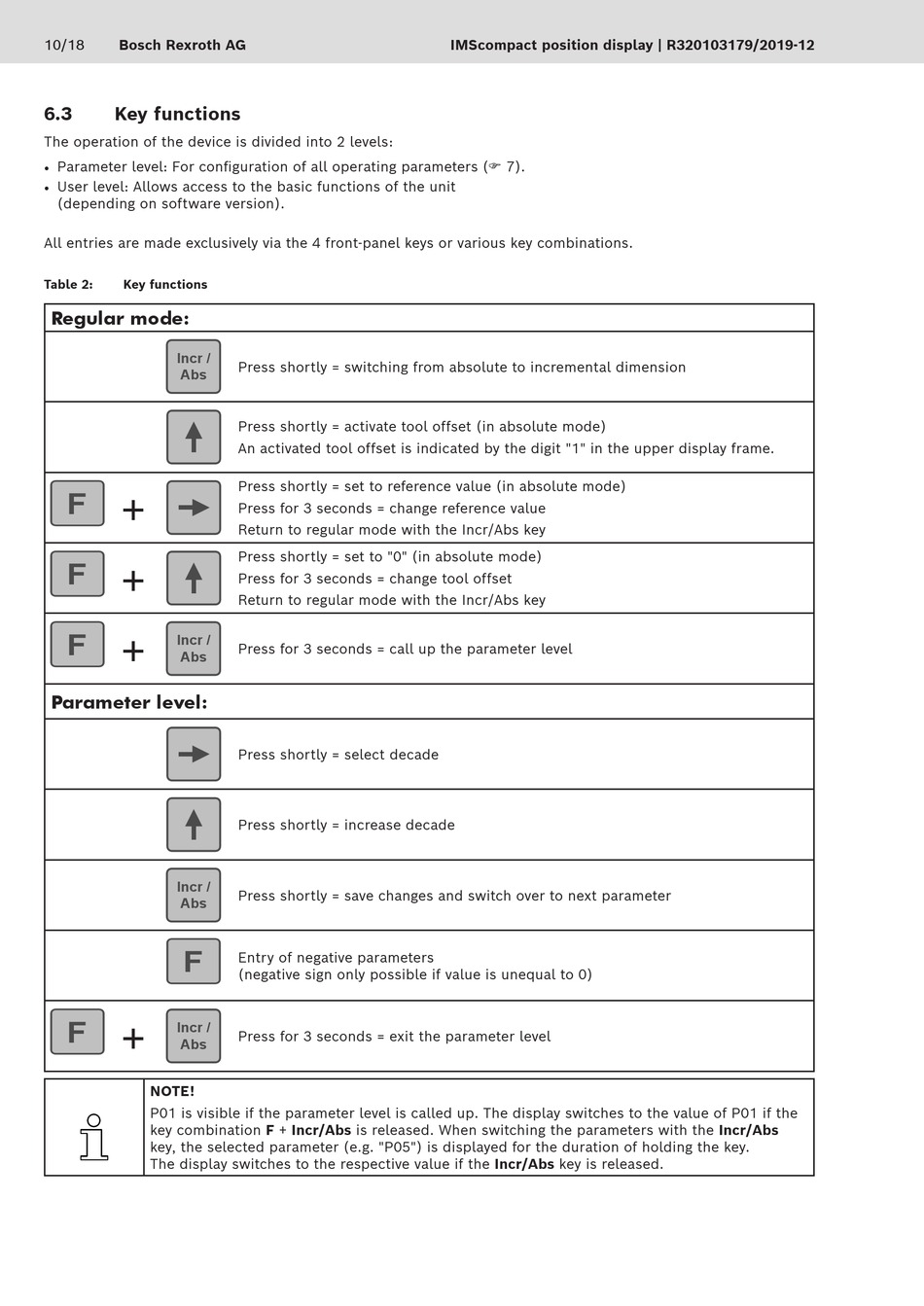

Key functions

The operation of the device is divided into 2 levels:
• Parameter level: For configuration of all operating parameters ( 7).
• User level: Allows access to the basic functions of the unit
(depending on software version).
All entries are made exclusively via the 4 front-panel keys or various key combinations.
Table 2: Key functions
Regular mode:
Incr /
Abs
F
+
F
+
F
+
Incr /
Abs
Parameter level:
Incr /
Abs
F
F
+
Incr /
Abs
NOTE!
P01 is visible if the parameter level is called up. The display switches to the value of P01 if the
key combination F + Incr/Abs is released. When switching the parameters with the Incr/Abs
key, the selected parameter (e.g. "P05") is displayed for the duration of holding the key.
The display switches to the respective value if the Incr/Abs key is released.
Press shortly = switching from absolute to incremental dimension
Press shortly = activate tool offset (in absolute mode)
An activated tool offset is indicated by the digit "1" in the upper display frame.
Press shortly = set to reference value (in absolute mode)
Press for 3 seconds = change reference value
Return to regular mode with the Incr/Abs key
Press shortly = set to "0" (in absolute mode)
Press for 3 seconds = change tool offset
Return to regular mode with the Incr/Abs key
Press for 3 seconds = call up the parameter level
Press shortly = select decade
Press shortly = increase decade
Press shortly = save changes and switch over to next parameter
Entry of negative parameters
(negative sign only possible if value is unequal to 0)
Press for 3 seconds = exit the parameter level
