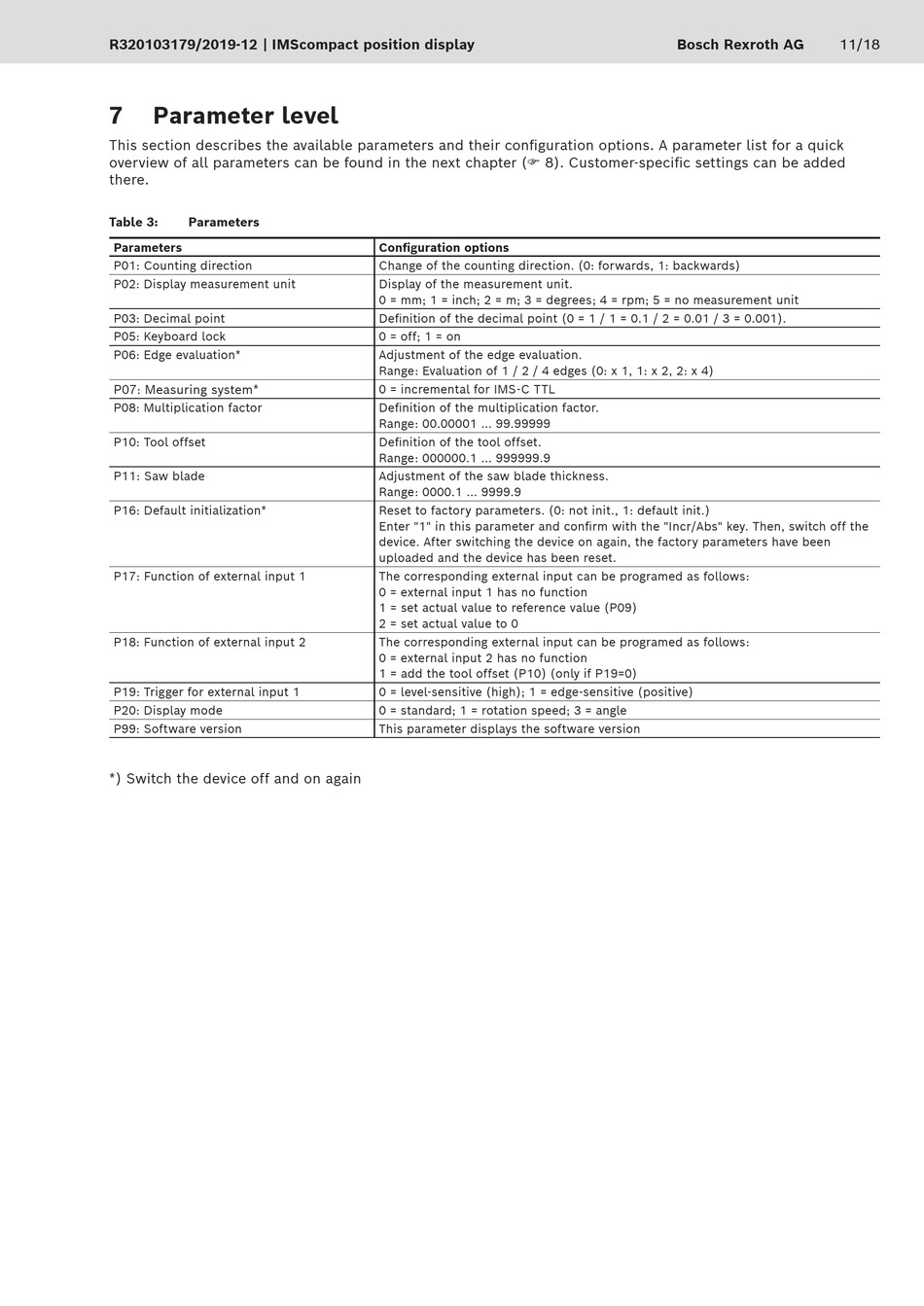

Parameter level

This section describes the available parameters and their configuration options. A parameter list for a quick
overview of all parameters can be found in the next chapter ( 8). Customer-specific settings can be added
there.
Table 3: Parameters
Parameters
P01: Counting direction
P02: Display measurement unit
P03: Decimal point
P05: Keyboard lock
P06: Edge evaluation*
P07: Measuring system*
P08: Multiplication factor
P10: Tool offset
P11: Saw blade
P16: Default initialization*
P17: Function of external input 1
P18: Function of external input 2
P19: Trigger for external input 1
P20: Display mode
P99: Software version
*) Switch the device off and on again
Configuration options
Change of the counting direction. (0: forwards, 1: backwards)
Display of the measurement unit.
0 = mm; 1 = inch; 2 = m; 3 = degrees; 4 = rpm; 5 = no measurement unit
Definition of the decimal point (0 = 1 / 1 = 0.1 / 2 = 0.01 / 3 = 0.001).
0 = off; 1 = on
Adjustment of the edge evaluation.
Range: Evaluation of 1 / 2 / 4 edges (0: x 1, 1: x 2, 2: x 4)
0 = incremental for IMS-C TTL
Definition of the multiplication factor.
Range: 00.00001 ... 99.99999
Definition of the tool offset.
Range: 000000.1 ... 999999.9
Adjustment of the saw blade thickness.
Range: 0000.1 ... 9999.9
Reset to factory parameters. (0: not init., 1: default init.)
Enter "1" in this parameter and confirm with the "Incr/Abs" key. Then, switch off the
device. After switching the device on again, the factory parameters have been
uploaded and the device has been reset.
The corresponding external input can be programed as follows:
0 = external input 1 has no function
1 = set actual value to reference value (P09)
2 = set actual value to 0
The corresponding external input can be programed as follows:
0 = external input 2 has no function
1 = add the tool offset (P10) (only if P19=0)
0 = level-sensitive (high); 1 = edge-sensitive (positive)
0 = standard; 1 = rotation speed; 3 = angle
This parameter displays the software version
