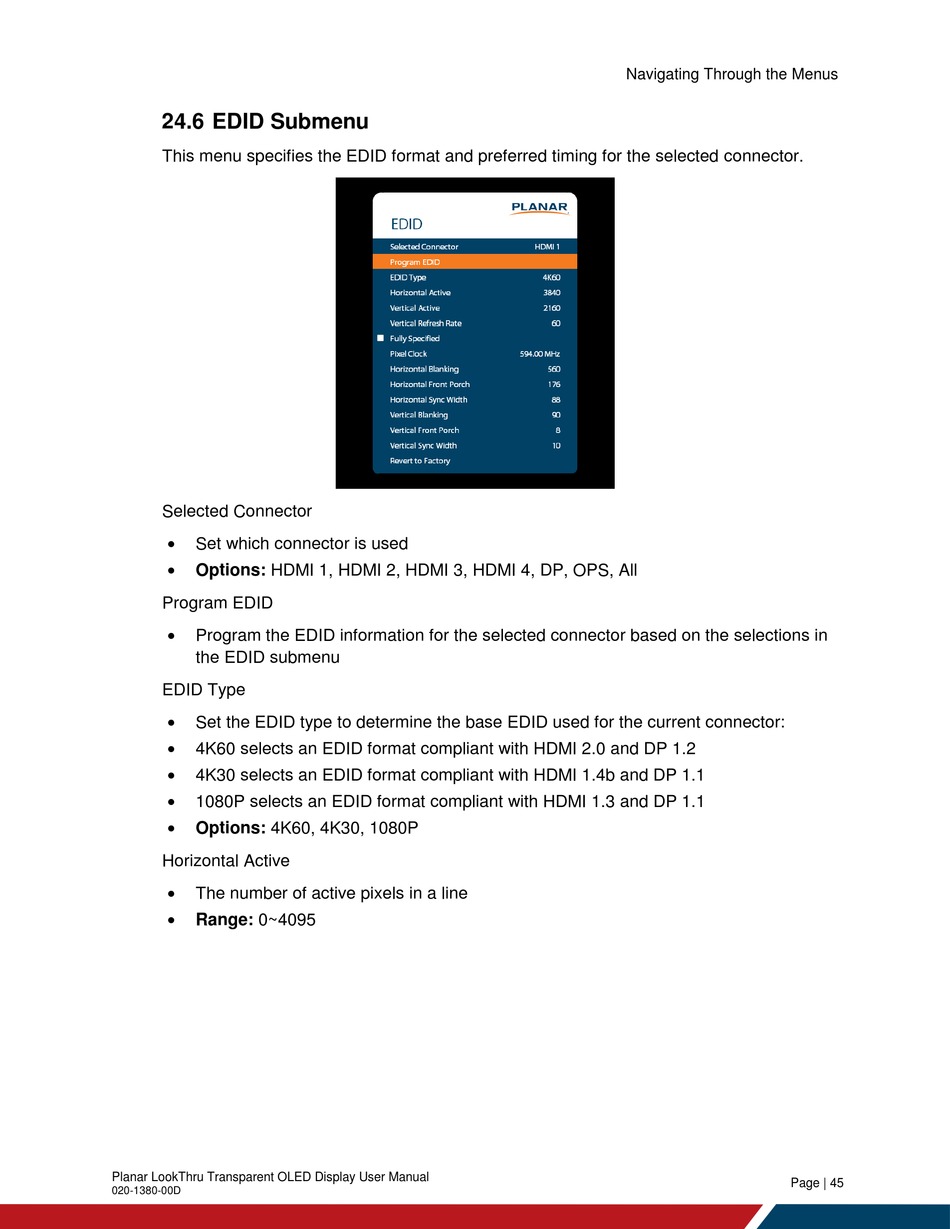

24.6 EDID Submenu

This menu specifies the EDID format and preferred timing for the selected connector.
Selected Connector

Set which connector is used

Options: HDMI 1, HDMI 2, HDMI 3, HDMI 4, DP, OPS, All
Program EDID

Program the EDID information for the selected connector based on the selections in
the EDID submenu
EDID Type

Set the EDID type to determine the base EDID used for the current connector:

4K60 selects an EDID format compliant with HDMI 2.0 and DP 1.2

4K30 selects an EDID format compliant with HDMI 1.4b and DP 1.1

1080P selects an EDID format compliant with HDMI 1.3 and DP 1.1

Options: 4K60, 4K30, 1080P
Horizontal Active

The number of active pixels in a line

Range: 0~4095
