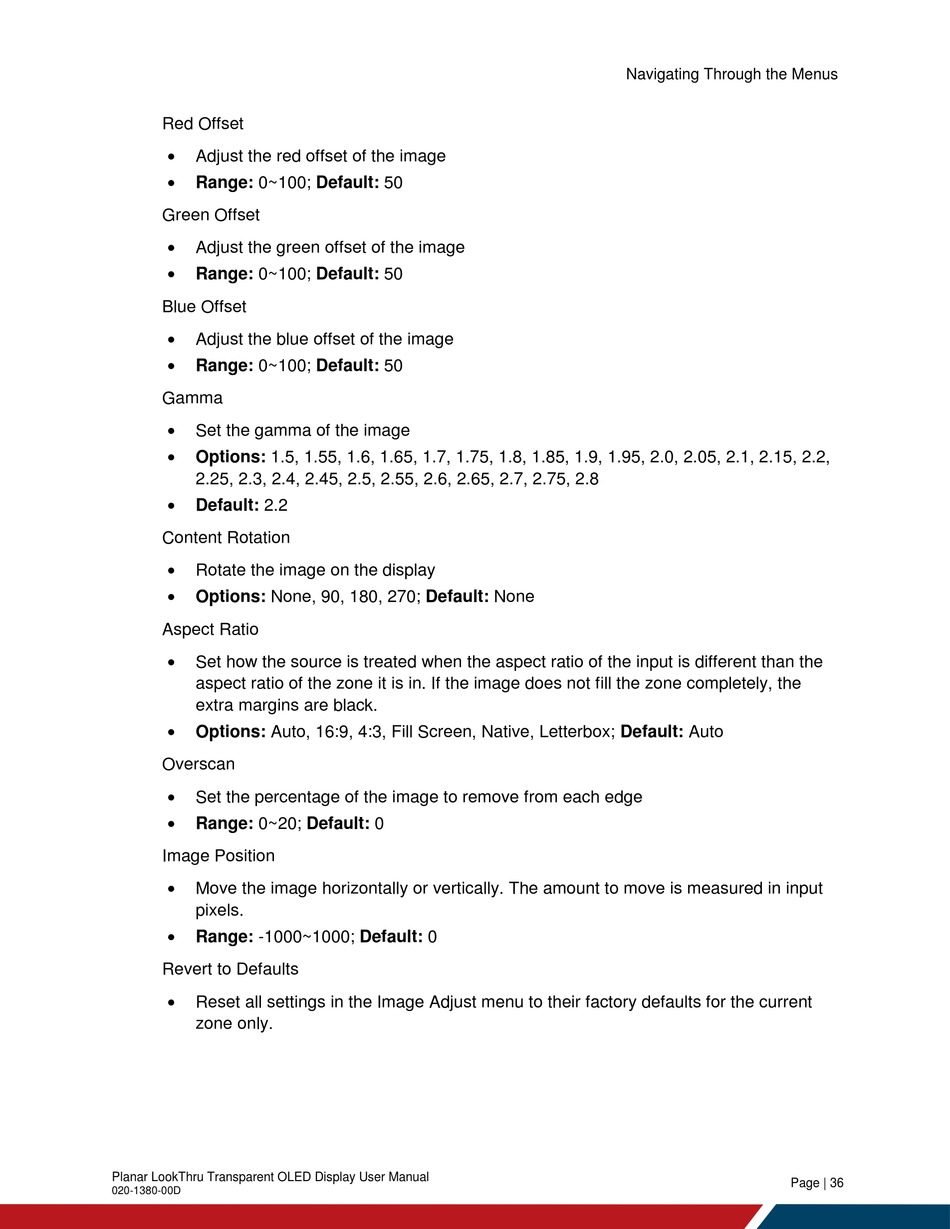

Planar LookThru LO552 User Manual page 36

Red Offset

Adjust the red offset of the image

Range: 0~100; Default: 50
Green Offset

Adjust the green offset of the image

Range: 0~100; Default: 50
Blue Offset

Adjust the blue offset of the image

Range: 0~100; Default: 50
Gamma

Set the gamma of the image

Options: 1.5, 1.55, 1.6, 1.65, 1.7, 1.75, 1.8, 1.85, 1.9, 1.95, 2.0, 2.05, 2.1, 2.15, 2.2,
2.25, 2.3, 2.4, 2.45, 2.5, 2.55, 2.6, 2.65, 2.7, 2.75, 2.8

Default: 2.2
Content Rotation

Rotate the image on the display

Options: None, 90, 180, 270; Default: None
Aspect Ratio

Set how the source is treated when the aspect ratio of the input is different than the
aspect ratio of the zone it is in. If the image does not fill the zone completely, the
extra margins are black.

Options: Auto, 16:9, 4:3, Fill Screen, Native, Letterbox; Default: Auto
Overscan

Set the percentage of the image to remove from each edge

Range: 0~20; Default: 0
Image Position

Move the image horizontally or vertically. The amount to move is measured in input
pixels.

Range: -1000~1000; Default: 0
Revert to Defaults

Reset all settings in the Image Adjust menu to their factory defaults for the current
zone only.
