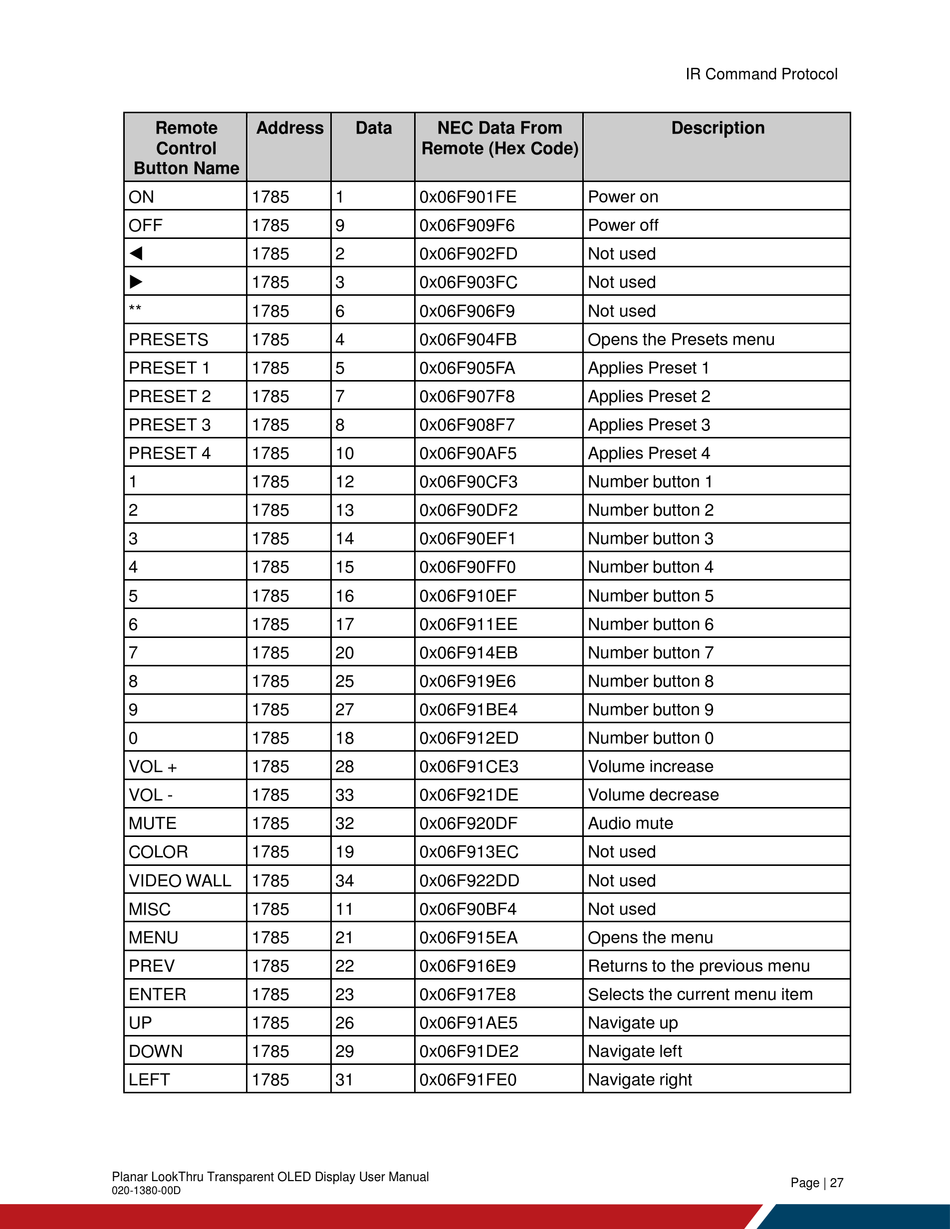

Planar LookThru LO552 User Manual page 27

Remote Address
Control
Button Name
ON 1785
OFF 1785

1785

1785
** 1785
PRESETS 1785
PRESET 1 1785
PRESET 2 1785
PRESET 3 1785
PRESET 4 1785
1 1785
2 1785
3 1785
4 1785
5 1785
6 1785
7 1785
8 1785
9 1785
0 1785
VOL + 1785
VOL - 1785
MUTE 1785
COLOR 1785
VIDEO WALL 1785
MISC 1785
MENU 1785
PREV 1785
ENTER 1785
UP 1785
DOWN 1785
LEFT 1785
Planar LookThru Transparent OLED Display User Manual
020-1380-00D
Data NEC Data From
Remote (Hex Code)
1 0x06F901FE
9 0x06F909F6
2 0x06F902FD
3 0x06F903FC
6 0x06F906F9
4 0x06F904FB
5 0x06F905FA
7 0x06F907F8
8 0x06F908F7
10 0x06F90AF5
12 0x06F90CF3
13 0x06F90DF2
14 0x06F90EF1
15 0x06F90FF0
16 0x06F910EF
17 0x06F911EE
20 0x06F914EB
25 0x06F919E6
27 0x06F91BE4
18 0x06F912ED
28 0x06F91CE3
33 0x06F921DE
32 0x06F920DF
19 0x06F913EC
34 0x06F922DD
11 0x06F90BF4
21 0x06F915EA
22 0x06F916E9
23 0x06F917E8
26 0x06F91AE5
29 0x06F91DE2
31 0x06F91FE0
IR Command Protocol
Description
Power on
Power off
Not used
Not used
Not used
Opens the Presets menu
Applies Preset 1
Applies Preset 2
Applies Preset 3
Applies Preset 4
Number button 1
Number button 2
Number button 3
Number button 4
Number button 5
Number button 6
Number button 7
Number button 8
Number button 9
Number button 0
Volume increase
Volume decrease
Audio mute
Not used
Not used
Not used
Opens the menu
Returns to the previous menu
Selects the current menu item
Navigate up
Navigate left
Navigate right
Page | 27
