NetVanta 3000 Series Hardware Installation Guide
NetVanta 3130 Shipping Contents
Each NetVanta 3130 unit is shipped in its own cardboard shipping carton. Open each carton carefully, and
avoid deep penetration into the carton with sharp objects.
After unpacking the unit, inspect it for possible shipping damage. If the equipment has been damaged in
transit, immediately file a claim with the carrier and contact ADTRAN Customer Service (refer to Repair
and Return on page 9).
Shipments of the NetVanta 3130 include the following items:
•
NetVanta 3130 Base Unit
•
ADTRAN OS System Documentation CD
•
Quick Start Guide
•
Warranty card
•
External 12 VDC power supply
•
One 7-foot CAT5E cable
•
One 7-foot phone cable
NetVanta 3130 Front Panel Design

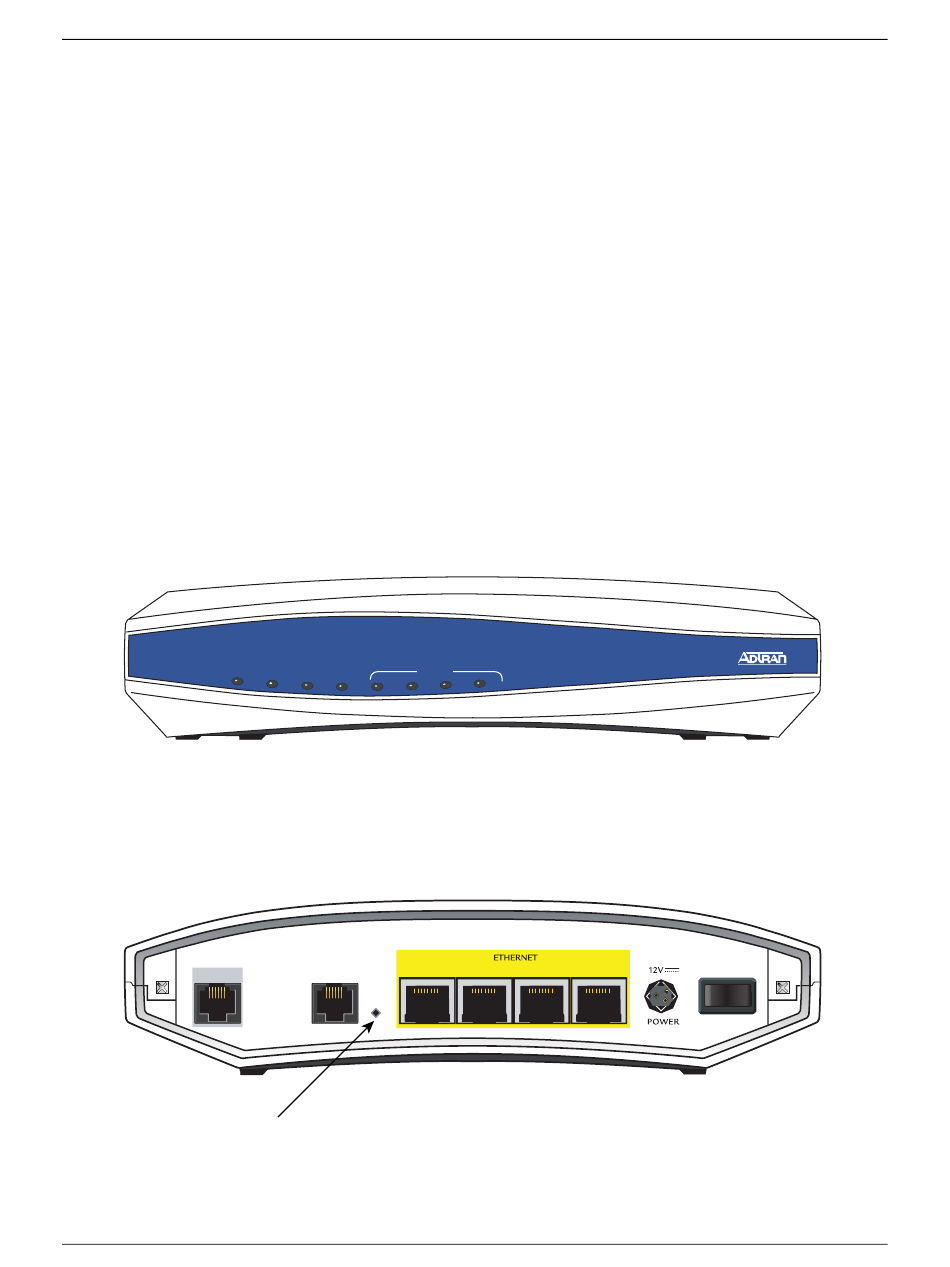

The NetVanta 3130 front panel is shown below. Front panel LED descriptions are given in Table 1 on page 42.
NetVanta 3130 Rear Panel Design
The NetVanta 3130 rear panel is shown below. Appendix A, on page 75, provides pinouts.
ADSL
Default
Switch
61200860L1-34L
SWITCH
STAT
WAN
2
VPN
1
DBU
Figure 3. NetVanta 3130 Front Panel Layout
1
DBU
Figure 4. NetVanta 3130 Rear Panel Layout
Copyright © 2006 ADTRAN, Inc.
4
3
2
3
4
OVERVIEW
NetVanta 3130
1
0
21
