NetVanta 3200 Front Panel Design

The NetVanta 3200 front panel is shown below. Front panel LED descriptions are given in Table 1 on page 42.

NetVanta 3200 Rear Panel Design

The NetVanta 3200 rear panel is shown below. Appendix A, on page 75, provides pinouts.
NetVanta 3200 Rear Panel Interfaces and LEDs
SLOT 1 NET/DBU Option Slot
The
SLOT 1 NET/DBU
option modules are described in the section Option Modules on page 43.
10/100BaseT Ethernet Interface and Activity LEDs
The Ethernet port (
ETH 0/1
data traffic is being sent or received on the Ethernet port. The green link LED is on when the router has
a good connection to the LAN. The Ethernet port provides the following:
• 10BaseT or 100BaseT with a single connector
• Auto-negotiation
• CSMA/CD
• IEEE 802.3 compatibility
61200860L1-34L

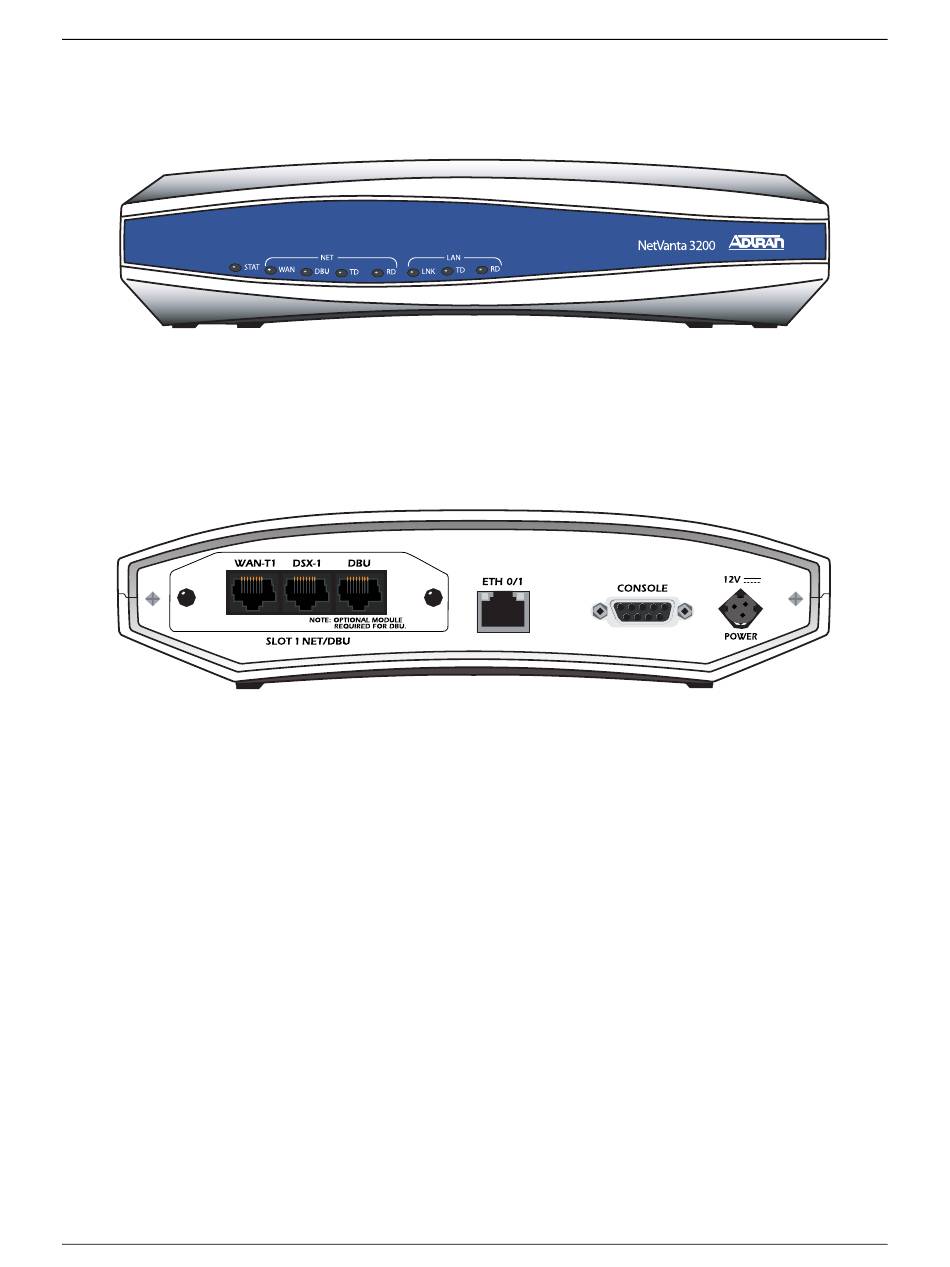

Figure 5. NetVanta 3200 Front Panel Layout

Figure 6. NetVanta 3200 Rear Panel Layout

option slot supports various plug-in Network Interface Modules (NIMs). These
) is an RJ-45 connector with LEDs. The amber activity LED flashes when
