G 1xxx/G 2xxx
2.5
Fully Integrated Models, No Salt Container (Slimline)

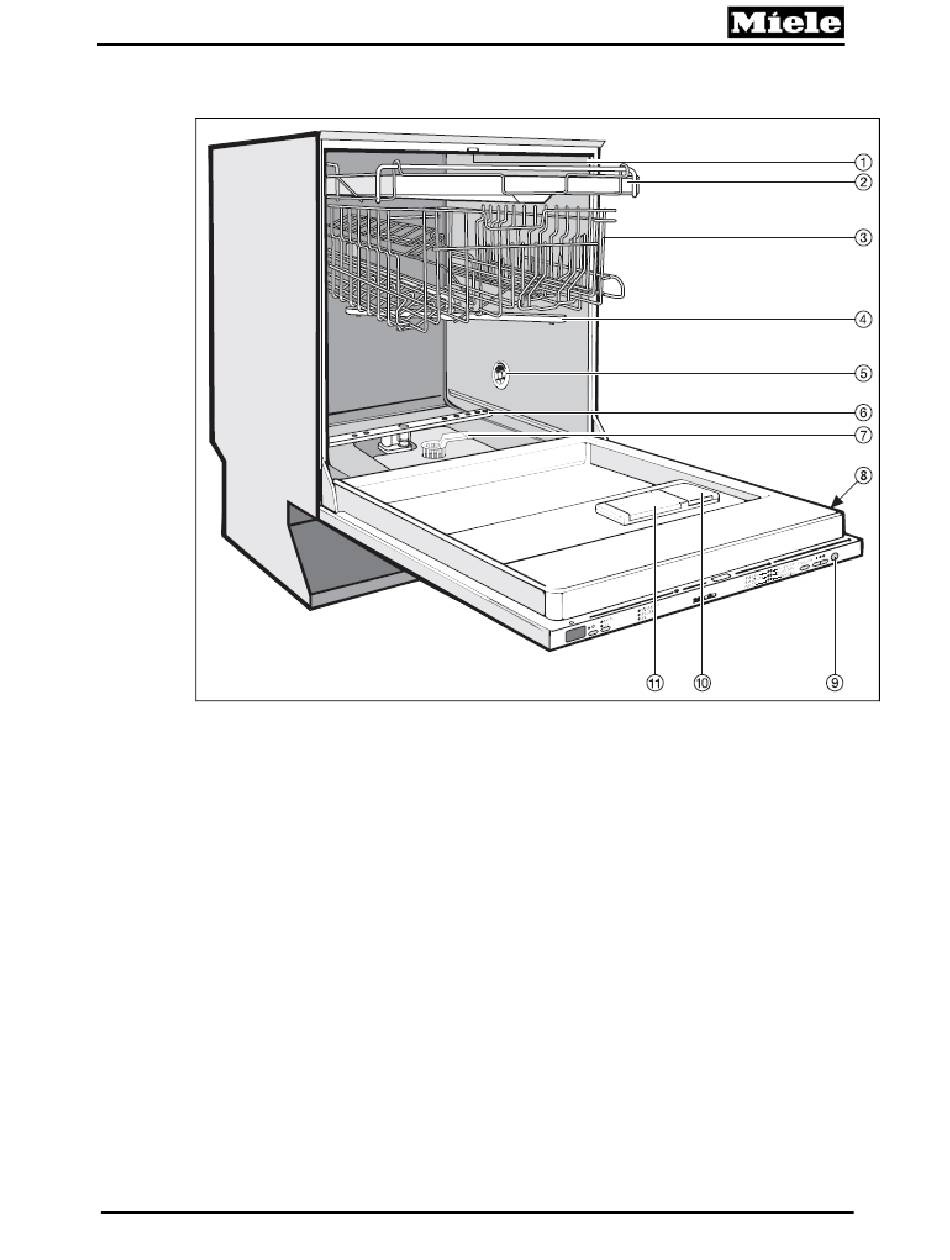

Figure D-19: Fully Integrated Model without Salt Container
1 Upper spray arm (not visible)
2 Cutlery tray
3 Upper basket
4 Middle spray arm
5 Air inlet for drying (model-dependent)
6 Lower spray arm
7 Filter combination
8 Data tag
9 Optical interface
10 Rinse aid reservoir
11 Dual-compartment detergent dispenser
