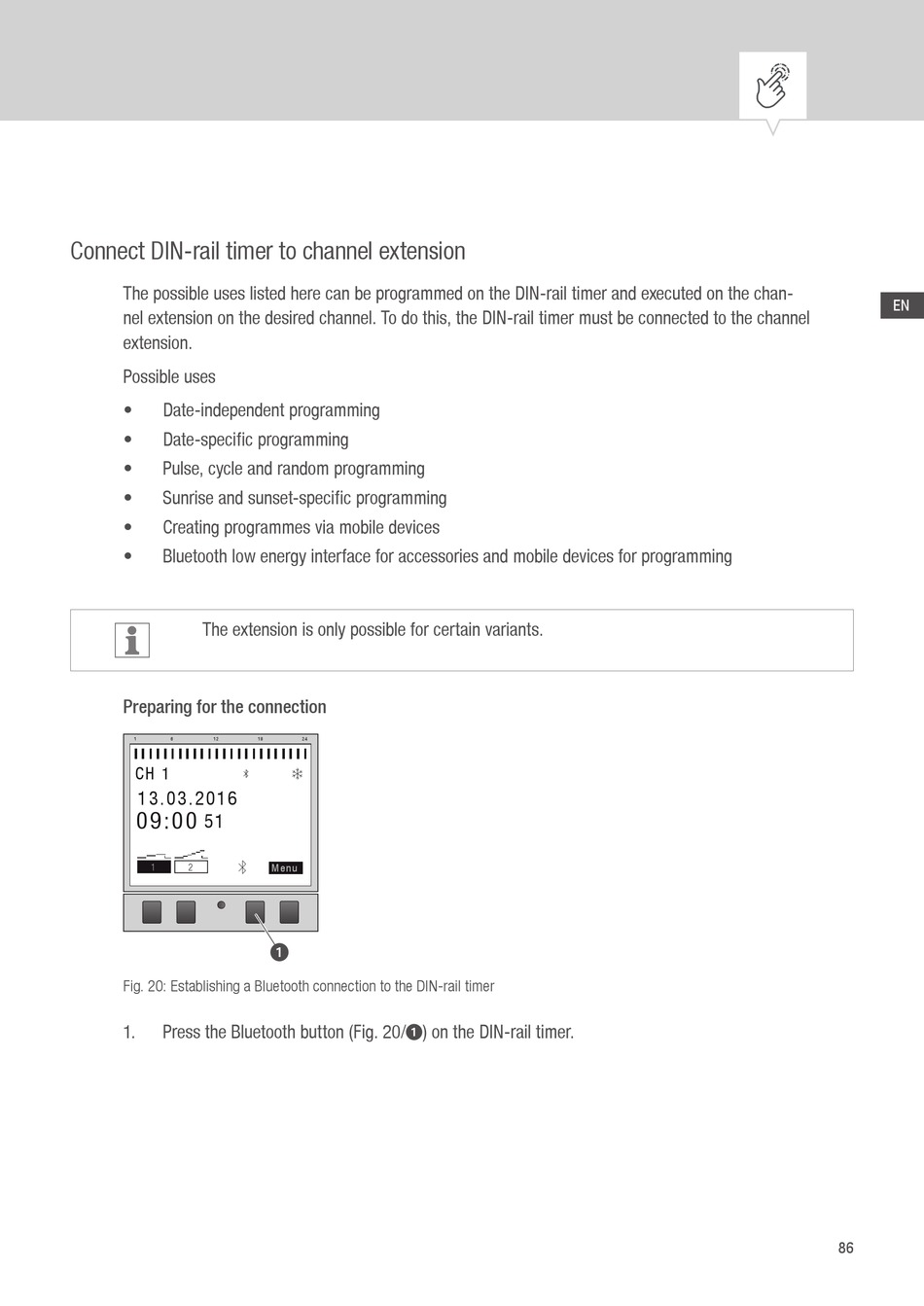

Connect DIN-rail timer to channel extension

The possible uses listed here can be programmed on the DIN-rail timer and executed on the chan-
nel extension on the desired channel. To do this, the DIN-rail timer must be connected to the channel
extension.
Possible uses
• Date-independent programming
• Date-specific programming
• Pulse, cycle and random programming
• Sunrise and sunset-specific programming
• Creating programmes via mobile devices
• Bluetooth low energy interface for accessories and mobile devices for programming
The extension is only possible for certain variants.
Preparing for the connection
1 6 12
C H 1
1 3 . 0 3 . 2 0 1 6
09 :0 0
5 1
1 2
Fig. 20: Establishing a Bluetooth connection to the DIN-rail timer
1. Press the Bluetooth button (Fig. 20/
18 24
Menu
1
) on the DIN-rail timer.
1
