PROGRAMMING CYCLE SWITCHING

Cycle switching is only possible for certain variants.
9:00 h

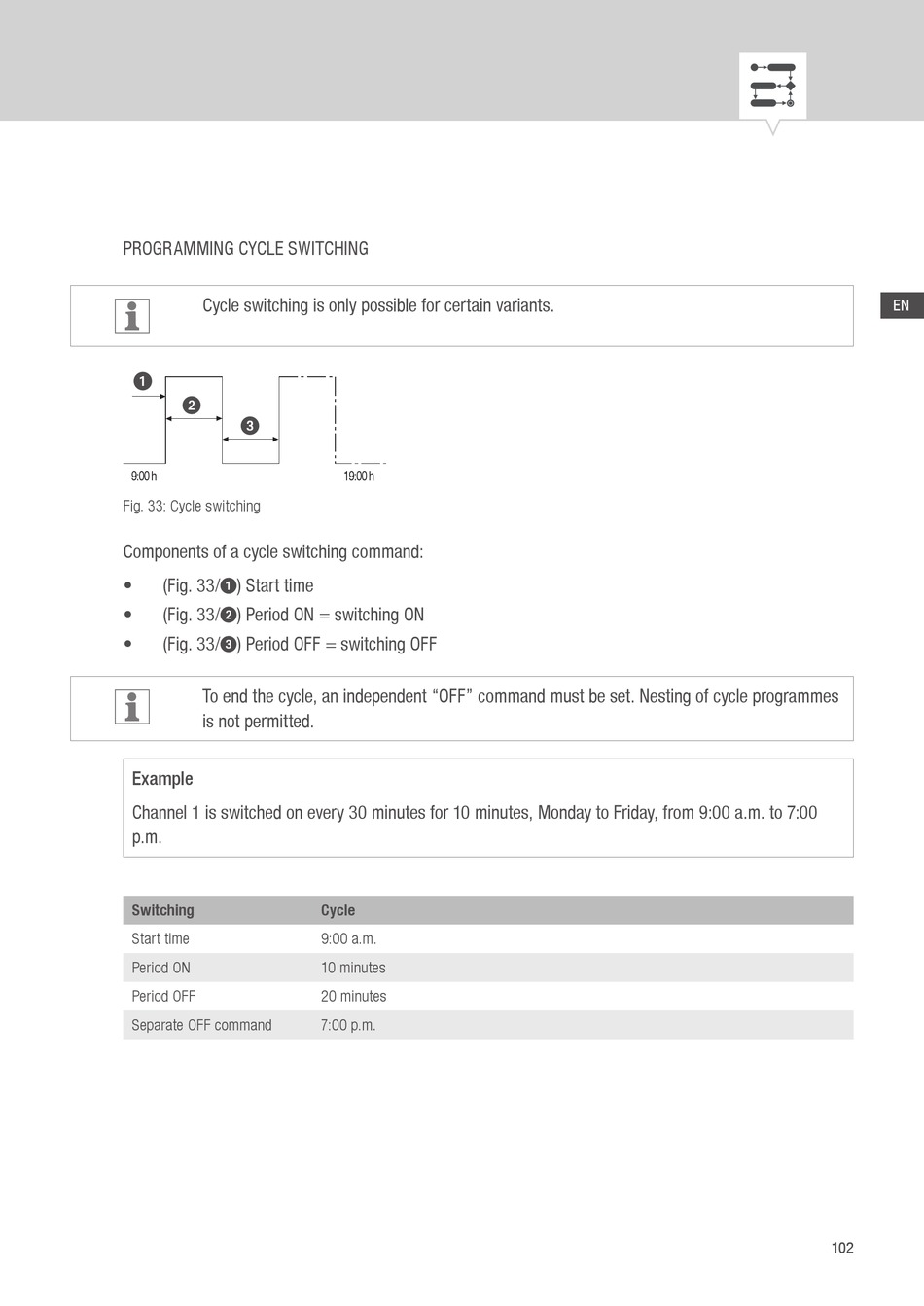

Fig. 33: Cycle switching
Components of a cycle switching command:
• (Fig. 33/ ) Start time
1
) Period ON = switching ON
• (Fig. 33/
2
• (Fig. 33/ ) Period OFF = switching OFF
3
To end the cycle, an independent "OFF" command must be set. Nesting of cycle programmes
is not permitted.
Example
Channel 1 is switched on every 30 minutes for 10 minutes, Monday to Friday, from 9:00 a.m. to 7:00
p.m.
Switching
Start time
Period ON
Period OFF
Separate OFF command
19:00 h
Cycle
9:00 a.m.
10 minutes
20 minutes
7:00 p.m.
