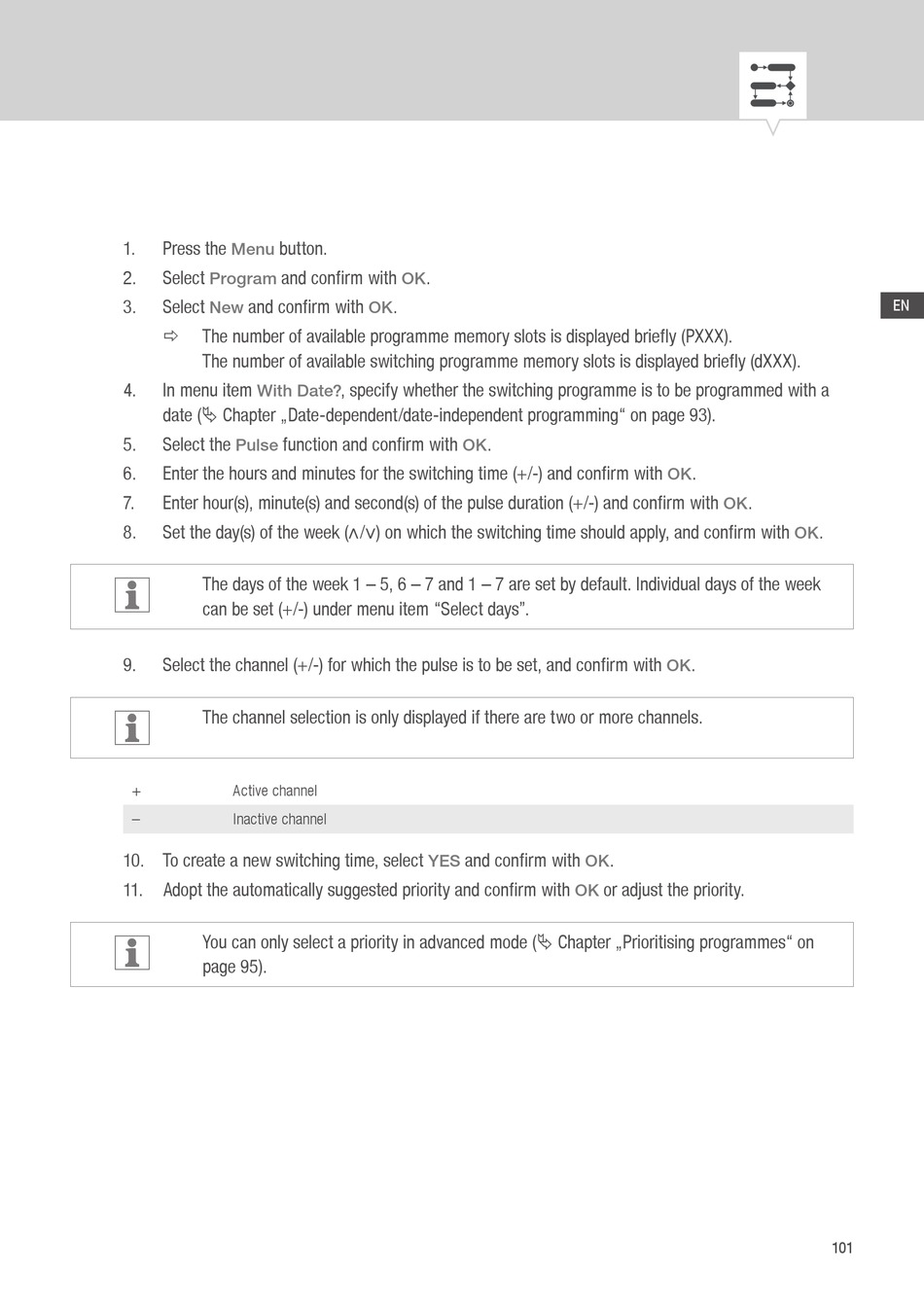

Intermatic Grasslin talento smart B15 Operating Instructions Manual page 101

1. Press the button.
Menu
2. Select and confirm with
Program
3. Select and confirm with
New
The number of available programme memory slots is displayed briefly (PXXX).
ð
The number of available switching programme memory slots is displayed briefly (dXXX).
4. In menu item
With Date?
date (Ä Chapter „Date-dependent/date-independent programming" on page 93).
5. Select the function and confirm with
Pulse
6. Enter the hours and minutes for the switching time (+/-) and confirm with
7. Enter hour(s), minute(s) and second(s) of the pulse duration (+/-) and confirm with
8. Set the day(s) of the week (⋀/⋁) on which the switching time should apply, and confirm with
The days of the week 1 – 5, 6 – 7 and 1 – 7 are set by default. Individual days of the week
can be set (+/-) under menu item "Select days".
9. Select the channel (+/-) for which the pulse is to be set, and confirm with
The channel selection is only displayed if there are two or more channels.
+ Active channel
– Inactive channel
10. To create a new switching time, select
11. Adopt the automatically suggested priority and confirm with
You can only select a priority in advanced mode (Ä Chapter „Prioritising programmes" on
page 95).
.
OK
.
OK
, specify whether the switching programme is to be programmed with a
.
OK
and confirm with
YES
.
OK
.
OK
.
OK
.
OK
or adjust the priority.
OK
EN
.
OK
101
