Comelit 3360 Technical Manual

Digital call module
Hide thumbs
Table of Contents

Advertisement

Quick Links

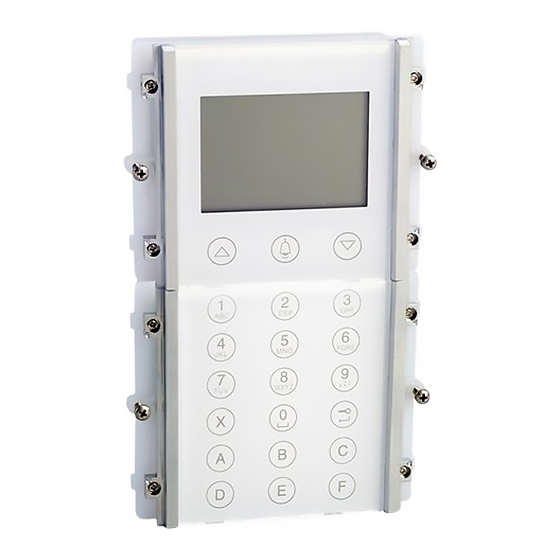

Technical manual for digital call module Art. 3360
www.comelitgroup.com
EN
TECHNICAL
MANUAL
1
2
3
ABC
DEF
GHI
4
5
6
JKL
MNO
PQRS
8
7
9
TUV
WXYZ
.;:
0
B
A
C
D
E
F

Advertisement

Table of Contents
loading

Related Manuals for Comelit 3360

Summary of Contents for Comelit 3360

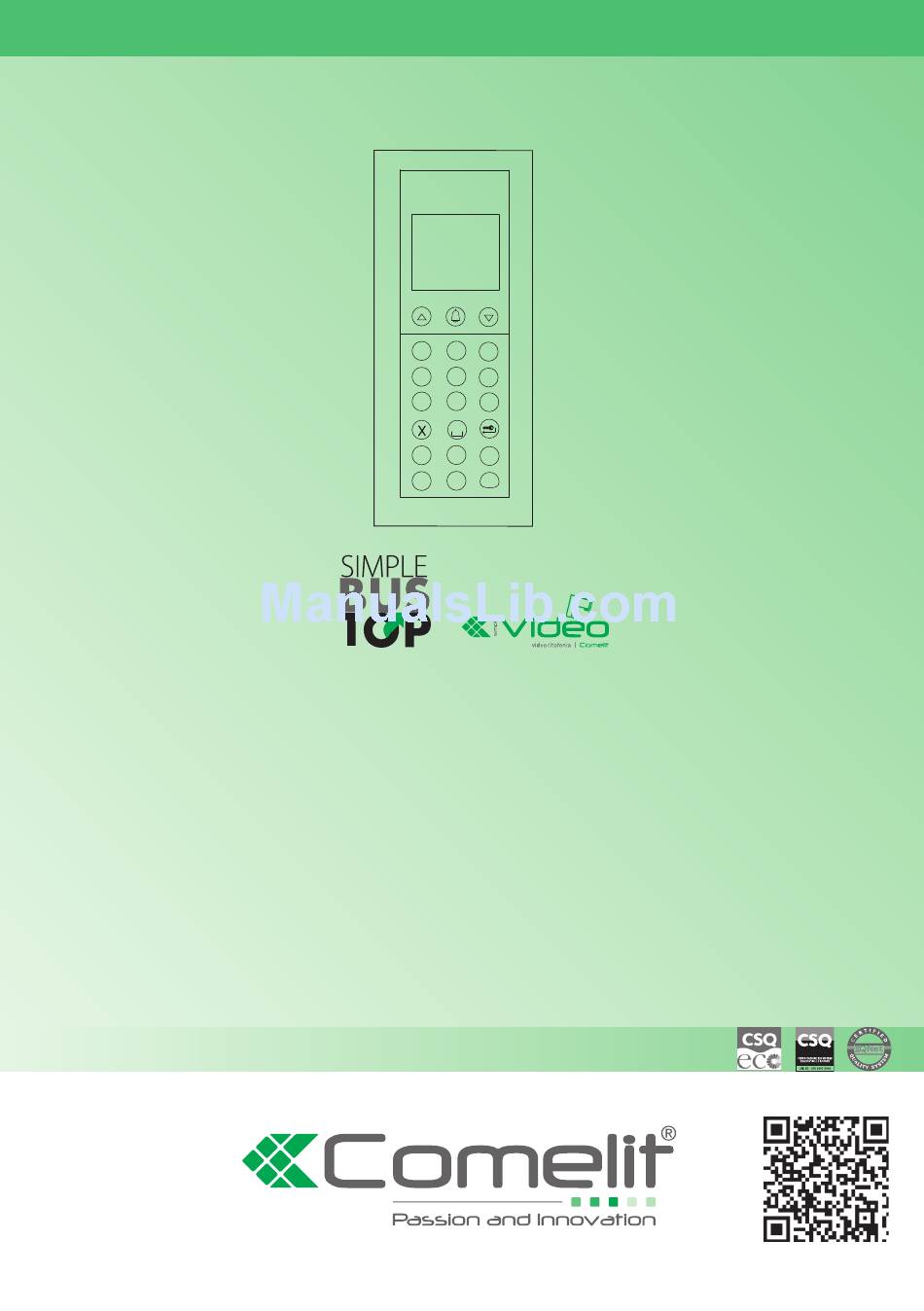

  • Page 1 TECHNICAL MANUAL PQRS WXYZ Technical manual for digital call module Art. 3360 www.comelitgroup.com...

  • Page 2: Table Of Contents

    6A. Enabling/disabling self-ignition 7. Default settings 7A. Restoring the default values of the porter module Software Art. 1249B 1. Installing the USB driver for connecting Art. 3360 to a PC 2. Using the directory via software Art. 1249B 3. Multidownload Menu diagram...

  • Page 3: General Description

    General description The Comelit digital call module Art. 3360 can be used in Simplebus and Simplebus Top systems, and is fi tted with a name directory to store a list of names and passwords as well as an alphanumerical keypad to call users by entering the code which identifi...

  • Page 4: Self-Testing

    Self-testing SELECT LANGUAGE ITALIANO On power-up the device carries out a diagnostic test of *ENGLISH the connections to check the correct communication and FRANCAIS confi guration of the porter module Art. 1622, Art. 4680, Art. 4680C. The message PLEASE WAIT indicates self-testing in progress.

  • Page 5: Finding A Name In The Directory

    2. Finding a name in the directory ENTER PASSWORD: } standby mode 1. press ***** 9 CANC ENTER PART OF THE NAME REQUIRED 2. press to confi rm NAME DIRECTORY ACCESS CONTROL SETTINGS 2. enter the name using the alphanumeric keypad, for the INFO use of special characters see table on page 3 SCROLL...

  • Page 6: Changing A Name Or A Code In The Directory

    MARIO ROSS_ 3. press to confi rm ENTER PART CANC OF THE NAME REQUIRED 5. to confi rm, press 6. enter the code (max. 3 digits) using the alphanumerical keypad 4. enter the name using the alphanumeric keypad, for the use of special characters see table on page 3 CODE: _ _ 2...

  • Page 7: Deleting A Name In The Directory

    8. change the name using the alphanumeric keypad, for 3. press to confi rm the use of special characters see table on page 3 9. press to confi rm 10. change the code (max. 3 digits) using the alphanumerical keypad ENTER PART OF THE NAME REQUIRED...

  • Page 8: Clearing The Directory

    4. Clearing the directory Access control 1. access programming mode, see page 5 1. Changing the default supercode (778899) 2. select the menu items: Name directory ⇒ Clear all names The supercode (778899 is the default code) is used to access the programming menus.

  • Page 9: Restoring The Default Supercode (778899)

    2. Restoring the default supercode (778899) 3. press to confi rm 4. enter the password (max. 6 characters consisting of numbers and/or letters from A to F) using the alphanumeric 1. access programming mode, see page 5 keypad 2. select the menu items: Access control ⇒...

  • Page 10: Finding A Password Code

    5. press to confi rm DELETE PASSWORD: 6. scroll through the passwords using _ 3ABC4 3ABC4 CANC 5. press to confi rm SCROLL 6. Erasing all passwords 1. access programming mode, see page 5 PASSWORD 2. select the menu items: DELETED Access control ⇒...

  • Page 11: Settings Of The Directory Module (Art. 3360)

    » * indicates language selected 5. to exit, press 6. to exit, press Settings of the directory module (Art. 3360) 2. Setting the type of remote connection 1. Modifying the language setting CAUTION: For downloading in RS485 mode, see diagram on page 35 1.

  • Page 12: Setting The Second Language

    5. press to confi rm TYPE OF DOWNLOAD *USB SELECT LANGUAGE RS485 ITALIANO *ENGLISH FRANCAIS SCROLL SCROLL » * indicates the type of download selected 6. to exit, press » * indicates language selected 3. Setting the second language 6. to exit, press This function, if activated, alternately switches the name 4.

  • Page 13: Setting Call Management

    Art. 1424 in Top 1, 2, 3 mode (see FT SB 21, page 6) which defi ne the system zones. INDIRECT CODE - Module Art. 3360 in Simplebus Top mode must be used SIMPLEBUS or SIMPLEBUS TOP in conjunction with compatible products (see table In this mode the user is identifi...
  • Page 14 Simplekey access key (badge) name only, Settings ⇒ Call management as it appears in the directory of digital module Art. 3360. The Immotec indirect codes and corresponding names can only be entered from a PC using software Art. 1249B. Since a...

  • Page 15: Enabling/Disabling Name-Only Display

    CALL MANAGEMENT NAME ONLY *STANDARD INDIRECT CODE IMMOTEC STANDARD SCROLL SCROLL 4. select YES to enable the function, NO to disable it 9. press to confi rm 5. press to confi rm » * indicates the selected call mode » * indicates active selection 10.

  • Page 16: Entering The Welcome Message

    8. Entering the welcome message 9. Enabling/disabling the static message This function is disabled by default. This function is disabled by default. It is possible to enter the welcome message using software If activated, the welcome message will appear and remain Art.

  • Page 17: Enabling/Disabling The Screensaver

    10. Enabling/disabling the screensaver 3. press to confi rm This function is disabled by default. 4. select desired keypad sensitivity using If activated, the screensaver will appear after a 30-second period of inactivity. KEYPAD SENS. 1. access programming mode, see page 5 2.

  • Page 18: Restoring The Default Values Of The Directory Module

    13. Restoring the default values of the directory 14. Changing the RS485 address of the porter module module This function is used to restore the default settings: 1. access programming mode, see page 5 Language = Italiano 2. select the menu items: Second language = disabled Settings ⇒...

  • Page 19: Viewing The Number Of Names Entered In The Directory, The Software Version, The Number Of Passwords Entered

    15. Viewing the number of names entered in Standard settings of the porter module (Art. the directory, the software version, the number 1622, Art. 4680, Art. 4680C) of passwords entered and the ID code (RS485 1. Setting the porter module parameters address) (audio time, door lock time, reset time) 1.

  • Page 20: Viewing The Porter Module Parameters (Audio Time, Door Lock Time, Reset Time)

    Advanced settings of the porter module (Art. 7. press to confi rm 1622, Art. 4680, Art. 4680C) » confi rmation tone 1. Lock on SE 1A. Setting the type of door lock on the SE output of the porter module PARAMETER CHANGED The default lock type is in AC.

  • Page 21: Enabling/Disabling The Door Lock Confi Rmation Tone On The Porter Module

    Enabling/disabling door lock 1C. Enabling/disabling the standby lock release confi rmation tone on the porter module on the porter module This function is disabled by default. This function is enabled by default. 1. access programming mode, see page 5 1. access programming mode, see page 5 2.

  • Page 22: Viewing The Parameters Of The Door Lock On The Se Output Of The Porter Module

    1D. Viewing the parameters of the door lock on 3. press to confi rm the SE output of the porter module ACTUATOR FUNCTION 1. access programming mode, see page 5 2. select the menu items: Settings ⇒ System parameters ⇒ Speaker parameters ⇒...

  • Page 23: Enabling/Disabling The Relay Contact In Parallel To The Porter Module Se Output

    2C. Viewing the relay contact parameters 1. access programming mode, see page 5 PARAMETER 2. select the menu items: CHANGED Settings ⇒ System parameters ⇒ Speaker parameters ⇒ Advanced options ⇒ Relay contact ⇒View ACTUATOR FUNCTION 2B. Enabling/disabling the relay contact in IN PARALLEL TO SE parallel to the porter module SE output VIEW...

  • Page 24: S Serial

    3. S serial 4. Voice messages 3A. Enabling/disabling the actuator function on 4A. Enabling/disabling voice and visual the S serial line messages on the porter module 1. access programming mode, see page 5 1. access programming mode, see page 5 2.

  • Page 25: Call

    It is possible to enable or disable the triple call made by Art. ⇒ Advanced options ⇒ Call ⇒ Confi rmation tone 3360 to the internal units. The call will therefore take place on consecutive occasions (in the case of video calls: the fi rst will be audio calls and the third will be a video call) 1.

  • Page 26: Enabling/Disabling The Call Codes Booster

    5C. Enabling/disabling the call codes booster 5D. Setting the call answer wait time This function is disabled by default. 1. access programming mode, see page 5 Allows control of over 70 internal units connected to porter 2. select the menu items: module Art.

  • Page 27: Viewing The Porter Module Call Parameters

    5E. Viewing the porter module call parameters SELF IGNITION *YES 1. access programming mode, see page 5 2. select the menu items: Settings ⇒ System parameters ⇒ Speaker parameters ⇒ Advanced options ⇒ Call ⇒ View SCROLL CONFIRMATION TONE 4. select YES to enable the function, NO to disable it CODES BOOSTER 5.

  • Page 28: Software Art. 1249B

    SELF IGNITION *USB DEFAULT SETTINGS RS485 SCROLL SCROLL 4. the messages "Found new hardware Art. 3360" and 3. press to confi rm "New hardware installation wizard" appear on the PC 5. follow the instructions of the installation wizard through to completion DEFAULT SETTINGS CAUTION: select the Drivers folder located in the Art.

  • Page 29: Multidownload

    3. Multidownload It is possible to use a RS485 network to connect multiple Art. 3360 to the same PC with software Art. 1249B installed. Each module must have a different ID CODE (RS485 address), see page 18. 1. connect cables of RS485 serial line to terminals 485D+/485D- on Art.

  • Page 30: Menu Diagram

    Menu diagram NAME ENTER NAMES DIRECTORY DELETE NAMES CHANGE NAMES CLEAR ALL DELETE ALL NAMES? NAMES ACCESS ENTER NEW SUPERCODE CONTROL CODE DEFAULT SETTINGS PASSWORD ENTER DELETE SEARCH DELETE ALL CLEAR PASSWORDS? TYPE OF SETTINGS DOWNLOAD RS485 SYSTEM SPEAKER ENTER AUDIO PARAMETERS PARAMETERS TIME...
  • Page 31 SYSTEM ADVANCED LOCK SETTINGS PARAMETERS OPTIONS ON SE CONFIRMATION TONE STANDBY LOCK REL. VIEW RELAY ACTUATOR ACTIVATION CONTACT FUNCTION TIME IN PARALLEL TO SE VIEW ACTUATOR S SERIAL FUNCTION VOICE MESSAGES ITALIANO FRANCAIS ESPANOL NEDERLANDS GREEK ENGLISH CALL TRIPLE CALL...
  • Page 32 SPEAKER ADVANCED SETTINGS CALL SETTINGS PARAMETERS OPTIONS CONFIRMATION TONE CODES BOOSTER ANSWER WAIT TIME VIEW SELF IGNITION DEFAULT SETTINGS RS485 ADDRESS SELECT ITALIANO LANGUAGE ENGLISH FRANCAIS DEUTSCH PORTUGUES DEFAULT SECOND ITALIANO LANGUAGE ENGLISH FRANCAIS...
  • Page 33 SECOND SETTINGS LANGUAGE DEUTSCH PORTUGUES DEFAULT CALL SIMPLEBUS STANDARD MANAGEMENT INDIRECT CODE IMMOTEC STAND. IMMOTEC INDIRECT SIMPLEBUS STANDARD INDIRECT CODE IMMOTEC STAND. IMMOTEC INDIRECT NAME ONLY WELCOME CHANGE MESSAGE ENABLE STATIC MESSAGE SCREEN SAVER...

  • Page 34: Table Of Simplebus Top Products

    SETTINGS KEYPAD SENS. MEDIUM HIGH KEYPAD TONE DEFAULT SETTINGS INFO FW REVISION NAMES STORED PASSWORDS ENTERED RS485 ADDRESS Table of Simplebus Top products Brackets Art. 5714C IR. 007 Art. 5814C IR. 002 Art. 6114C IR. 015 Door-entry phones Art. 2608 IR. 006 Art.

  • Page 35: Diagram

    Computer CAUTION: - It is possible to use up to 5 terminals Art. 3360 - Maximum distance between Art. 1319 and furthest terminal Art. 3360: 100 m 1319 4380 Braided, shielded telephone cable 3360 120E 1/4W 1195 3360 1195 3360 Art.
