Installing the power button

Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

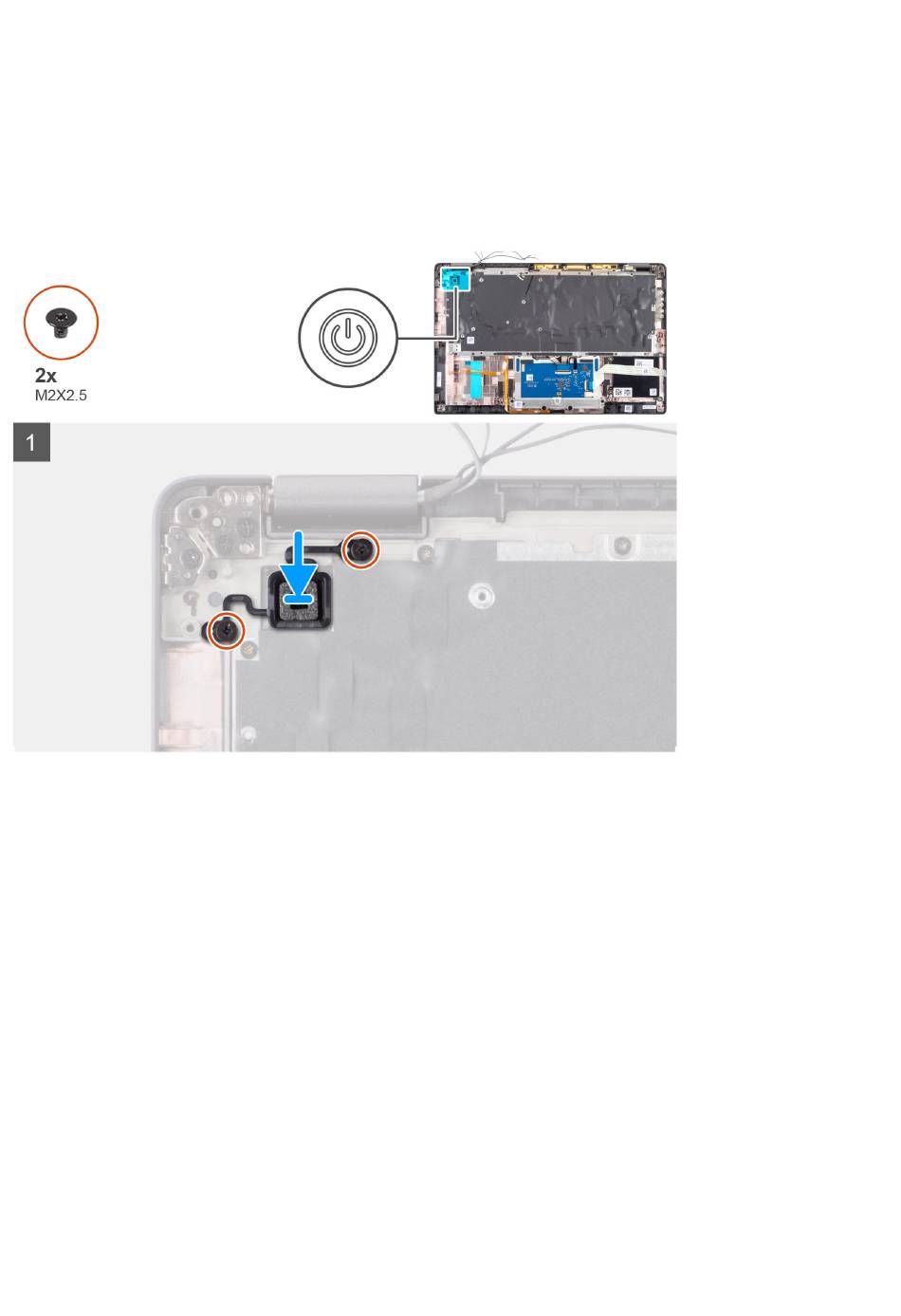

The following images indicate the location of the power button and provide a visual representation of the installation procedure.
Steps
1. Replace the power button into its slot in the palmrest assembly.
2. Replace the two (M2x2.5) screws securing power button to the palmrest assembly.
Next steps
1. Install the:
a. System board
b. Heatsink
c. WLAN antenna
d. WWAN card
e. SSD
f. Battery
g. Base cover
2. Follow the procedure in
46 Disassembly and reassembly
After working inside your computer.
