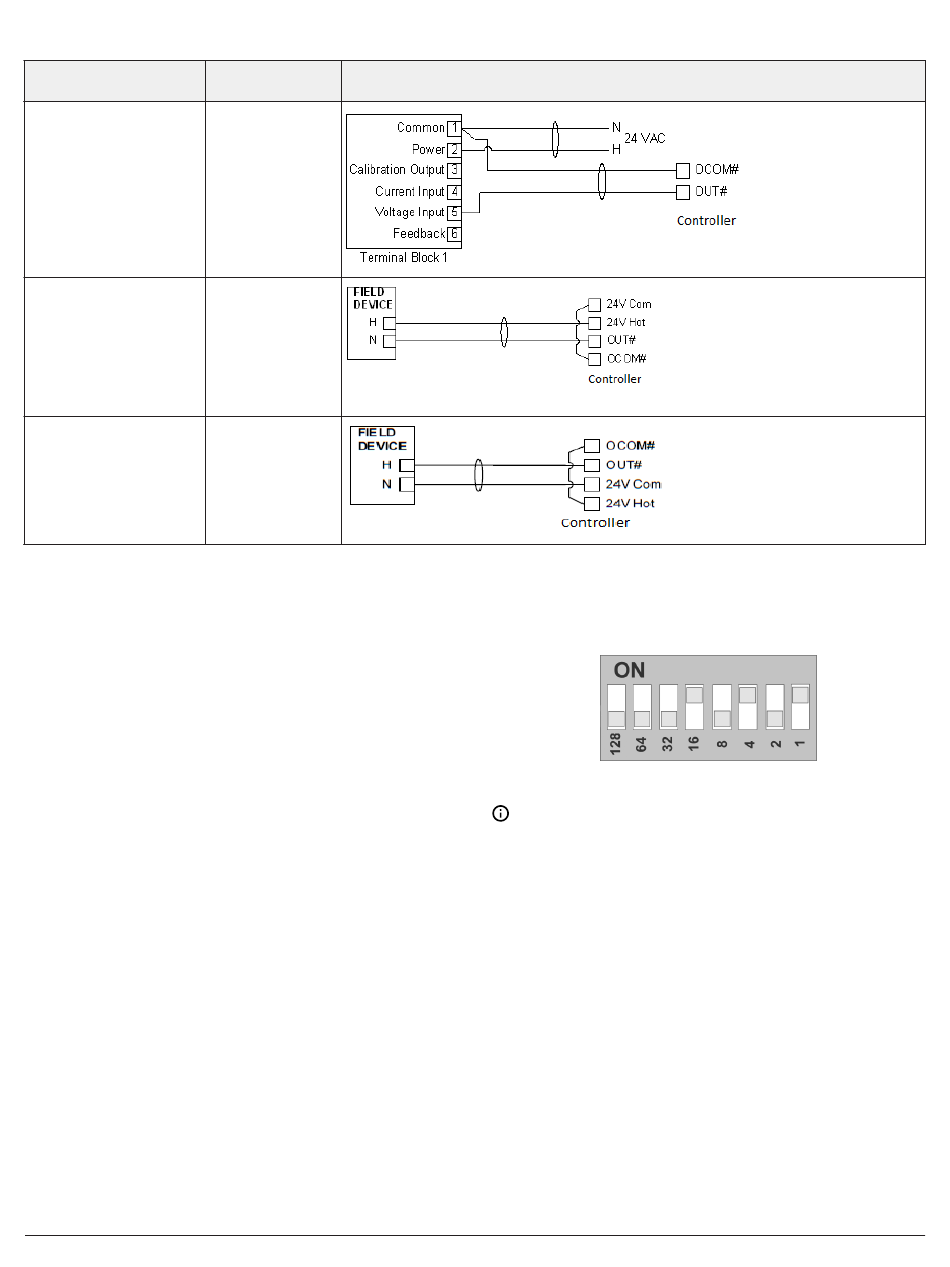

Table 5: Termination details
Type of field device
0-10 VDC Output to
Actuator (External Source)
24 VAC Binary Output
(Switch Low, Externally
Sourced)
24 VAC Binary Output
(Switch High, Externally
Sourced)
Setup and Adjustments
Setting the device addresses
Metasys
field controllers are master devices on MS/
®
TP (SA or FC) buses. Before operating controllers
on a bus, you must set a valid and unique device
address for each controller on the bus. You set a
controller's device address by setting the positions
of the switches on the DIP switch block at the top
of the controller (Figure 10). Device addresses
4 through 127 are the valid addresses for these
controllers.
The DIP switch block has eight switches numbered
128, 64, 32, 16, 8, 4, 2, and 1. Switches 64 through 1
are device address switches. Switch 128 is a mode
switch that enables a controller to operate on a
ZFR/ZFR Pro Series Wireless Field Bus. Switch 128
must be set to Off for all hard-wired SA and FC bus
applications. Set switch 128 to ON for wireless FC
bus applications only.
16
IOM1711 and IOM2711 Input/Output Module Installation Guide
Type of Input/
Termination diagrams
Output
UO
RO
RO
Figure 10: Device address DIP switch block set to
Address 21
Note: Metasys field controllers ship with switch
128 ON and the remaining address switches
off rendering the controllers wired subordinate
devices, which do not operate on MS/TP buses,
but will not interfere with bus operation.
Set a valid and unique device address on
the controller before applying power to the
controller on the bus.
To set the device addresses on Metasys field
controllers:
1.
Set all of the switches on the address DIP
switch block (128 through 1) to Off.
