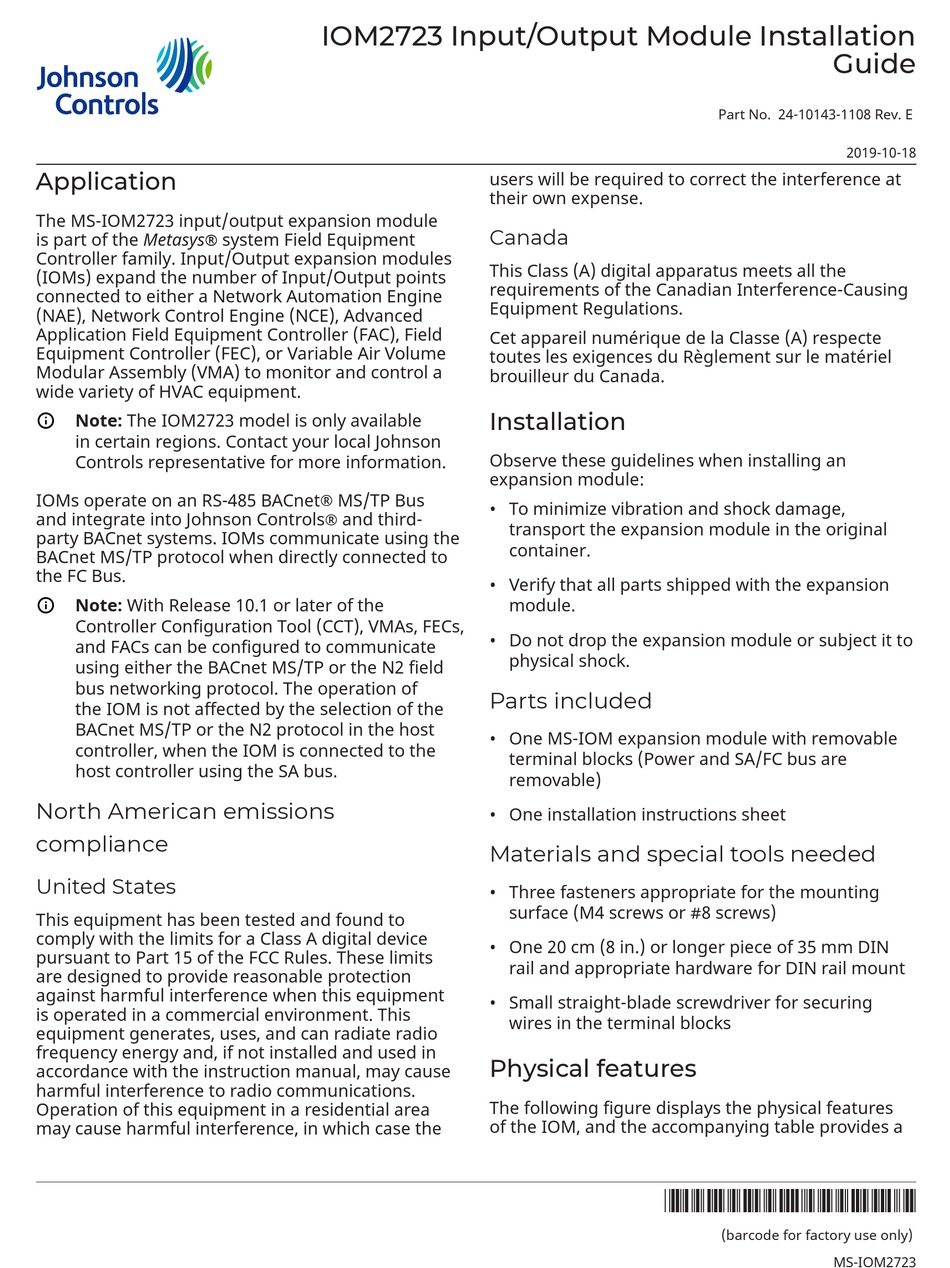

Johnson Controls IOM2723 Installation Manual

Application
The MS-IOM2723 input/output expansion module
is part of the Metasys
®
Controller family. Input/Output expansion modules
(IOMs) expand the number of Input/Output points
connected to either a Network Automation Engine
(NAE), Network Control Engine (NCE), Advanced
Application Field Equipment Controller (FAC), Field
Equipment Controller (FEC), or Variable Air Volume
Modular Assembly (VMA) to monitor and control a
wide variety of HVAC equipment.
Note: The IOM2723 model is only available
in certain regions. Contact your local Johnson
Controls representative for more information.
IOMs operate on an RS-485 BACnet
and integrate into Johnson Controls
party BACnet systems. IOMs communicate using the
BACnet MS/TP protocol when directly connected to
the FC Bus.
Note: With Release 10.1 or later of the
Controller Configuration Tool (CCT), VMAs, FECs,
and FACs can be configured to communicate
using either the BACnet MS/TP or the N2 field
bus networking protocol. The operation of
the IOM is not affected by the selection of the
BACnet MS/TP or the N2 protocol in the host
controller, when the IOM is connected to the
host controller using the SA bus.
North American emissions
compliance
United States
This equipment has been tested and found to
comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when this equipment
is operated in a commercial environment. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference, in which case the
IOM2723 Input/Output Module Installation
system Field Equipment
MS/TP Bus
®
and third-
®
users will be required to correct the interference at
their own expense.
Canada
This Class (A) digital apparatus meets all the
requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la Classe (A) respecte
toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Installation
Observe these guidelines when installing an
expansion module:
• To minimize vibration and shock damage,
transport the expansion module in the original
container.
• Verify that all parts shipped with the expansion
module.
• Do not drop the expansion module or subject it to
physical shock.
Parts included
• One MS-IOM expansion module with removable
terminal blocks (Power and SA/FC bus are
removable)
• One installation instructions sheet
Materials and special tools needed
• Three fasteners appropriate for the mounting
surface (M4 screws or #8 screws)
• One 20 cm (8 in.) or longer piece of 35 mm DIN
rail and appropriate hardware for DIN rail mount
• Small straight-blade screwdriver for securing
wires in the terminal blocks
Physical features
The following figure displays the physical features
of the IOM, and the accompanying table provides a
*24101431108E*
Guide
Part No. 24-10143-1108 Rev. E
2019-10-18
(barcode for factory use only)
MS-IOM2723
