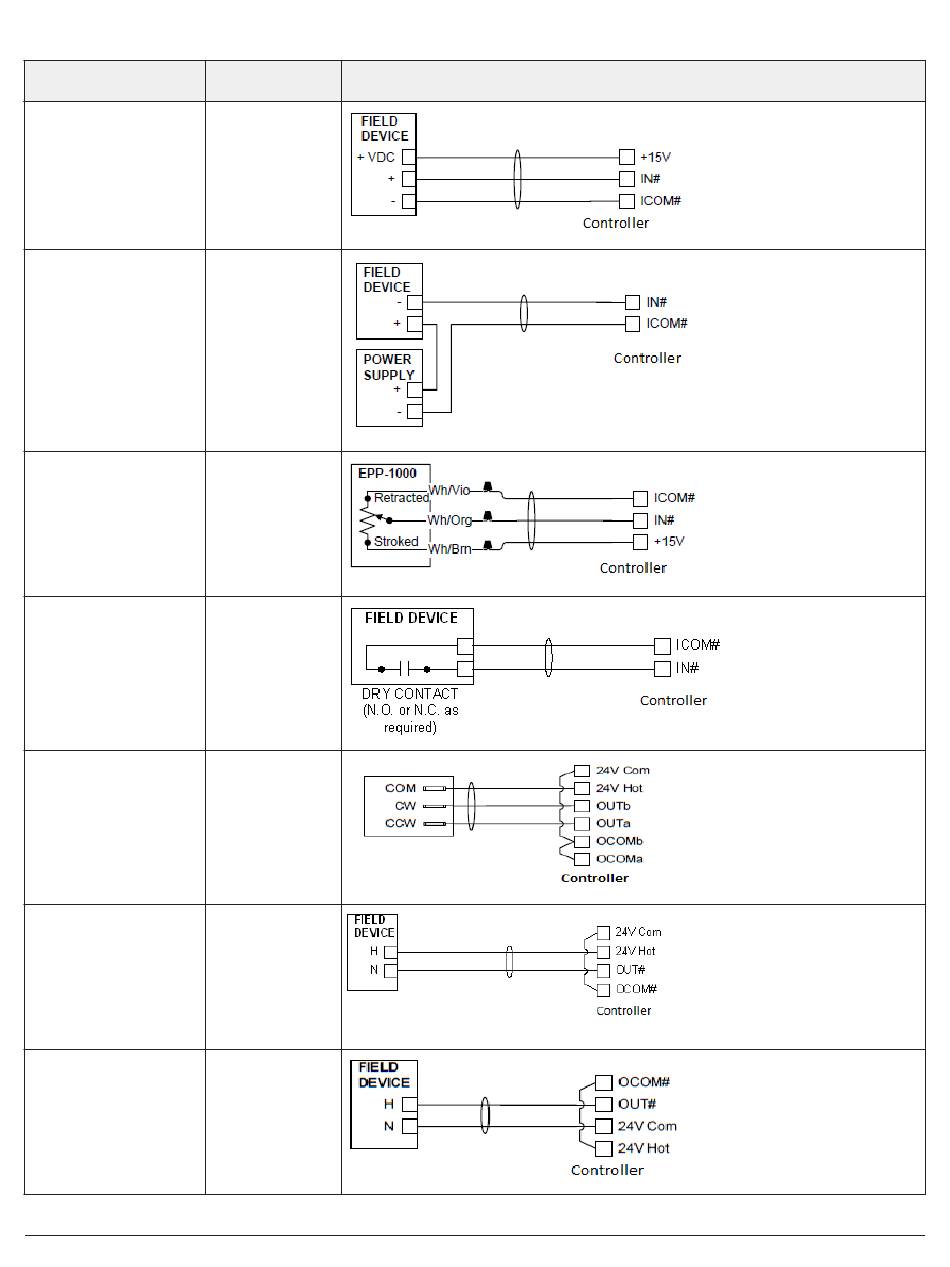

Table 5: Termination details
Type of field device
Current Input -Internal
Source (3-wire)
Current Input - External
Source (in Loop)
Feedback from EPP-1000
Dry Contact
Incremental Control to
Actuator (Switch Low,
External Source)
24 VAC Binary Output
(Switch Low, Externally
Sourced)
24 VAC Binary Output
(Switch High, Externally
Sourced)
14
IOM1711 and IOM2711 Input/Output Module Installation Guide
Type of Input/
Termination diagrams
Output
UI
UI
UI
UI or BI
UO
UO
UO
