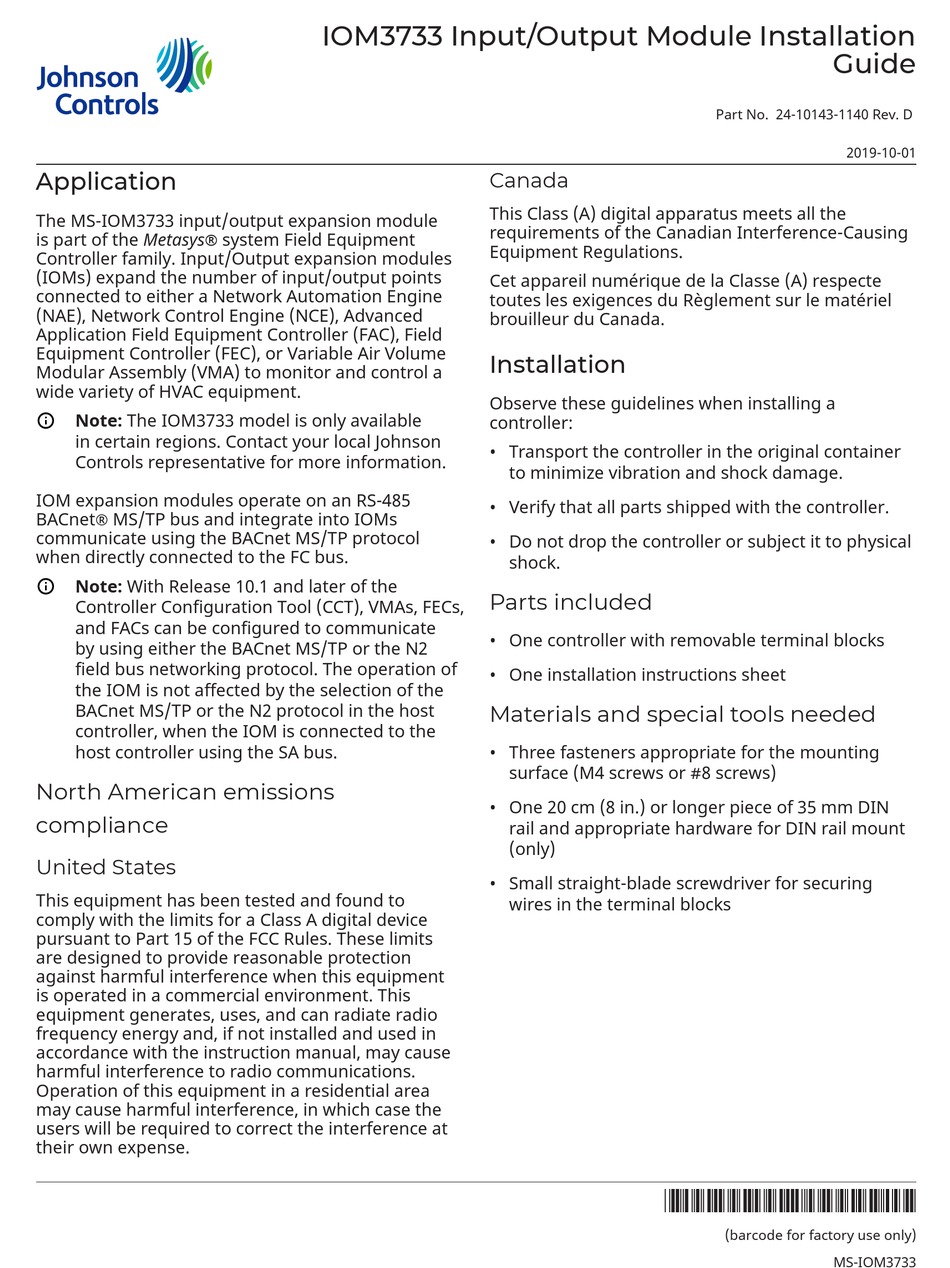

Application
The MS-IOM3733 input/output expansion module
is part of the Metasys
®
Controller family. Input/Output expansion modules
(IOMs) expand the number of input/output points
connected to either a Network Automation Engine
(NAE), Network Control Engine (NCE), Advanced
Application Field Equipment Controller (FAC), Field
Equipment Controller (FEC), or Variable Air Volume
Modular Assembly (VMA) to monitor and control a
wide variety of HVAC equipment.
Note: The IOM3733 model is only available
in certain regions. Contact your local Johnson
Controls representative for more information.
IOM expansion modules operate on an RS-485
BACnet
MS/TP bus and integrate into IOMs
®
communicate using the BACnet MS/TP protocol
when directly connected to the FC bus.
Note: With Release 10.1 and later of the
Controller Configuration Tool (CCT), VMAs, FECs,
and FACs can be configured to communicate
by using either the BACnet MS/TP or the N2
field bus networking protocol. The operation of
the IOM is not affected by the selection of the
BACnet MS/TP or the N2 protocol in the host
controller, when the IOM is connected to the
host controller using the SA bus.
North American emissions
compliance
United States
This equipment has been tested and found to
comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when this equipment
is operated in a commercial environment. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference, in which case the
users will be required to correct the interference at
their own expense.
IOM3733 Input/Output Module Installation
system Field Equipment
Canada
This Class (A) digital apparatus meets all the
requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la Classe (A) respecte
toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Installation
Observe these guidelines when installing a
controller:
• Transport the controller in the original container
to minimize vibration and shock damage.
• Verify that all parts shipped with the controller.
• Do not drop the controller or subject it to physical
shock.
Parts included
• One controller with removable terminal blocks
• One installation instructions sheet
Materials and special tools needed
• Three fasteners appropriate for the mounting
surface (M4 screws or #8 screws)
• One 20 cm (8 in.) or longer piece of 35 mm DIN
rail and appropriate hardware for DIN rail mount
(only)
• Small straight-blade screwdriver for securing
wires in the terminal blocks
*24101431140D*
Guide
Part No. 24-10143-1140 Rev. D
2019-10-01
(barcode for factory use only)
MS-IOM3733

Advertisement

Table of Contents
loading

Summary of Contents for Johnson Controls IOM3733

  • Page 1 Modular Assembly (VMA) to monitor and control a wide variety of HVAC equipment. Observe these guidelines when installing a Note: The IOM3733 model is only available controller: in certain regions. Contact your local Johnson • Transport the controller in the original container Controls representative for more information.
  • Page 2: Physical Features

    The following figure displays the physical features of the IOM, and the accompanying table provides a Figure 1: IOM3733 physical features Table 1: IOM3733 feature callouts and • Mount the controller in the proper mounting position. descriptions Callo •...
  • Page 3: Din Rail Mount Applications

    Hold the controller in place, and insert the screws through the mounting clips and into the holes (or anchors). Carefully tighten all of the screws. Important: Do not overtighten the mounting screws. Overtightening the screws may damage the mounting clips. IOM3733 Input/Output Module Installation Guide...
  • Page 4 Important: Do not exceed the controller electrical ratings. Exceeding controller electrical ratings can result in permanent damage to the controller and void any warranty. Important: Use copper conductors only. Make all wiring in accordance with local, national, and regional regulations. IOM3733 Input/Output Module Installation Guide...
  • Page 5 In addition to the wiring guidelines in the following table, observe these guidelines when wiring controller inputs and outputs: • Run all low-voltage wiring and cables separate from high-voltage wiring. IOM3733 Input/Output Module Installation Guide...
  • Page 6 • Inputs or outputs with cables less than 30 m (100 ft) typically do not require an offset in the software setup. Cable runs over 30 m (100 ft) may require an offset in the input/output software setup. IOM3733 Input/Output Module Installation Guide...
  • Page 7 I/O terminal blocks, ratings, and requirements table Table 2: IOM3733 terminal blocks, functions, ratings, requirements, and cables Terminal Determine wire size and Terminal block label Function, ratings, requirements label maximum cable length Binary Input - Dry Contact Maintained Mode 0.01 second minimum pulse width...
  • Page 8 Note: The SA Bus and FC Bus wiring recommendations in this table are for MS/ TP bus at 38,400 baud. For more information, refer to the MS/TP Communications Bus Technical Bulletin (LIT-12011034). IOM3733 Input/Output Module Installation Guide...
  • Page 9: Termination Details

    Termination details controllers. See the figures in this section for the applicable termination diagrams. A set of Johnson Controls termination diagrams provides details for wiring inputs and outputs to the Table 5: Termination details Type of device Type of Input/Output...
  • Page 10: Setup And Adjustments

    Set all of the switches on the address DIP The following table describes the FC bus and SA switch block (128 through 1) to OFF. bus device addresses for Johnson Controls MS/TP communications bus applications. Set one or more of the seven address switches...
  • Page 11: Troubleshooting

    Determine the physical location of the field indicator information for troubleshooting the controller on the FC bus. expansion module. Determine if the controller must be set as a LED status and states terminating device on the bus. IOM3733 Input/Output Module Installation Guide...
  • Page 12: Repair Information

    AS-CBLTSTAT Cable adapter for connection to 8-pin TE-6700 Series sensors AS-XFR050-0 Power Transformer (Class 2, 24 VAC, 50 VA Maximum Output), no enclosure AP-TBK4SA-0 Replacement SA Bus Terminal Blocks, 4-Position, Brown, Bulk Pack of 10 IOM3733 Input/Output Module Installation Guide...
  • Page 13 Table 8: Accessories Ordering Information Product Code Number Description AP-TBK4FC-0 Replacement FC Bus Terminal Blocks, 4-Position, Blue, Bulk Pack of 10 AP-TBK3PW-0 Replacement Power Terminal Blocks, 3-Position, Gray, Bulk Pack of 10 IOM3733 Input/Output Module Installation Guide...
  • Page 14: Technical Specifications

    Canada: UL Listed, File E107041, CCN PAZX7 CAN/CSA C22.2 No. 205, Signal Equipment Industry Canada Compliant, ICES-003 Europe: Johnson Controls declares that this product is in compliance with the essential requirements and other relevant provisions of the EMC Directive. Australia and New Zealand: RCM Mark, Australia/NZ Emissions Compliant...
  • Page 15 JOHNSON CONTROLS C/O CONTROLS PRODUCT WESTENDHOF 3 507 E MICHIGAN ST MANAGEMENT 45143 ESSEN MILWAUKEE WI 53202 NO. 32 CHANGJIJANG RD NEW GERMANY DISTRICT WUXI JIANGSU PROVINCE 214028 CHINA For more contact information, refer to www.johnsoncontrols.com/locations. IOM3733 Input/Output Module Installation Guide...
  • Page 16 © 2019 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are subject to change without notice. www.johnsoncontrols.com...
