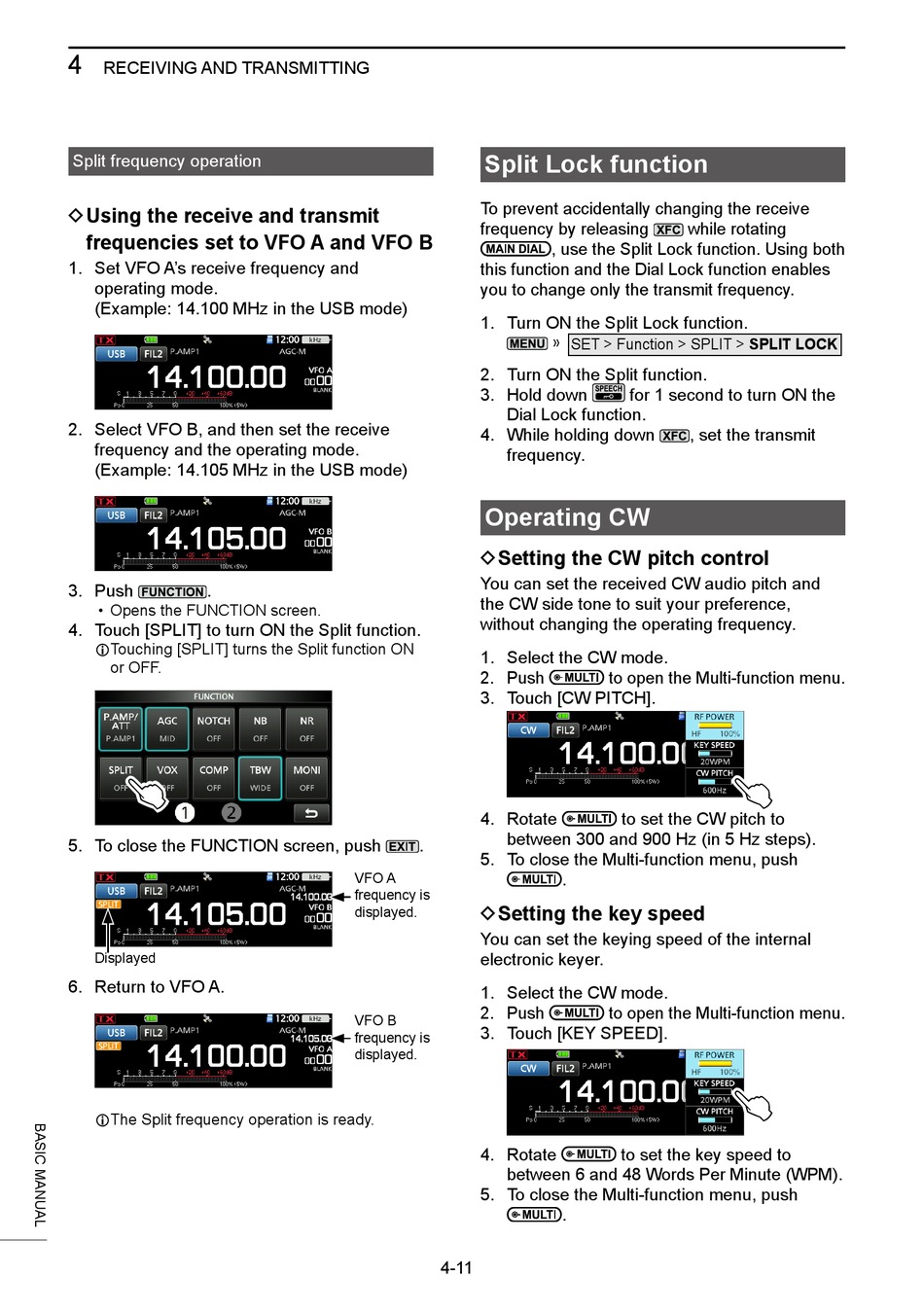

RECEIVING AND TRANSMITTING
Split frequency operation
DUsing the receive and transmit
frequencies set to VFO A and VFO B
1. Set VFO A's receive frequency and
operating mode.
(Example: 14.100 MHz in the USB mode)
2. Select VFO B, and then set the receive
frequency and the operating mode.
(Example: 14.105 MHz in the USB mode)
3. Push .
• Opens the FUNCTION screen.
4. Touch [SPLIT] to turn ON the Split function.
LTouching [SPLIT] turns the Split function ON
or OFF.
5. To close the FUNCTION screen, push
Displayed
6. Return to VFO A.
LThe Split frequency operation is ready.

Split Lock function

To prevent accidentally changing the receive
frequency by releasing
this function and the Dial Lock function enables
you to change only the transmit frequency.
1. Turn ON the Split Lock function.
2. Turn ON the Split function.
3. Hold down
Dial Lock function.
4. While holding down
frequency.

Operating CW

DSetting the CW pitch control
You can set the received CW audio pitch and
the CW side tone to suit your preference,
without changing the operating frequency.
1. Select the CW mode.
2. Push
3. Touch [CW PITCH].
4. Rotate
between 300 and 900 Hz (in 5 Hz steps).
.
5. To close the Multi-function menu, push
VFO A
frequency is
DSetting the key speed
displayed.
You can set the keying speed of the internal
electronic keyer.
1. Select the CW mode.
2. Push
VFO B
3. Touch [KEY SPEED].
frequency is
displayed.
4. Rotate
between 6 and 48 Words Per Minute (WPM).
5. To close the Multi-function menu, push
4-11
while rotating
, use the Split Lock function. Using both
» SET > Function > SPLIT > SPLIT LOCK
for 1 second to turn ON the
, set the transmit
to open the Multi-function menu.
to set the CW pitch to
.
to open the Multi-function menu.
to set the key speed to
.
