4

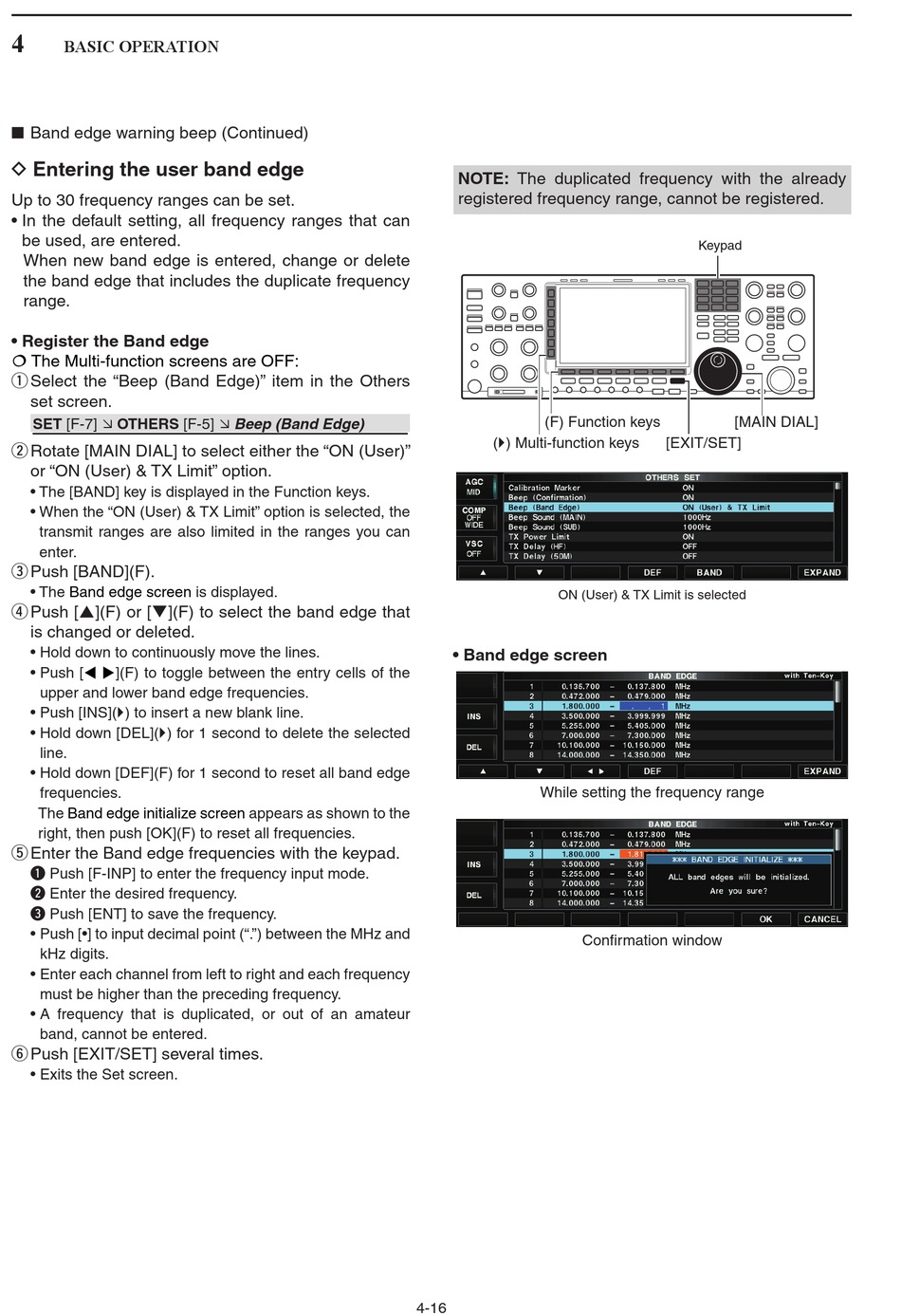

BASIC OPERATION
Band edge warning beep (Continued)
■
D Entering the user band edge
Up to 30 frequency ranges can be set.
• In the default setting, all frequency ranges that can
be used, are entered.
When new band edge is entered, change or delete
the band edge that includes the duplicate frequency
range.
• Register the Band edge
 The Multi-function screens are OFF:
q Select the "Beep (Band Edge)" item in the Others
set screen.
SET [F-7]  OTHERS [F-5]  Beep (Band Edge)
Rotate [MAIN DIAL] to select either the "ON (User)"
w
or "ON (User) & TX Limit" option.
• The [BAND] key is displayed in the Function keys.
• When the "ON (User) & TX Limit" option is selected, the
transmit ranges are also limited in the ranges you can
enter.
e Push [BAND](F).
• The Band edge screen
r Push [p](F) or [q](F) to select the band edge that
is changed or deleted.
• Hold down to continuously move the lines.
• Push [t u](F) to toggle between the entry cells of the
upper and lower band edge frequencies.
• Push [INS]() to insert a new blank line.
• Hold down [DEL]() for 1 second to delete the selected
line.
• Hold down [DEF](F) for 1 second to reset all band edge
frequencies.
The Band edge initialize screen
right, then push [OK](F) to reset all frequencies.
t Enter the Band edge frequencies with the keypad.
q Push [F-INP] to enter the frequency input mode.
w Enter the desired frequency.
e Push [ENT] to save the frequency.
• Push [•] to input decimal point (".") between the MHz and
kHz digits.
• Enter each channel from left to right and each frequency
must be higher than the preceding frequency.
• A frequency that is duplicated, or out of an amateur
band, cannot be entered.
Push [EXIT/SET] several times.
y
• Exits the Set screen.
is displayed.
appears as shown to the
NOTE: The duplicated frequency with the already
registered frequency range, cannot be registered.
(F) Function keys
() Multi-function keys
ON (User) & TX Limit is selected
• Band edge screen
While setting the frequency range
Confirmation window
4-16
Keypad
[MAIN DIAL]
[EXIT/SET]
